Channel balance shoe does not match

Question

Hi,

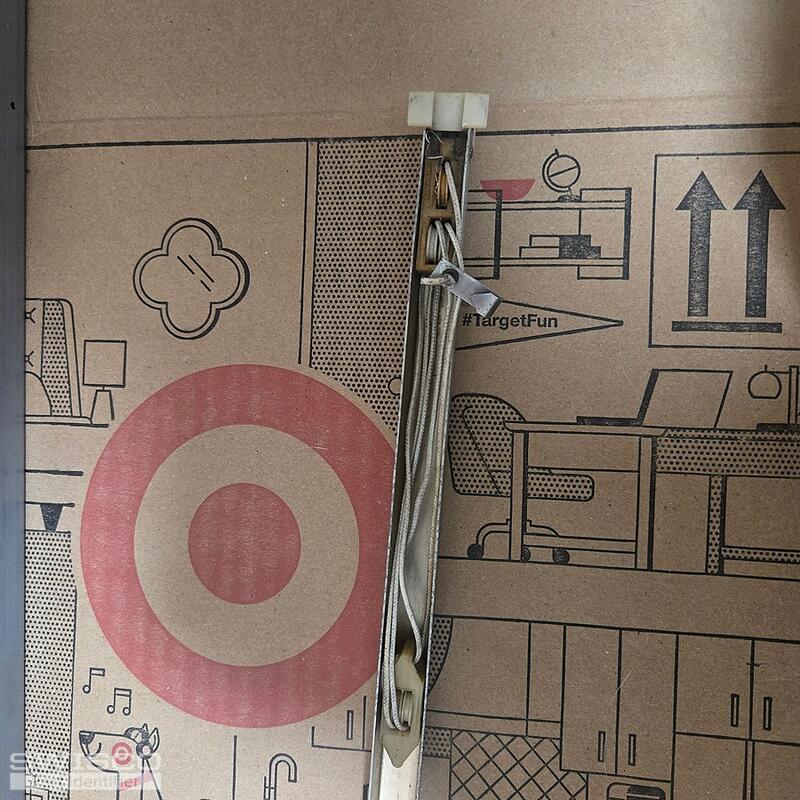

I recently brought the 26" 380 series channel balance 2530 stamp. When i compared both balance the original(light grey) balance shoe is slightly long with a point and the 380 (darker grey) shoe is slightly shorter with no point. Which series or shoes would match the orginal one?

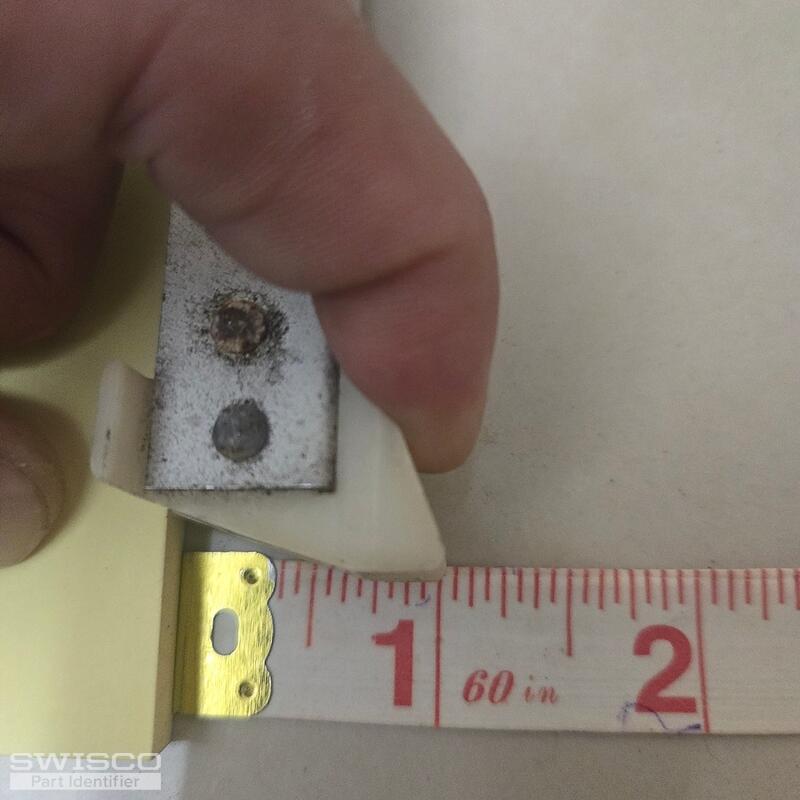

My channel balance measurement is 26" in length, 1/2" width, top is 1/2" with no wing and the shoe is 1" with wing. The pulley system are the same.

Jasmine · Accepted Answer

Hello,

Thanks for your post! It sounds like you may need the S350-26 with a wingless top and wingless bottom shoe. The depth measurement of the shoe should be 1-3/32" which is just slightly larger than 1".

Take a look at the diagram below for reference.

Close up view of the S350 balance shoe.
