Channel balance, slide up window, 26-4 AN5 CMC 8, 27 inches

Question

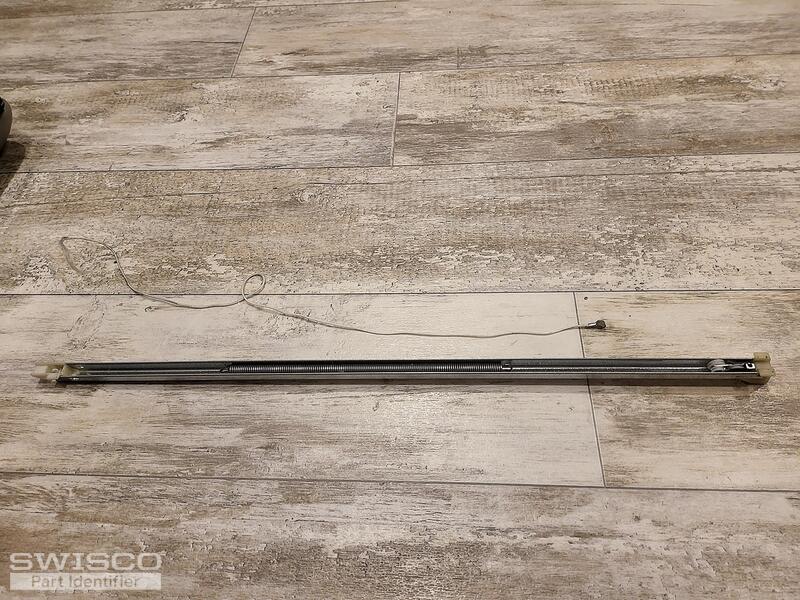

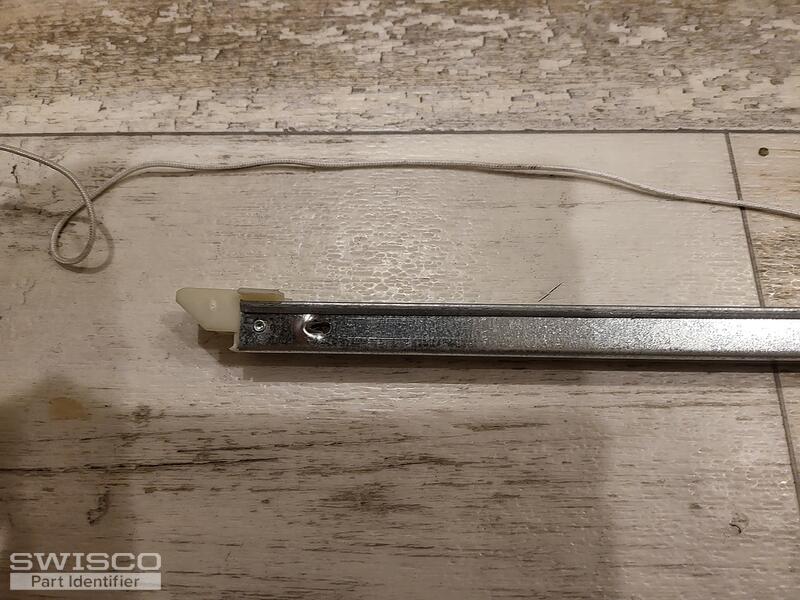

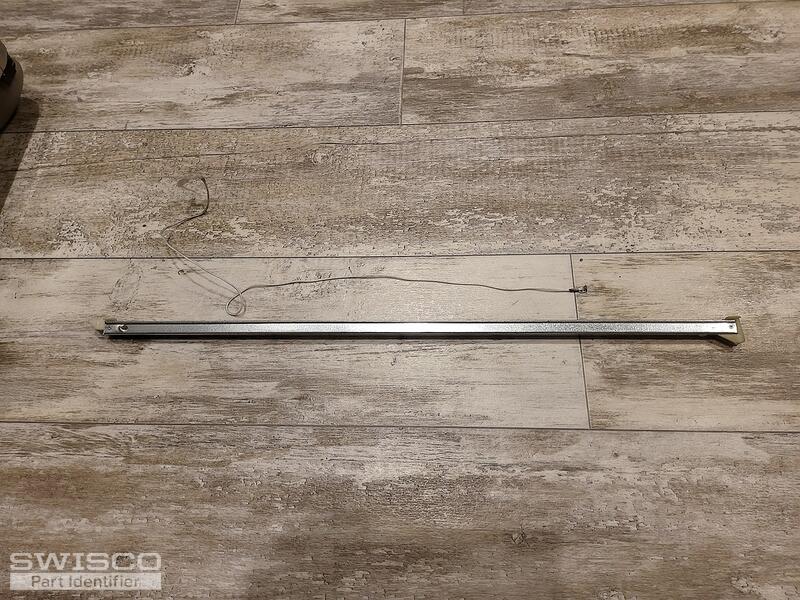

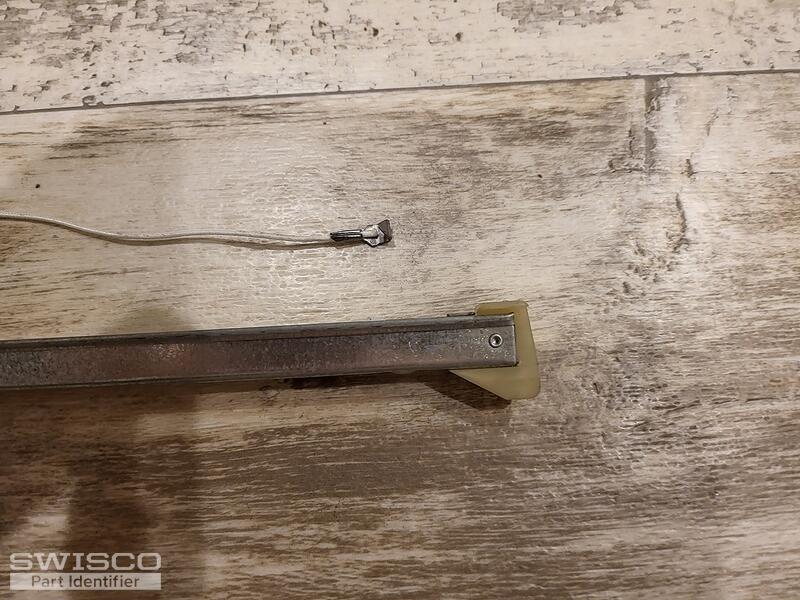

I am looking for a replacement part for the channel balance of my slide-up window. Please help me to identify this part. I included pictures of both ends (one plastic part may be broken, not really sure), and the hook. The length is 27 inches. The marking number is 26-4 AN5 CMC 8. Please let me know if you have the part and how much it costs. Thank you.
Brandon

Emily · Accepted Answer

Hi, Brandon.

I recommend our S380-27 or S380-27 channel balance, based on what I see here. They may look the same but you'll notice the Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. You'll need to measure as shown in the image below to see which one matches up the best. You will also need to choose the 2640 strength option.

Comparison of the S378, S380 and S385 balance shoes.
