Channel balance spring

A quick learner from Mcdonough GA 30253 says:

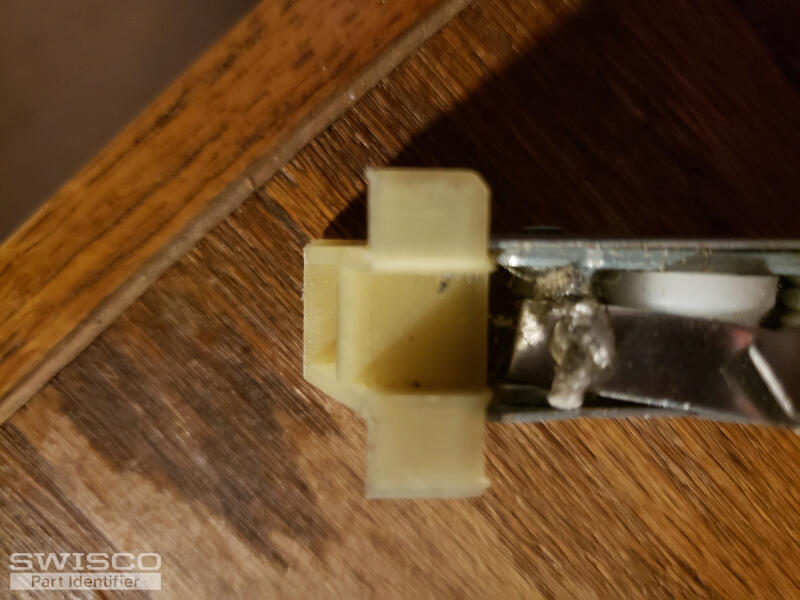

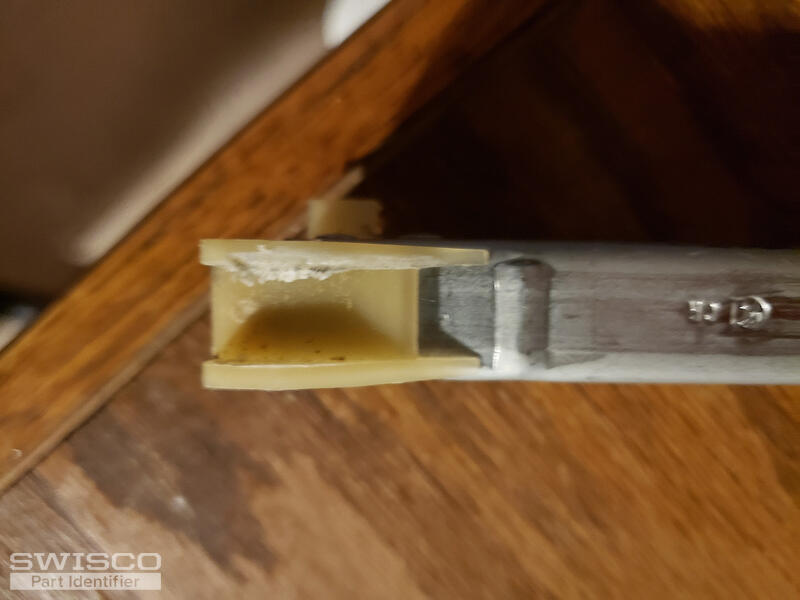

I need 6 of these springs 25" long number on the side is 2430
Thumbnail of the uploaded file named 20210802_080155[1].jpg
Thumbnail of the uploaded file named 20210802_080121[1].jpg
Thumbnail of the uploaded file named 20210802_080114[1].jpg
Thumbnail of the uploaded file named 20210802_080105[1].jpg
Thumbnail of the uploaded file named 20210802_080056[1].jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-25 or S385-25 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2430 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


1
S380-25 : 25
25" Series 380 Channel Balance
S380-25
$9.64
VIEW >
S385-25 : 25
25" Series 385 Channel Balance
S385-25
$9.64
VIEW >
