Channel balance and sash guide replacement

A quick learner from Plaistow, NH says:
Please help me to find the correct channel balance and corner piece (top winged 27mm by 18 by 30mm)
Thumbnail of the uploaded file named 20200304_081302.jpg
Thumbnail of the uploaded file named 20200304_081623.jpg
Thumbnail of the uploaded file named 20200304_084536.jpg

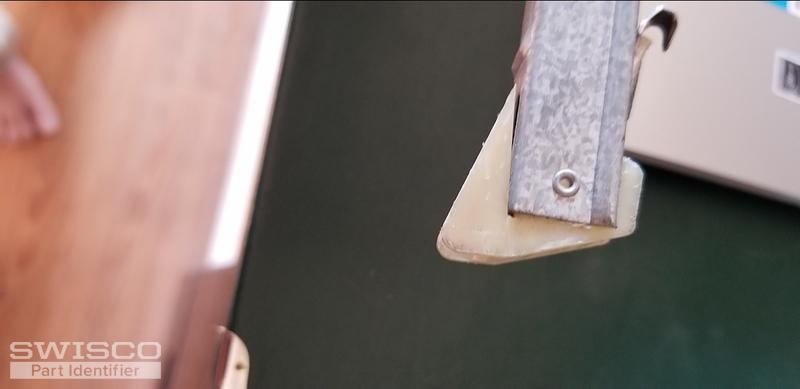

Thumbnail of the uploaded file named 20200304_084531.jpg
Thumbnail of the uploaded file named 20200304_084528.jpg
Profile picture of Casey
Casey from SWISCO responded:

Let's start with your top sash guide and go from there. Check out our 18-052 sash guide. Review our measurement specifications and see if they match up to yours. As for your balance, you're only showing us one side of the nylon fittings. We will need to see a photo showing the nylon fitting on the opposite end as well, in order to determine which replacement balance to recommend. Thank you.

A quick learner from Plaistow, NH says:
Additional pictures

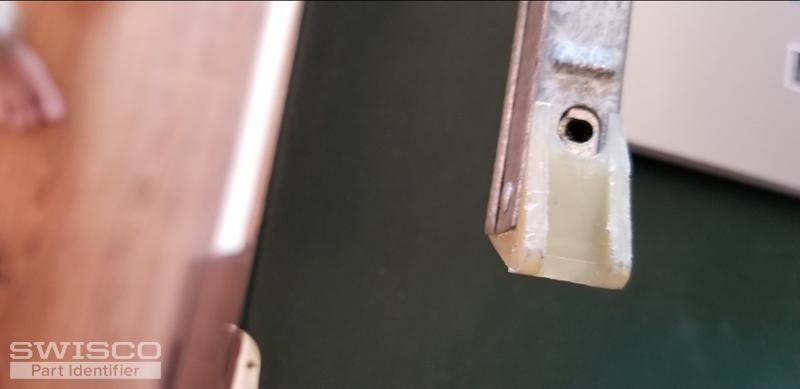

Thumbnail of the uploaded file named 20200304_084528.jpg

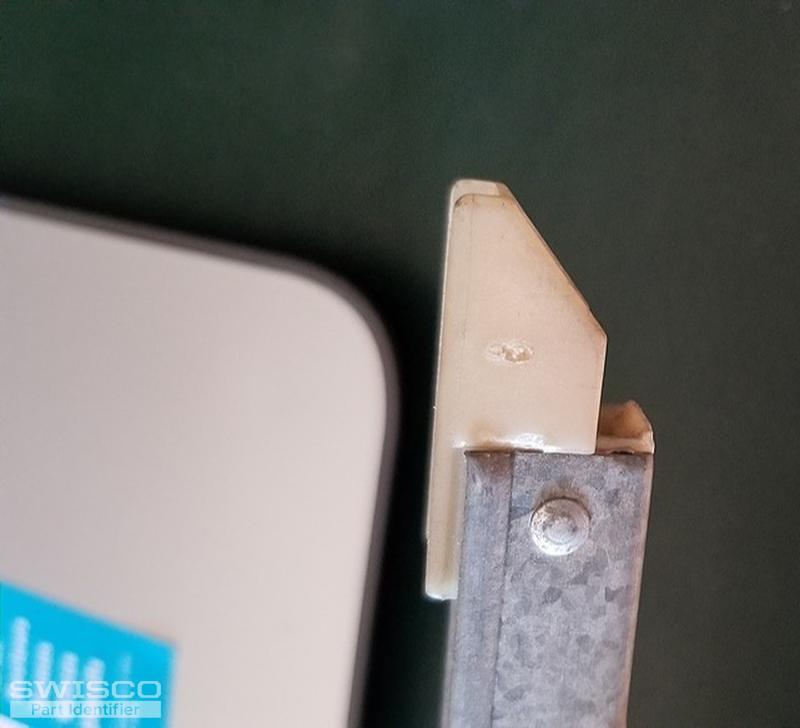

Thumbnail of the uploaded file named 20200304_084522.jpg

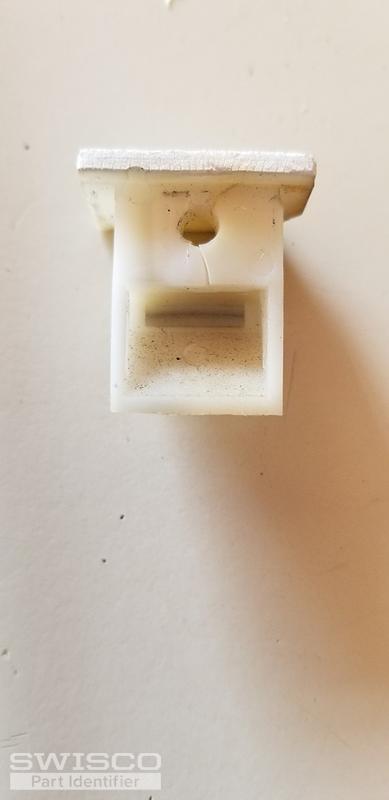

Thumbnail of the uploaded file named 20200304_081644.jpg
Thumbnail of the uploaded file named 20200304_081638.jpg

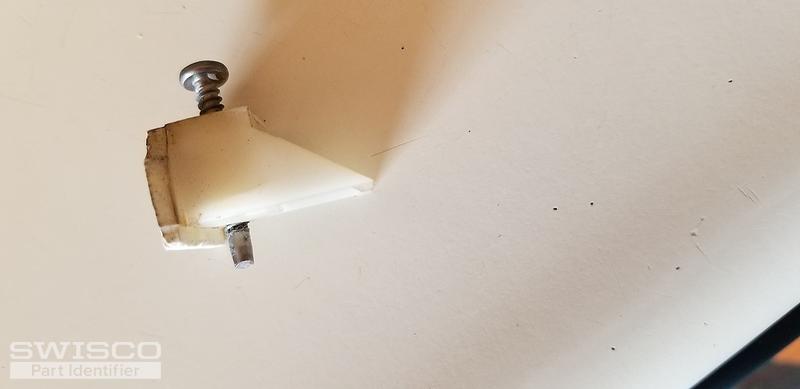

Thumbnail of the uploaded file named 20200304_081608.jpg
A quick learner from Plaistow, NH says:
One more picture
Thumbnail of the uploaded file named 20200304_081638.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for the additional photos. Getting a closer look at your top sash guides, I did not have much luck locating an exact match. So, I have placed a list of a few different replacement guides on this page for you to look over. As for your balance, have a look at our S390-25. This comes complete with a 19-002 balance top and 15-001 bottom balance shoe. We encourage you to compare the measurements of your nylon fittings with ours to confirm whether or not this balance will work for you. If it is correct, then you can go with the 2430 option that supports a sash weight of 15-19 pounds.

18-009 : 5/8
5/8" Top Sash Guide
18-009
$0.91
VIEW >
18-052 : Top Sash Guide, 3/4
Top Sash Guide, 3/4"
18-052
$1.99
VIEW >
18-138 : Top Sash Guide, 3/4
Top Sash Guide, 3/4"
18-138
$3.84
VIEW >
S390-25 : 25
25" Series 390 Channel Balance
S390-25
$9.64
VIEW >
