Channel balance and top retainer clips.

Quick Learner from Palm Bay Florida

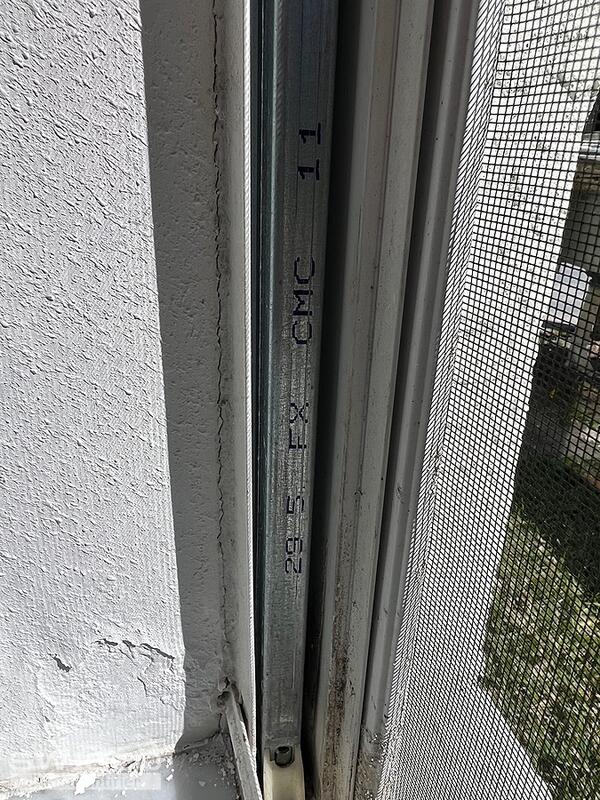

Looking for a replacement channel balance and the broken top window clips.
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! Your window balances can be replaced with either the S378-30S380-30 or the S385-30. You'll need to measure the depth of your shoe to confirm which of these is the correct replacement; see the diagram below for reference.

You can likely use the 2950 stamp option but it may be a good idea to double check that you sash weighs 28 to 32lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

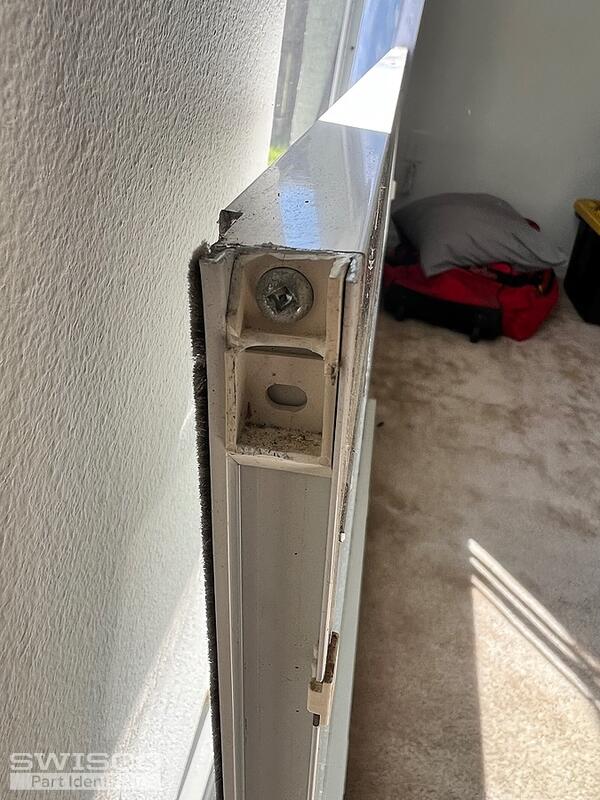

The broken clips at the top corners of the window sash are the top sash guides. Yours looks like it may have a similar design to the 18-166 but you'll need to carefully look over the dimensions to confirm.

Detail of 18-166
Detail of 18-166

Profile view of 18-166
Profile view of 18-166

Quick Learner from Palm Bay Florida
Excellent. The 380 & 166 is what I had ready to go in the cart. Thank you much!
joe
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Awesome! I'm glad we were able to provide you with the replacements you need. Be sure to take a look over the installation videos below if you find you have any questions while completing your repairs.

Have a great weekend!
