Channel balance and top sash guide

A home owner from Florida says:

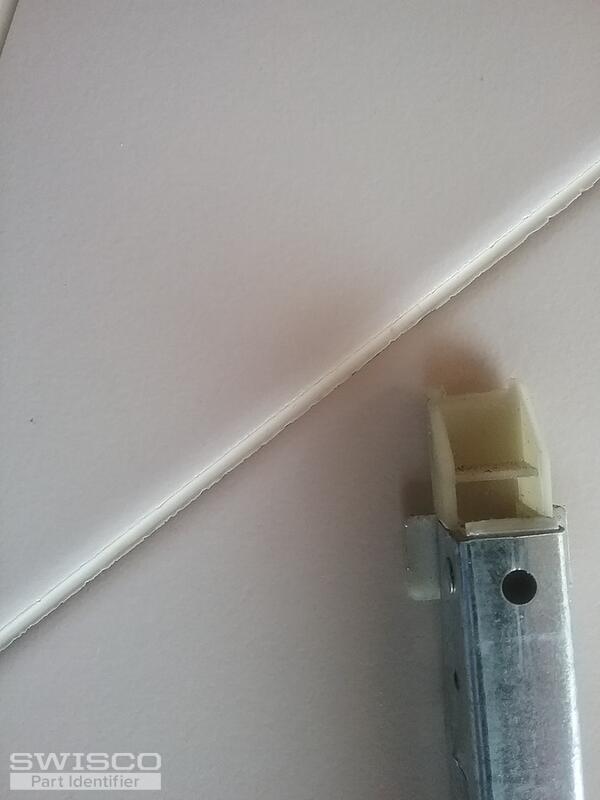

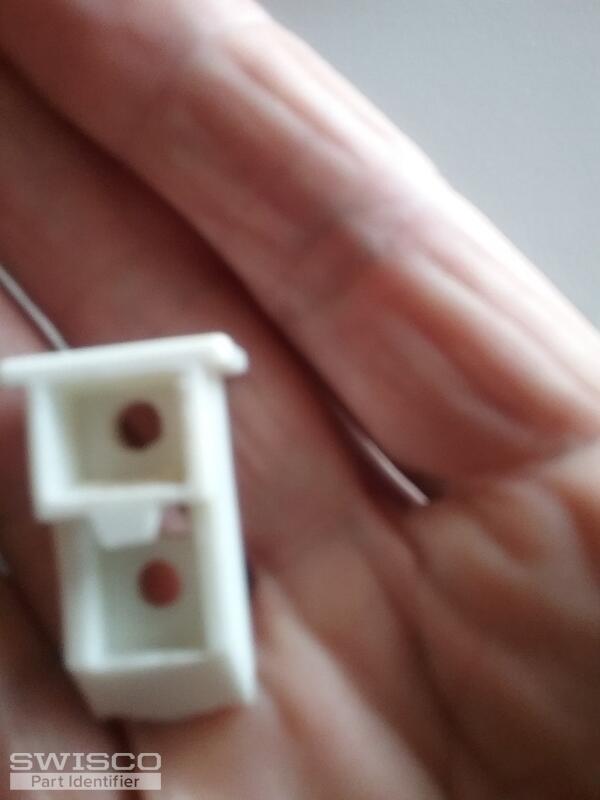

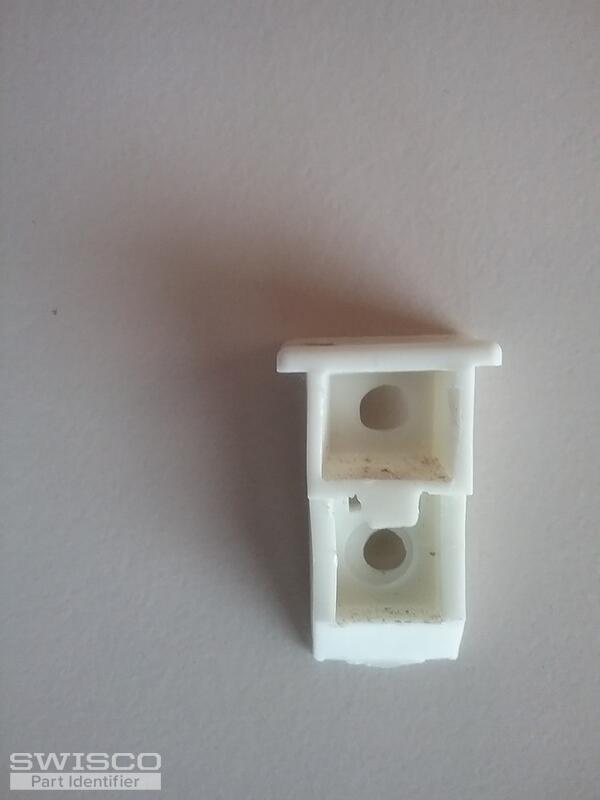

Picture of 30 inch channel balance and top sash guide. They are lawson window from 2005.window size 30 x 51 weight 38 to 39 lbs. And other window is 36 x 34 weight 28 to 29 lbs.
Thumbnail of the uploaded file named 16208449567981234509093.jpg
Thumbnail of the uploaded file named 16208450185521493311032.jpg
Thumbnail of the uploaded file named 1620845070641204912135.jpg
Thumbnail of the uploaded file named 16208451053702013751760.jpg
Thumbnail of the uploaded file named 16208451896871491050222.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to follow the  chart on the balance product page that explains how to choose your option based on the sash weight.

As for the top sash guide, you can start by comparing the dimensions of our 18-147 and 18-165 to yours. If your measurements differ, please write out your exact dimensions and we can go from there. Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from Florida says:
Need s-380 and I understand weight of window.

Top sash guide I have picture with measurement in photo.
Thumbnail of the uploaded file named 1621261635427521605061.jpg
Profile picture of Casey
Casey from SWISCO responded:

Your new photo makes me think that the 18-166 might be a better option. I'd recommend double-checking your dimensions against the ones listed on our product page to confirm if this could work for you. Thanks for posting!
