Channel balances

Handy Person from Tampa, FL

Nov 20, 2025 1:19 pm

Hi,

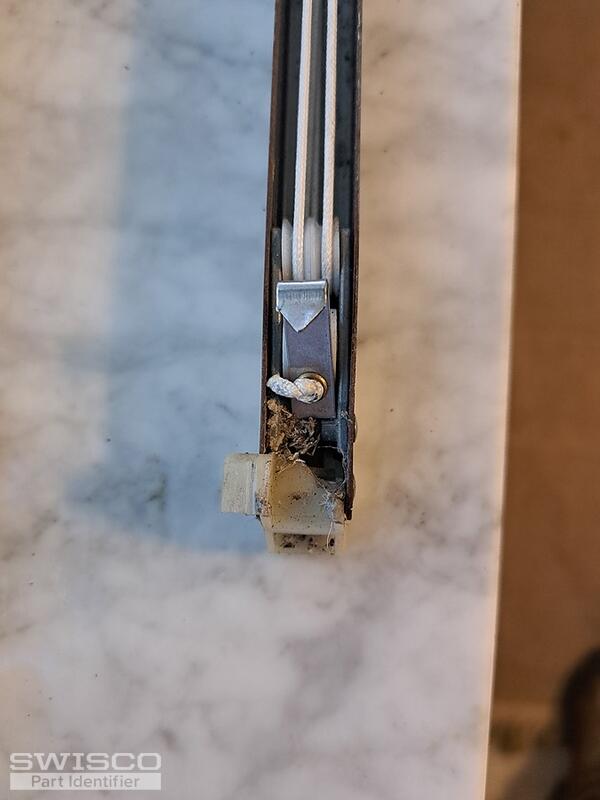

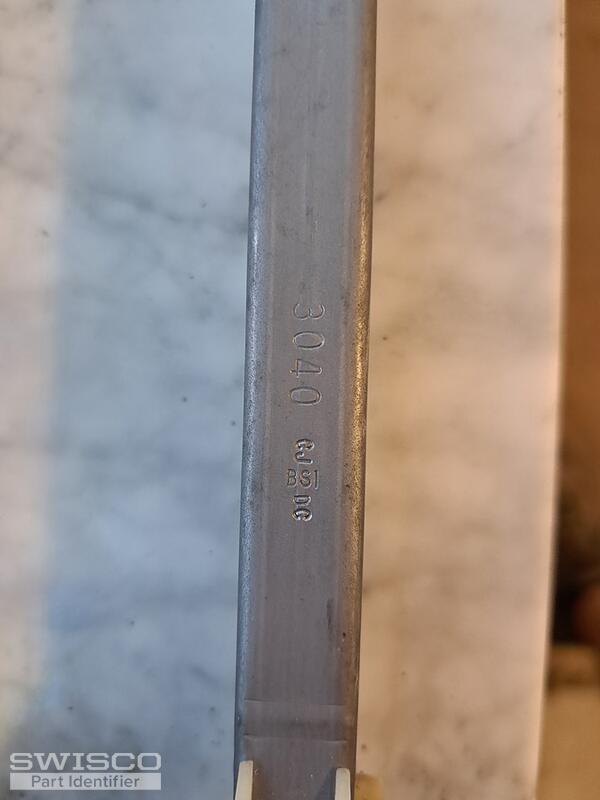

I want to confirm that I'm ordering the correct channel balances for a Lawson window. These balances are 31" long with a 1" bottom shoe. The window sash weighs 25# and has the number "3040" stamped on it. Please see photos.
Thank you,
Tony

5 user uploaded images

2 Replies

Jasmine from SWISCO

Nov 21, 2025 2:49 pm

Thanks for your post! You'll need the S380-31 to replace your balances. It has a 1" shoe depth like yours. You'll need the 3040 stamp option. It will support a sash weighing between 23 to 28lbs.

Close up view of the S380 balance shoe.
