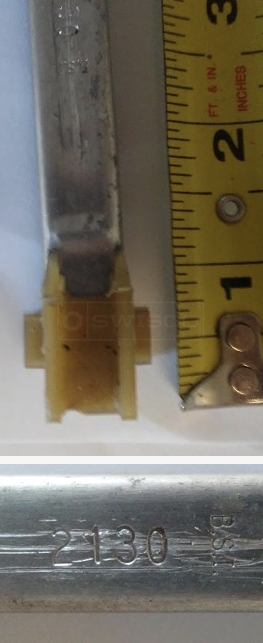

Can you help me find what I need for my windows. The channel balances are 22" long x 9/16" wide x ~11/16" deep. They are stamped B.S.I. 2130. I believe I need the spring, string, and other accessories too. When I open the windows, they will not stay up. Thank you.
Brian
4 Replies
Tom from SWISCO
Feb 21, 2018 10:22 am
Thanks for posting, Brian. We can definitely help. All of our balances come fully assembled and ready to install out of the box; this includes the nlyon attachments, spring, and string.
The only issue is, I can't tell what you have based on your photos. I can only see the bottom shoe, which looks like it could be either our 15-005 or 15-004 depending on its depth. That narrows it down a little, but there are still many possibilities. Can you confirm for me whether you have the 15-005 or 15-004? You will need to measure your shoe's depth to confirm. Can you also show me a picture of the top attachment?
Home Owner from Florida
Feb 23, 2018 8:19 pm

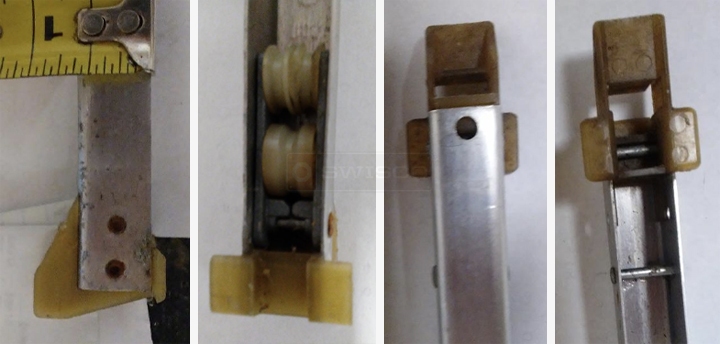

Here are some more pics. Not sure if I have 005 or 004?
Tom from SWISCO
Feb 27, 2018 12:15 pm
It looks like 15-004 just at a glance, but you should measure it to be sure. We have detailed dimensions on our site. If I'm right, I'd consider our S385-22 as a replacement balance.
