Channel balances

Quick Learner
Oct 9, 2024 3:38 pm

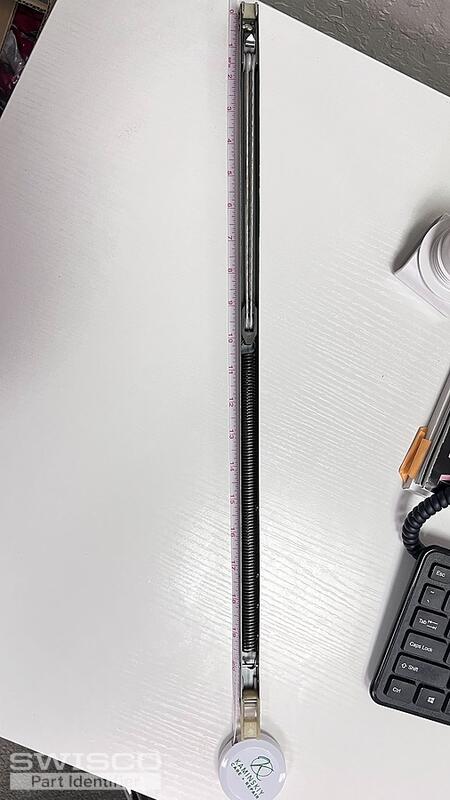

Hello, we need help identifying this channel balances that match these dimensions.
5 user uploaded images
2 Replies

Lauren from SWISCO
Oct 14, 2024 9:56 am


Hello, thank you for posting,
It appears you have either the Series 351, with a 15-002 bottom attachment, or Series 390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

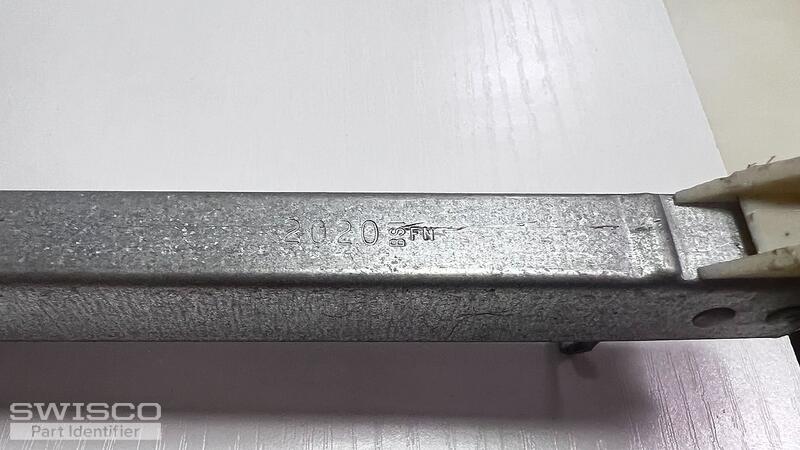

The length of the metal channel excluding the nylon attachments should measure 21" long and you will need a 2020 stamp option. Please review and let us know if you have any additional questions!

Comparison of the S351 and S390 balance shoes.
