Channel ballance : SWISCO.com

Home Owner from Jackson California

Mar 25, 2025 7:54 pm

Hi, I'm looking to replace my channel balances. Not sure if the letters make a difference. I have a 26 4 KO and 26 4 JO that was in the same window. Not sure if this makes a difference. The sash weighs 23.6 lb

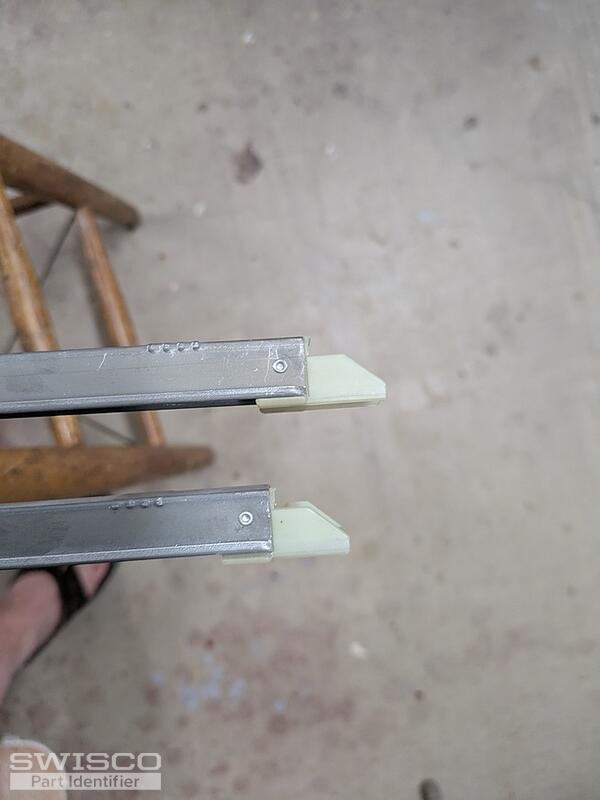

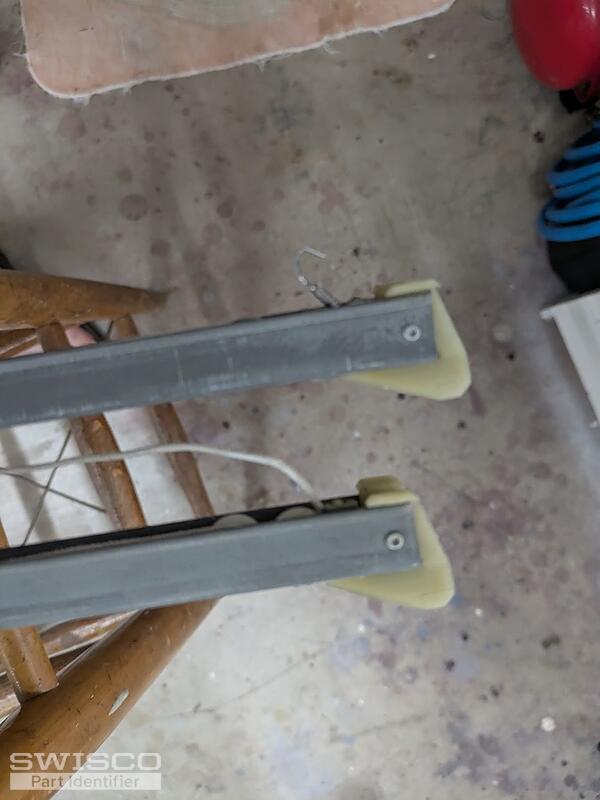

5 user uploaded images

4 Replies

Jasmine from SWISCO

Mar 26, 2025 12:42 pm

Hello,

Thanks for your post! I've almost gotten your balances narrowed down, there is just one more thing I'll need to see the confirm the correct replacement. May I see a photo of the spring and pulley inside the balance?

Please feel free to reach out with any other questions you might have.

Home Owner from Jackson California

Mar 26, 2025 1:06 pm

Thanks Jasmine

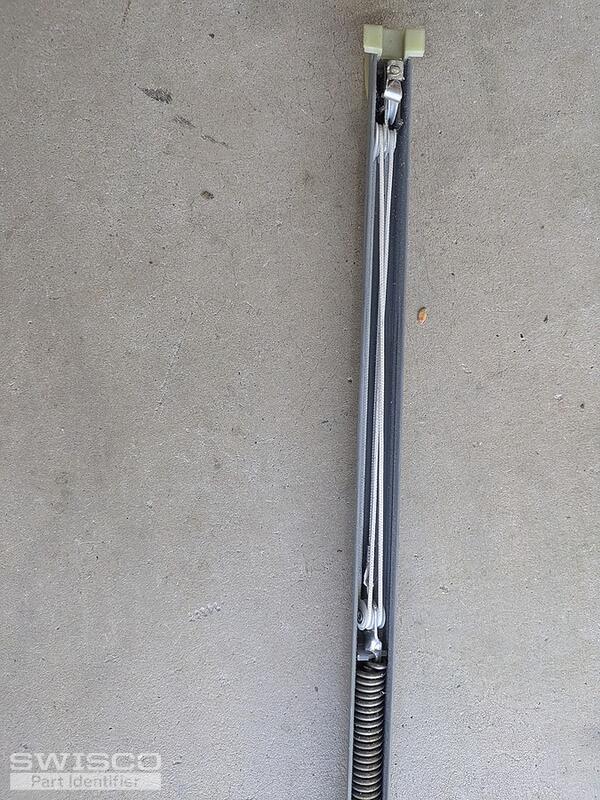

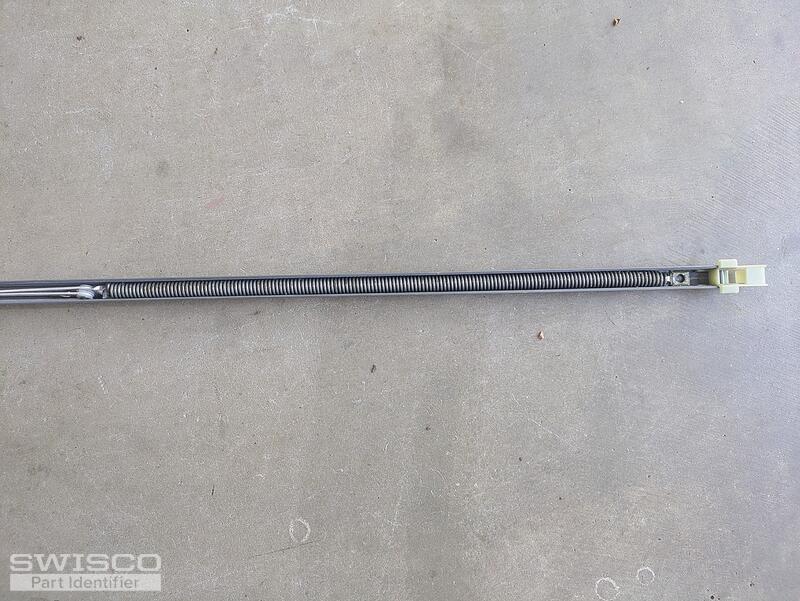

2 user uploaded images

Jasmine from SWISCO

Mar 26, 2025 2:00 pm

Thanks for the additional photos. Your window balances can be replaced with the S378-27, the S380-27, or the S385-27. To determine which of these is the correct series, you'll need to confirm your shoe depth; see the diagram below for reference.

You can select the 2640 stamp option.

Comparison of the S378, S380 and S385 balance shoes.
