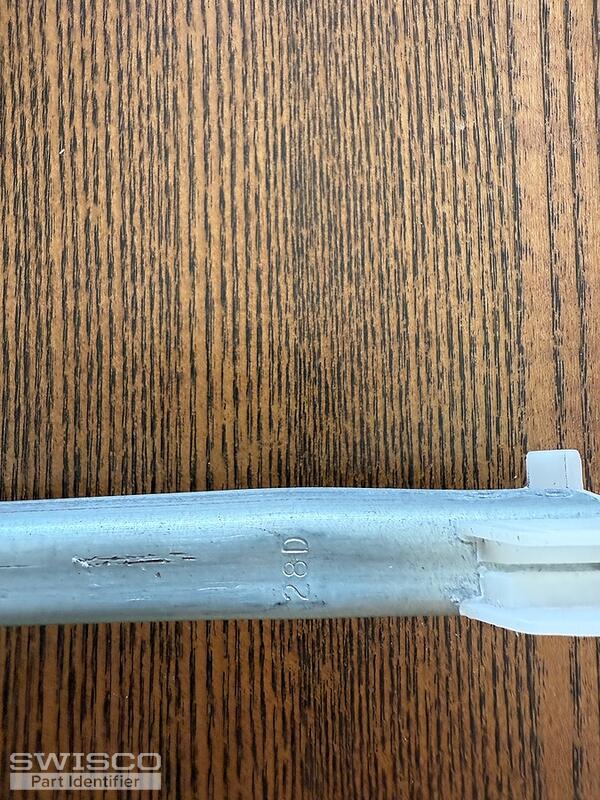

Channel block & tackle window balance spring. Two per window. The channel measurement is 29 however the oart ia stamped 28D.
thanks for your help
Channel block & tackle window balance spring

Quick Learner from Florida
Dec 23, 2024 1:59 pm
5 user uploaded images
2 Replies

Lauren from SWISCO
Dec 26, 2024 3:44 pm


Hello, thank you for posting,

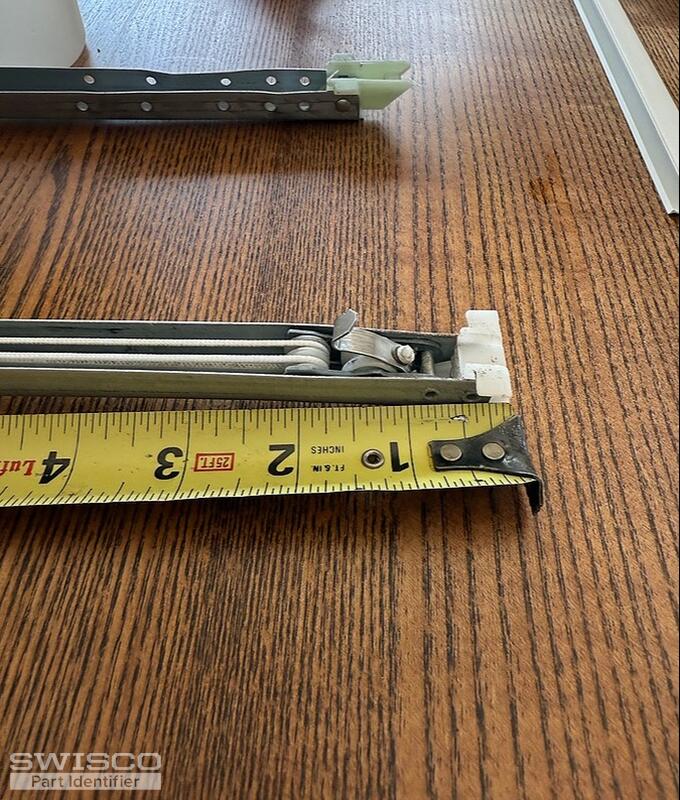

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You will need a 29" balance and the original 28D stamp should translate to a 2840 stamp option that can support a 23 to 28 pound window sash. We recommend weighing the sash to confirm before purchasing. Let us know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.
