Channel guide

Quick Learner from Massachusetts
This is a channel guide for a tilt window.
1 user uploaded image
8 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. This looks potentially like the top attachment of a window balance. I am afraid I cannot narrow this down further without more information. Can you send us a clear picture of this fitting, as well what it attaches to? Removing the item from the window would be best. We'll do our best to narrow this down from there.

Quick Learner from Massachusetts
This is the part that attached to the top window at the pivot post. The lower part of the plastic broke off. It did fit over the post on the window the fit into the channel.
Bob
Bob from SWISCO
SWISCO
Expert

That definitely sounds like a balance shoe, but I can't really tell you much more without more information. I will need the photos I requested in my previous post. If possible, please make sure that the hardware you show us is undamaged. You can check an identical window in the house with the same hardware as a reference.

Quick Learner from Massachusetts

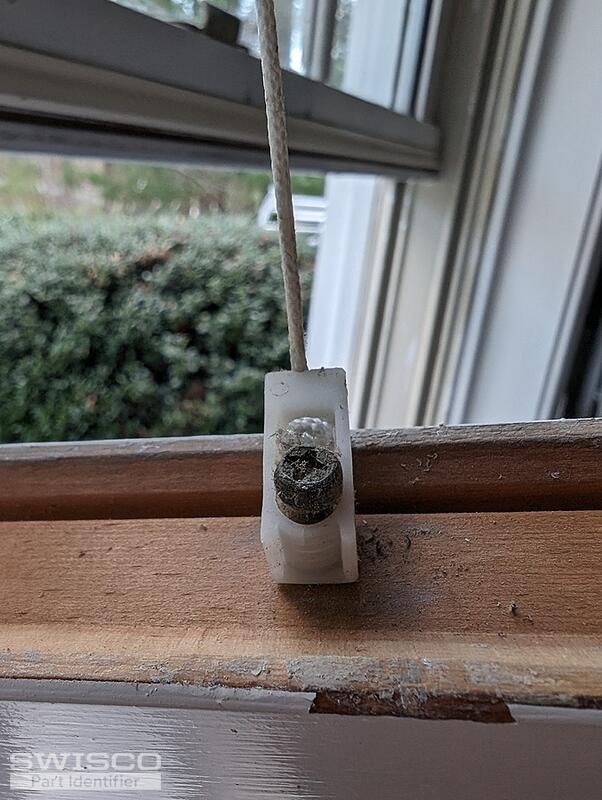

Here are the pictures. I thought I had attached them earlier
Thank you
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thank you! That is a huge help. That appears to be a match for our 15-159. Look it over and see what you think!

Alternate image for 15-159
Alternate image for 15-159

Quick Learner from Massachusetts
I think that's it. Should I go to the site to order?
Bob
Bob from SWISCO
SWISCO
Expert

Yes, all orders can be placed directly on our site at your convenience. I've linked to the store page for the recommended product in my previous response.

Thanks for considering us and please feel free to reach out if you had any questions.
