Channel non tilt

Quick Learner from Land O Lakes FL

Dec 8, 2020 9:53 am

This is for a window that was put in my home back in 1998. It has a part number on the channel labeled 2330. It is spring assisted pulley. What channel part do I need? The entire pulley rope has dry rotted and broke.

7 Replies

Quick Learner from Land O Lakes FL

Dec 8, 2020 9:54 am

Model window is from Norandex

Bob from SWISCO

Dec 10, 2020 10:16 am

Hello there. I am confident we can help, but that number only tells us the strength of the balance. To know its identity, please show us the attachments or nylon fittings on either end. We will do our best to help from there. Many thanks.

Quick Learner from Land O Lakes FL

Dec 10, 2020 4:24 pm

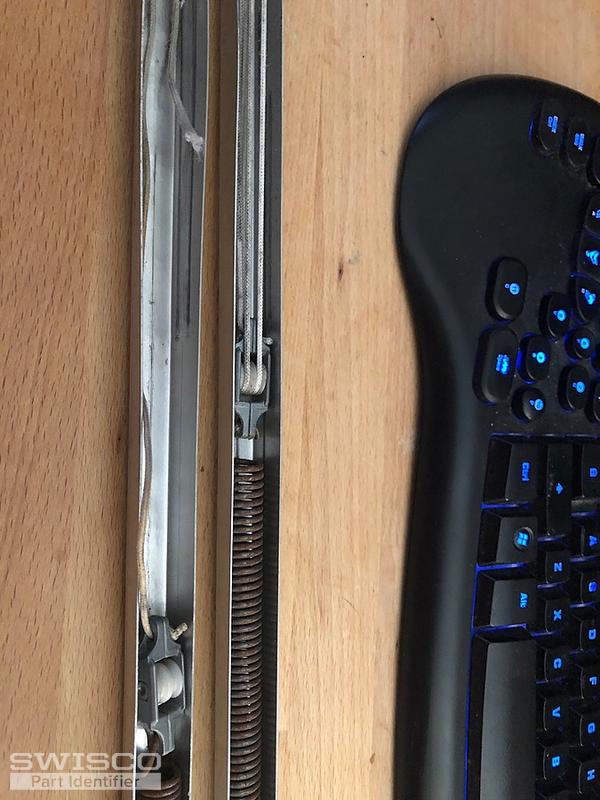

okay here you go...

3 user uploaded images

Bob from SWISCO

Dec 11, 2020 8:59 am

We're getting there. I need to see the fitting on the other end of the metal channel as well. From there I should be able to narrow this down for you.

Quick Learner from Land O Lakes FL

Dec 11, 2020 10:16 am

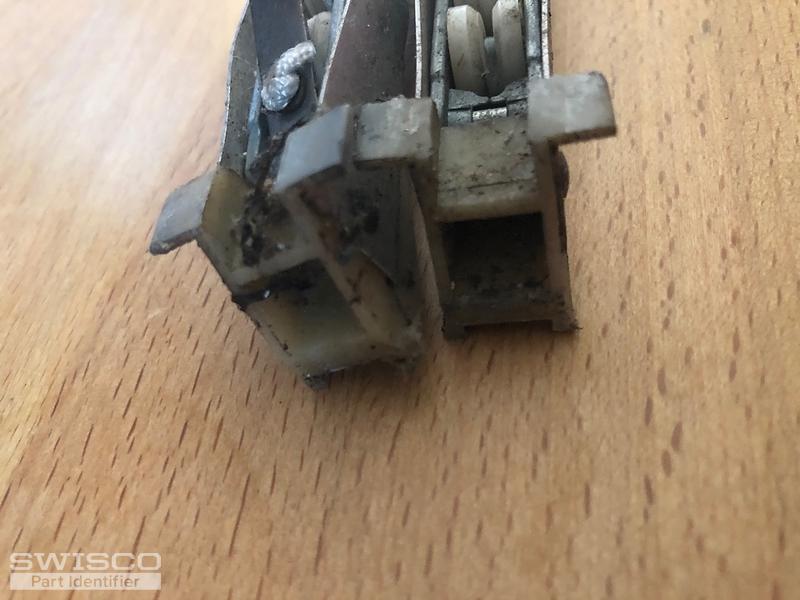

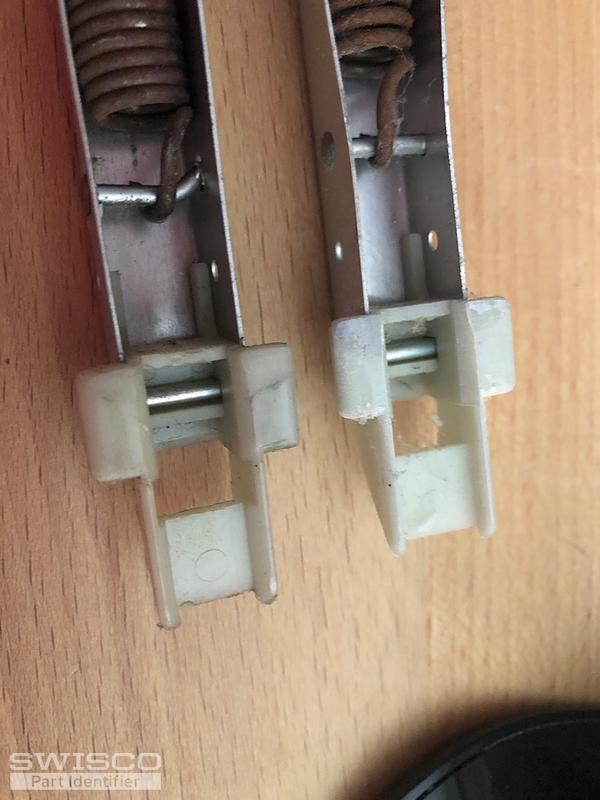

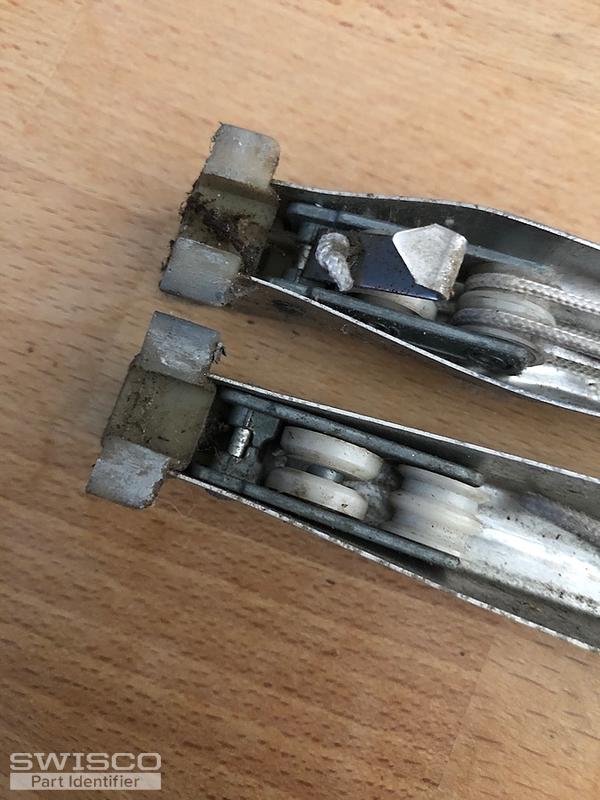

ok here ya go...Does this help?

4 user uploaded images

Bob from SWISCO

Dec 11, 2020 3:04 pm

Thanks for posting. Assuming the metal channel is 24" long, then you need the S380-24 or S385-24. The difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You will need a stamp option of 2330.
