Channel replacement

Start a new Discussion

Handy Person from Florida

Nov 5, 2021 3:19 pm

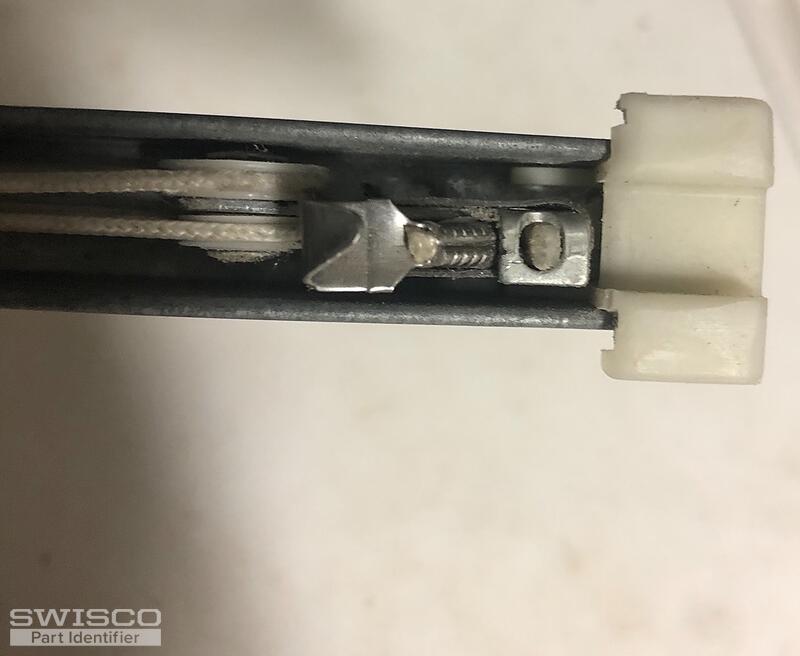

Please identify this part, and let me know cost per piece.

Markings on piece: 29 5 JT CMC 2

Thank you,
Chris

4 user uploaded images

4 Replies

Casey from SWISCO

Nov 9, 2021 1:59 pm

Hello,

We'd be happy to help but we would need to see the fitting attached to the opposite end of the metal channel as well to identify your balance. Thank you!

Handy Person from Florida

Nov 11, 2021 5:50 pm

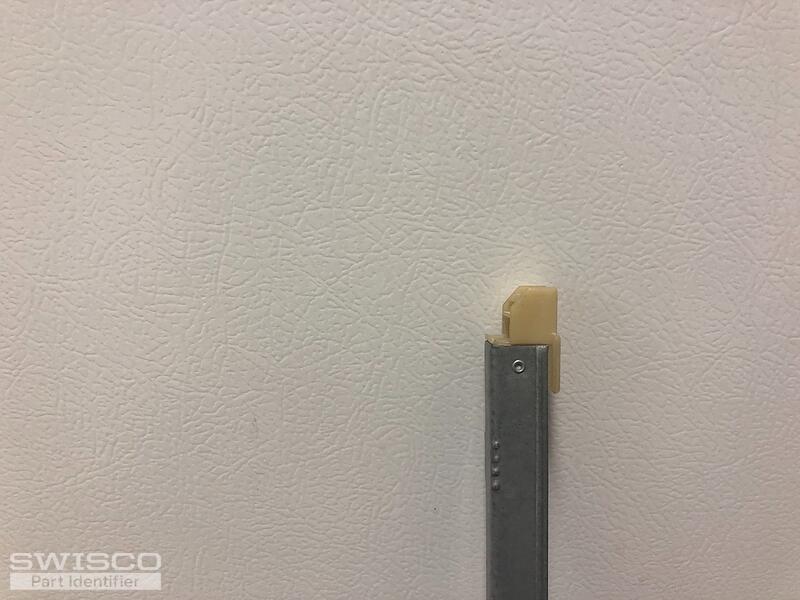

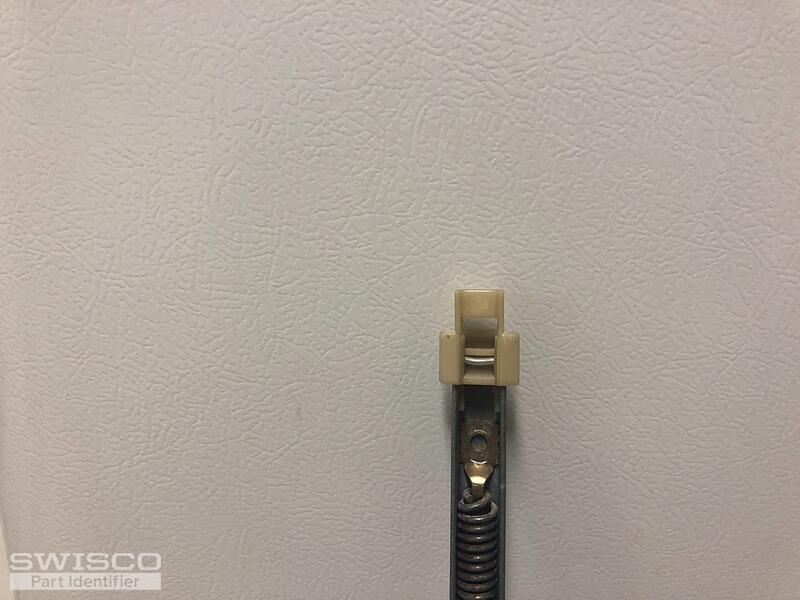

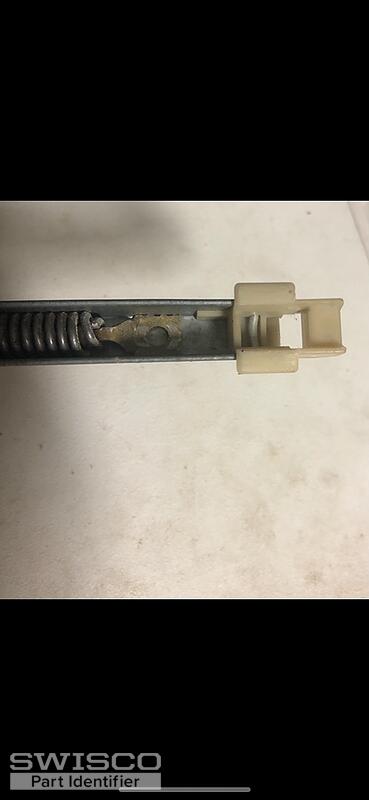

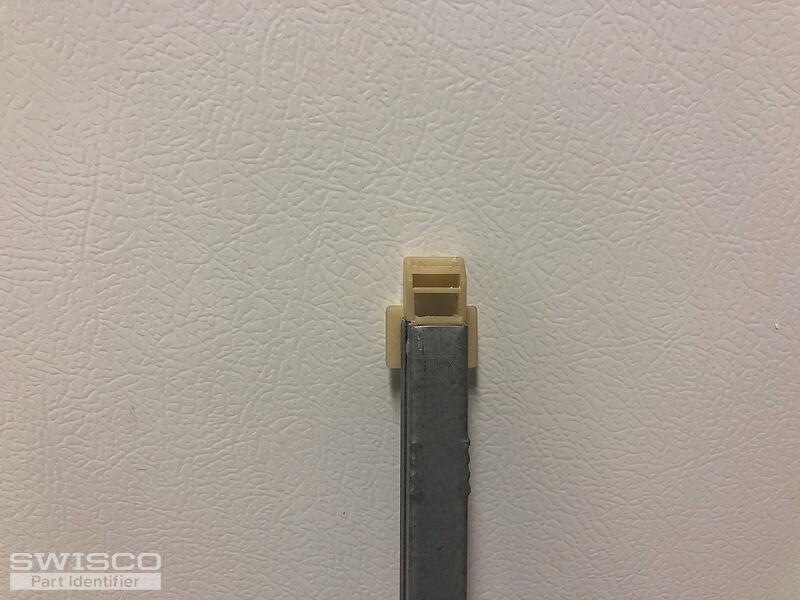

Ok thank you, hope these help.

4 user uploaded images

Casey from SWISCO

Nov 12, 2021 8:30 am

Great, with this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2950 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
