Channel replacements

A home owner from Portland, OR says:

Channel has a stamp that reads 185 HQ Caldwell. We want to be sure we're ordering the correct part. We need two.

Thanks!

Ryan

Thumbnail of the uploaded file named 1WindowChannel_RB.jpg
Thumbnail of the uploaded file named 2WindowChannel_RB.jpg
Thumbnail of the uploaded file named 3WindowChannel_RB.jpg

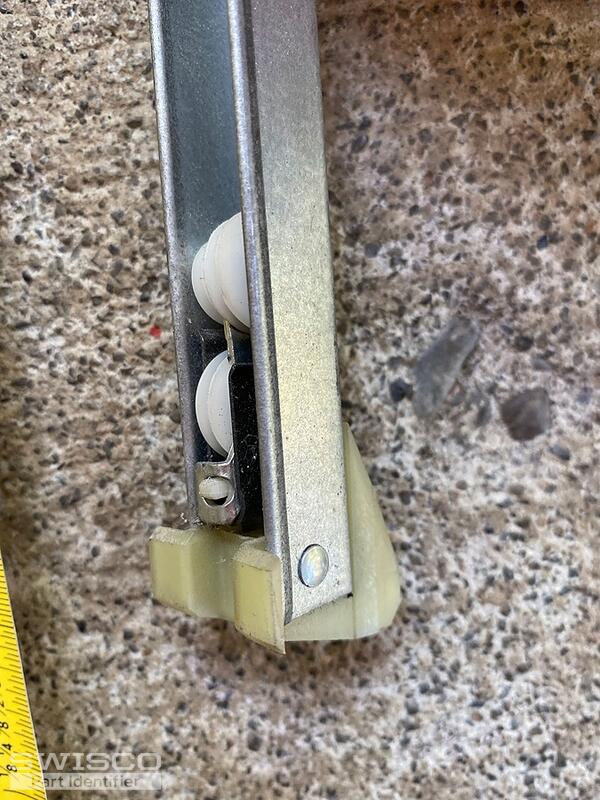

Thumbnail of the uploaded file named 4WindowChannel_RB.jpg

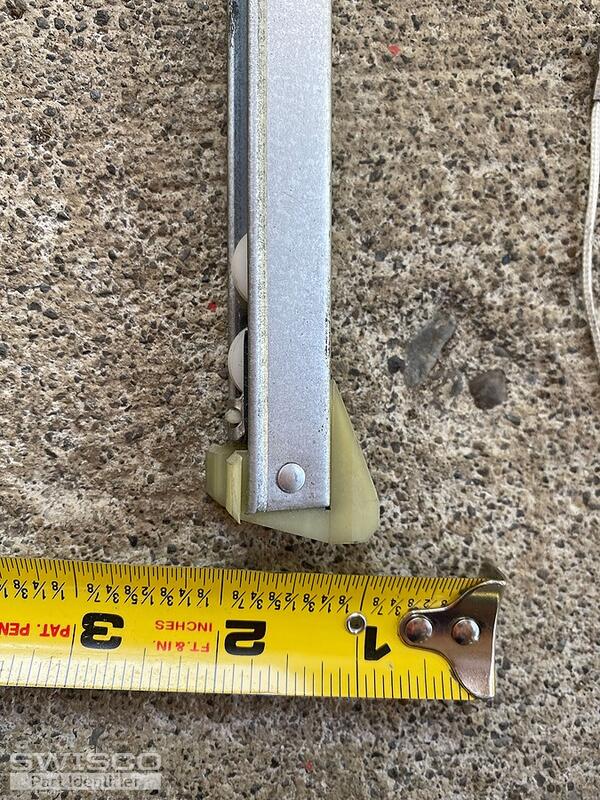

Thumbnail of the uploaded file named 5WindowChannel_RB.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi, Ryan.

It appears you have either our S380-19 or S385-19 channel balance. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. Measure as shown in the image below to determine the best match. You will also need to choose the 1850 strength option, based on your 18 5 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
