Clip studded bracket for sash botom

Home Owner from Reno nv

Sep 26, 2026 7:07 pm

The 6 inch flat bracket looks like 39-508 but is 6 inches in length . The stud rides on a black worn slide. In addition the 10 inch flat connector attaches to a stud midway on the bracket. I need the bracket and the black glider that moves across the inside of the window that is controlled by the newly recivrd crank.

7 Replies

Bob from SWISCO

Sep 27, 2026 1:55 am

Hey there. Can you show us photos of the hardware in question? We'll do our best to help from there.

Home Owner from Reno nv

Sep 27, 2026 10:07 am

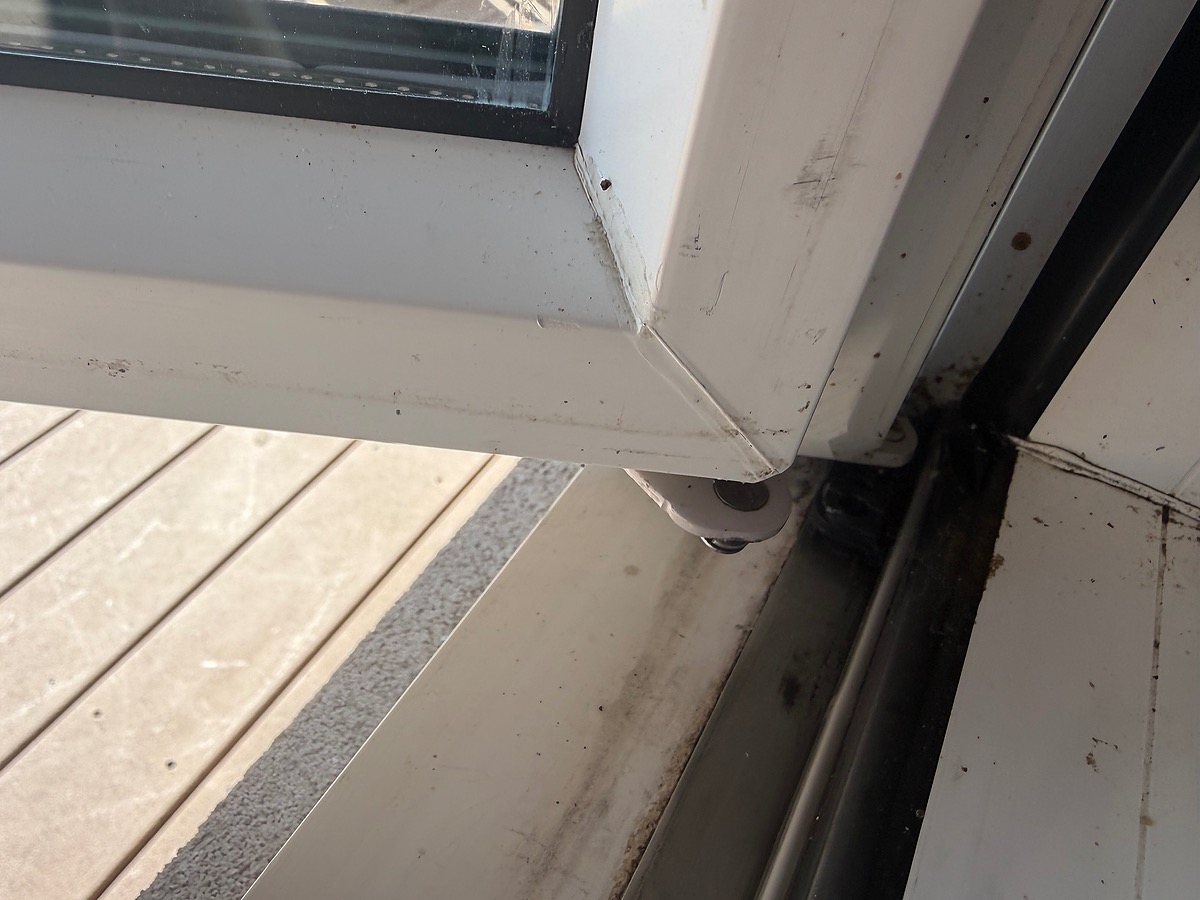

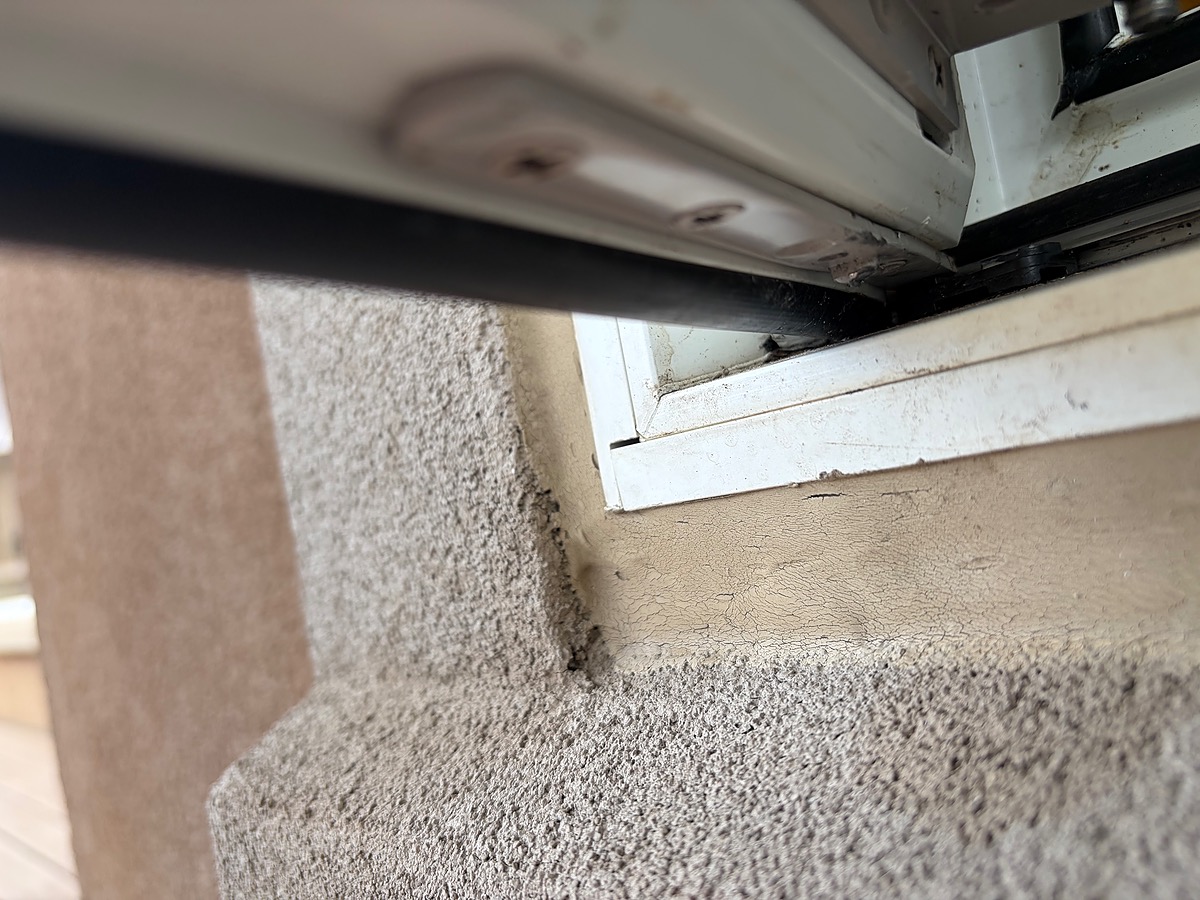

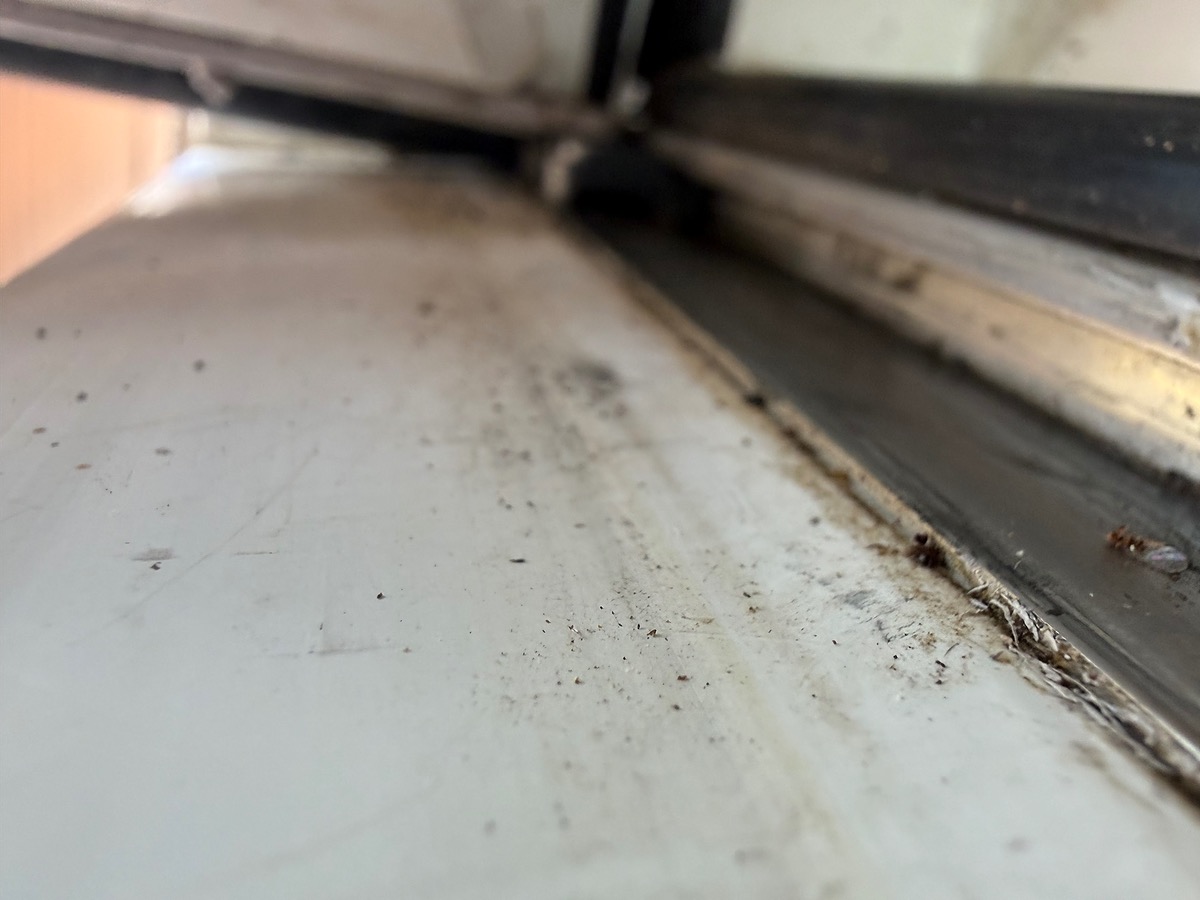

Photos are of the bracket on tin bottom of the sash. The 6 inch flat bracket is secured with 3 screws and hs a stud to connect to straight 10 inch connector.Also the bracket connects to a stud on the damaged black glide. I appreciate the help replacing these parts damaged by break in by a 350 pound black bear.

5 user uploaded images

Bob from SWISCO

Sep 27, 2026 5:56 pm

Thanks for clarifying, and sorry to hear about your Bear trouble! Now I see. This is part of the casement window hinge. We don't carry this exact one, but I think the 10" 36-004-10 stainless steel hinge set might work, as long as there's enough room to install it and you replace the top and bottom at the same time. See below, and see if you think this could work for you.

DImensions for 36-004-10

Home Owner from Reno nv

Sep 28, 2026 2:36 pm

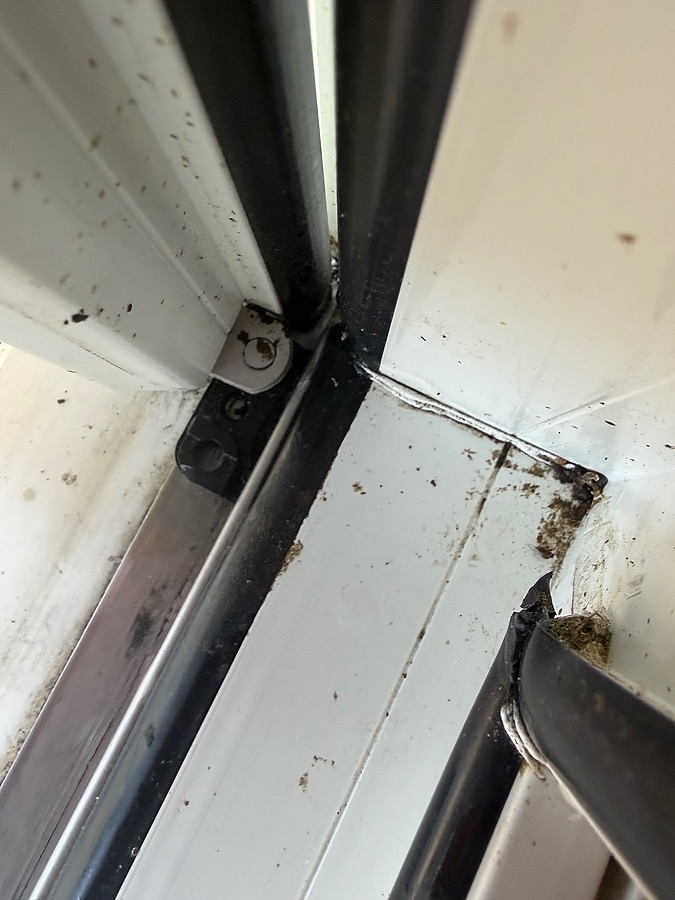

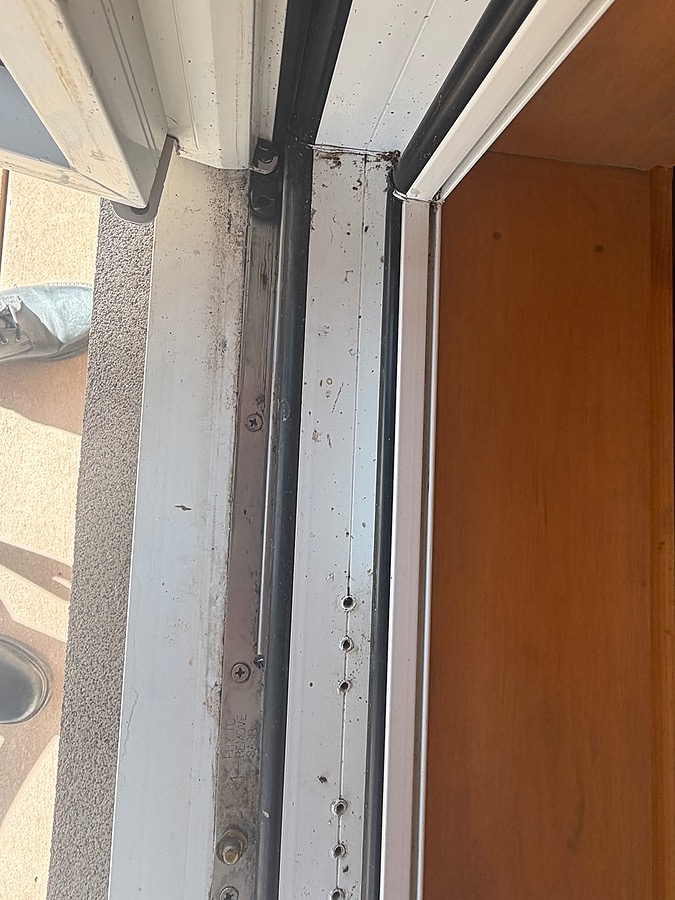

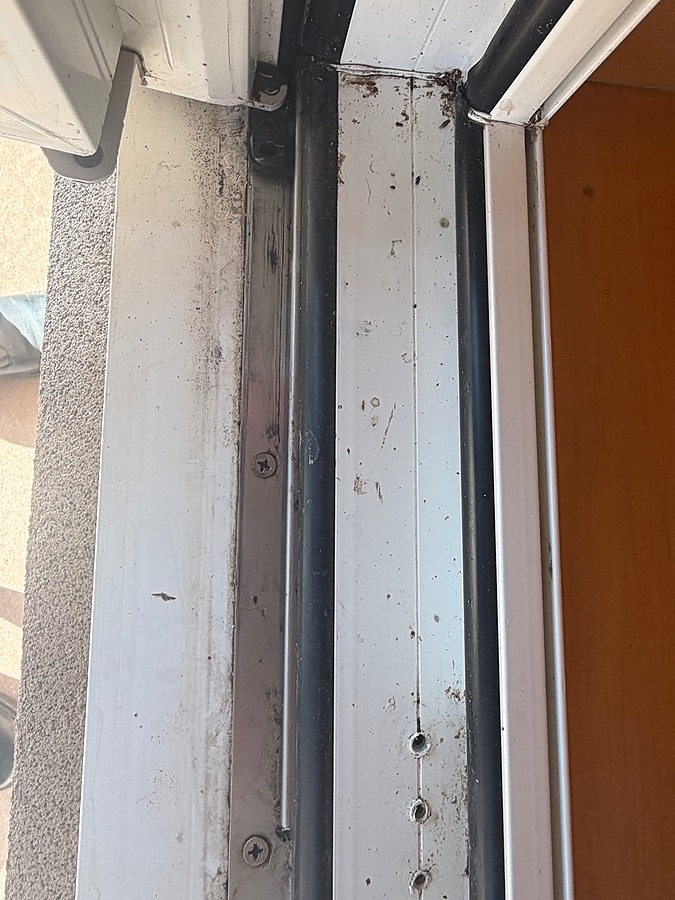

The hinge and glide is ok but the short 6 inch bottom bracket has a broken stud preventing attachment of the 10 inch straight connector. Can I replace the stud or is a replacement available allowing the terminal connection to the glide? 2 inches from that attachment is the broken stid. The length of the bottom bracket is not a problem as long as the 2 studs are 2 inches apart.

4 user uploaded images

Home Owner from Reno nv

Sep 28, 2026 9:25 pm

I will give it a try as well. I have the 39-542 but not a good fit

Bob from SWISCO

Sep 30, 2026 12:39 pm

That bracket you're showing in all your photos is part of the hinge assembly. It's not sold separately in any capacity; if yours is broken, you need an all new hinge assembly. You can't replace the individual components like that, I'm afraid.
