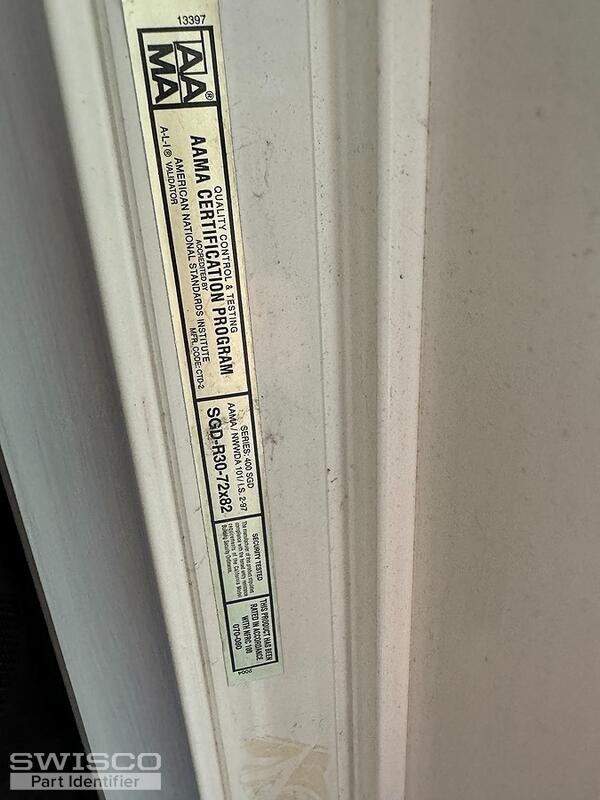

Bought a 82-080 - Mortise Style Handle Set, 4-15/16" based on how it looked, but was off by a little. Photos show 4 inches between the bolts that attach the handle to the door. Also attached a photo that shows my door model. Hoping the two things will help me to find the right part.
Patio door handles
Home Owner from Fair Oaks, CA
Oct 20, 2024 10:22 pm
4 user uploaded images
2 Replies
Casey from SWISCO
Oct 23, 2024 1:30 pm
Hello,
Your handle set looks like a closer match to the 82-030. Note that the hole spacing measures 3-15/16" on-center as shown below. Take a look and let us know if you need anything else. Thank you!
Hole center dimensions for 82-030
Dimensions for 82-030
