Closet door help : SWISCO.com

Quick Learner

Apr 17, 2025 8:50 am

Hello. I have to remove some bifold doors to redo my floors. Google lens identifies the hardware as Swisco. YouTube videos have not helped in how to remove the doors. I am attaching three images of the door hinges. I hope you can tell me how to remove the doors.

3 user uploaded images

6 Replies

Paul from SWISCO

Apr 17, 2025 10:12 am

Hello,

Your first photo shows the 23-101 adjusting bottom pivot with the 23-105 metal floor plate. There should be an exposed nut as shown in our photo. You can turn the screw pivot counter clockwise to give the door play to raise and carefully swing out the bottom of the door. In your case, it looks like you would loosen the bottom center screw to turn the threaded pivot pin. Thanks for posting!

Dimensions for 23-101

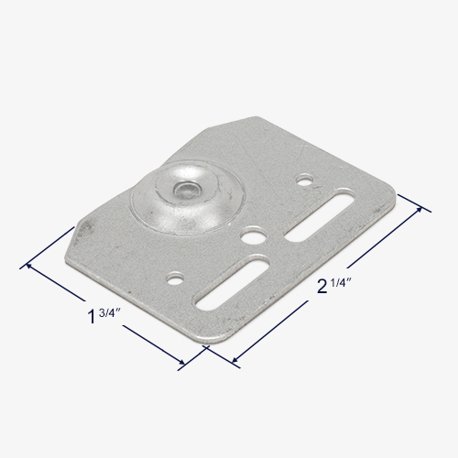

Dimensions for 23-105

Quick Learner

Apr 17, 2025 11:08 am

Thank you so much for this information! I got it; very helpful.
Enjoy the coming weekend.

Paul from SWISCO

Apr 17, 2025 11:36 am

We're happy to help and please let us know if you need anything else!

Handy Person from NJ

Jul 11, 2026 4:37 pm

I'm missing screws for this product...What screws can I use?

Dave Sr. from SWISCO

Jul 13, 2026 3:35 pm

The length of the screw would depend on the door thickness. Take a look at the #8 diameter screw 33-090. This screw has a length of 3/4", which should be fine, but you will need to measure your door to be sure. If the 33-090 screw is loose, you might need to go up to a #10 diameter screw.
