Closet door not auto-closing

A home owner from Atlanta, GA says:
August 24, 2018
Thank you for your excellent service and products! I just ordered a bunch of window balances and associated parts.

Please look at the attached pictures and let me know if/how to adjust this type of auto-close door hardware so that it works again.
Profile picture of Paul
Paul from SWISCO responded:
August 29, 2018

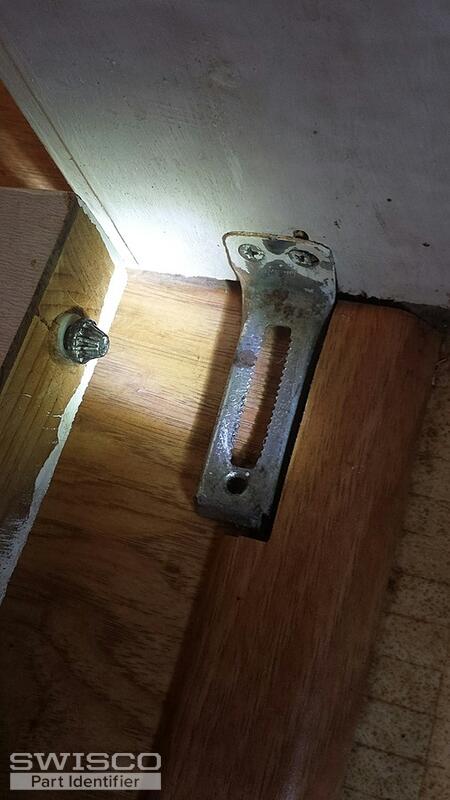

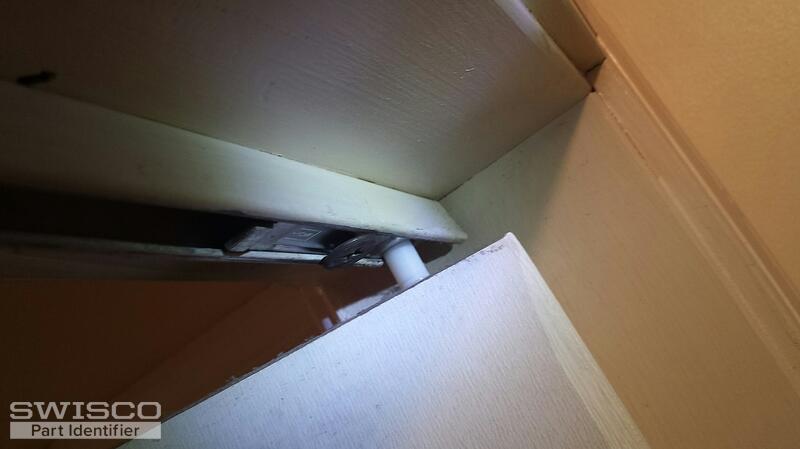

In your first photo, it shows a bottom pivot pin and bottom corner bracket. Our 23-135 and 23-301 should be able to work in its place. The second photo is showing a top pivot bracket that has been discontinued. It has been replaced with the 23-306 and 23-123 top pivot guide. Look over all the parts mentioned and let us know if you have any other questions.
A home owner from Atlanta, GA says:
August 29, 2018
Paul, thank you for your reply. I was hoping to just make an adjustment vs. buying and installing all new parts ... are you implying that this is not possible?
Profile picture of Paul
Paul from SWISCO responded:
August 29, 2018

I apologize, I must have misinterpreted your question. To adjust your door, I usually remove the door and turn the bottom pivot pin to raise the door to resume your auto closing. Try that and see if that works for you.
Bottom Threaded Pivot
Bottom Threaded Pivot
23-135
$1.70
Bi-fold Door Bottom Pivot Bracket
Bi-fold Door Bottom Pivot Bracket
23-301
$2.27
Bi-Fold Door Top Pivot Bracket
Bi-Fold Door Top Pivot Bracket
23-306
$3.20
Bi-Fold Door Top Pivot Guide
Bi-Fold Door Top Pivot Guide
23-123
$0.75
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
