Closet door roller replacements

Question

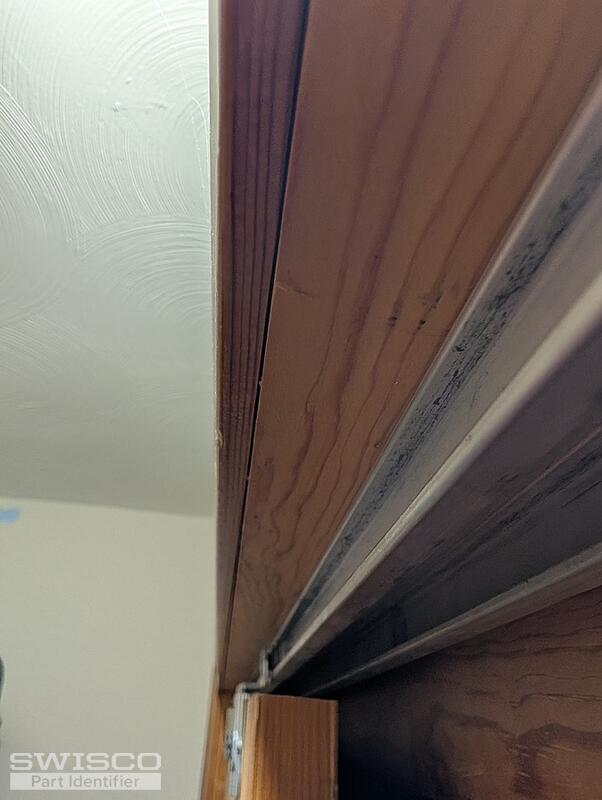

I am needing a replacement for this roller. I am needing 4 of these rollers; 2 different closet front doors with 2 rollers each. The wheel is 3/4" in diameter. The width of the wheel appears to be 3/16"; a 1/4" wheel is too wide! The overhang is roughly 1/4". (I think I could make a 1/8" overhang work as well.)
Although probably not as important, the overall height of the bracket is 3.0" and the width is 2 1/4.
Lastly, my bracket is neither convex or concave, it is just flat!
It looks like the 23-001 & 23-031 would be possible options, but not sure if the 23-031 has a wheel width of 3/16" like the 23-001 or if it's wheel width is thicker.
Would either of these options work for me? If both would work, which would you recommend?
Thank you!

Dave Sr. · Accepted Answer

Hello,

The wheel on the 23-031 has a thickness of 3/16", which appears to be our closest match to the roller you are trying to replace. This roller has a 1/8" offset bracket, which is normally used for the front closet door.

Dimensions for 23-031

Alternate view of 23-031

The 23-047 has a backset of 1/2" and is typically used on the rear door. Take a look at both rollers, along with the related video to assist you.

Dimensions for 23-047

Alternate view of 23-047
