Closet mirror door bottom track

Start a new Discussion

Home Owner from Claremont CA

Dec 2, 2025 8:32 pm

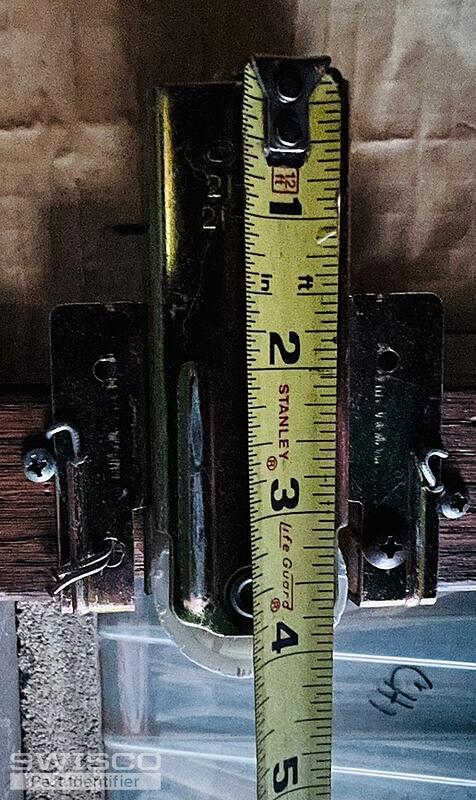

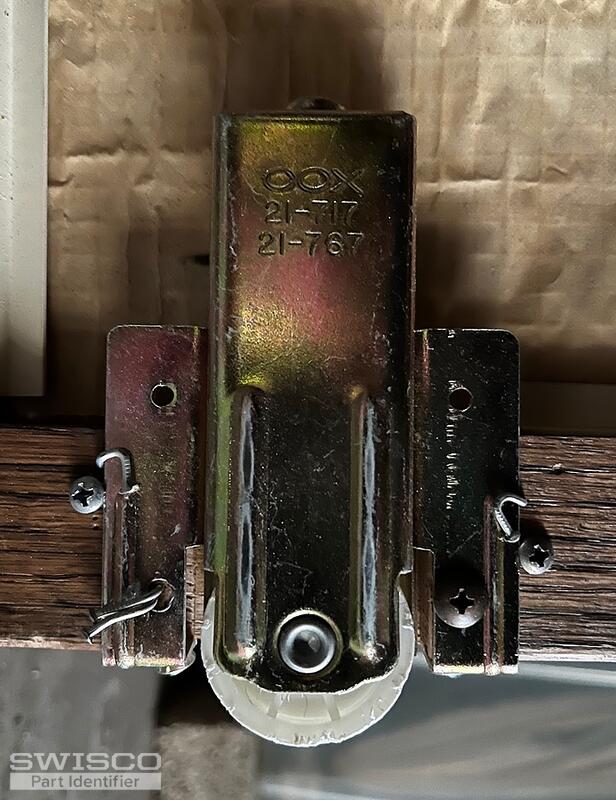

I am looking for a track for the attached bypass closet mirror doors. The closet is 59inches wide .

5 user uploaded images

4 Replies

Paul from SWISCO

Dec 4, 2025 11:26 am

Hello!

Take a look at the 23-271 bottom track for concave roller wheels. The roller assembly would be the 23-070 nylon concave roller or the 23-086 ball bearing nylon concave roller for heavier doors. Review the specifications and see what you think.

Profile view of bottom concave roller track

Detail of 23-070

Detail of 23-070

Alternate view of 23-070

Alternate view of 23-070

Detail of 23-086

Detail of 23-086

Alternate view of 23-086

Alternate view of 23-086

Home Owner from Claremont CA

Dec 4, 2025 1:50 pm

Thank you for your response.
What is the difference between 23-086 and 23-070? They look the same.

Paul from SWISCO

Dec 4, 2025 2:05 pm

The 23-086 has a ball bearing wheel, while the 23-070 does not. Ball bearing wheels operator much better.
