Closet part photos

Question

We will need one top attachment size 9' 1/2" .
Also we need two bottom closet rails the sizes are 9' 1/2" and 6' 1/2''.

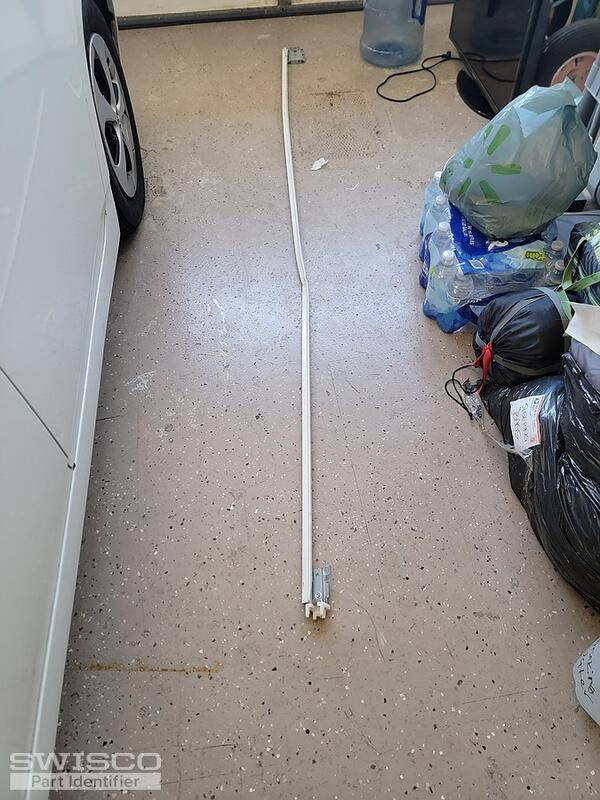

Picture 1: Bottom railing 9' 1/2''

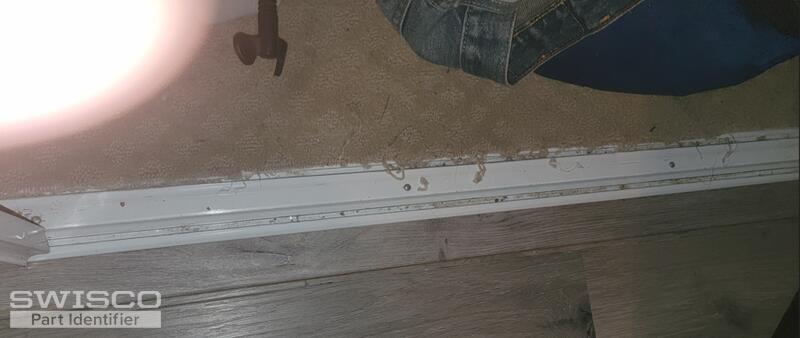

Picture 2: side attachment to closet door broken. Length 9' 1/2''

Picture 3: Top of attachment to closet door.

Pictures 4: up close of top of attachment closet door (front side)

Picture 5: up close of top of attachment closet door (back side)

Tom · Accepted Answer

Thanks for reaching out to us. We can help you with the top and bottom guides, as well as the bottom track, but that side rail the guides are attached to is beyond the scope of our ability to help with. That's part of the frame of the door itself and isn't meant to come off like that. Since yours is so damaged, you either need an all new mirror door or you need to contact a local aluminum extruder to see if this is something they can fabricate for you.

Regarding the top guide, this is an old model that isn't made anymore. The manufacturer suggests using the 23-093 as a substitute. The bottom roller is an older version of our 23-041. For the track, we are unable to ship these in lengths as long as 9.5'. You need to use two smaller tracks like our 23-241 and butt them together.
