Closet roller for Monarch door

Quick Learner from Arlington VA
Mar 29, 2011 3:35 pm
Monarch mirror bi pass doors
Wheel diameter 1.5"
Bracket 1.75" wide x .5" thick
Overall length top of bracket to bottom of wheel 3"
If not the bracket with wheel maybe just the nylon wheel with metal ball bearing hub.
These doors are 30 x 78 and weighs 52lbs. There are 4 door with 2 wheels on each. I would replace all 8 wheel if possible.

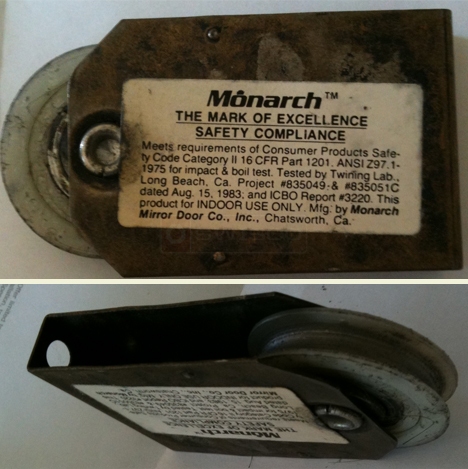

user submitted photo of monarch closet roller
Monarchâ„¢
THE MARK OF EXCELLENCE SAFETY COMPLIANCE
Meets requirements of Consumer Products Safety Code Category II 16 CFR Part 1201. ANSI Z97.11975 for impact & boil test. Tested by Twining Lab., Long Beach, Ca. Project #835049 & #835051C dated Aug. 15, 1983 and ICBO Report #3220. This product for INDOOR USE ONLY. Mfg by Monarch Mirror Door Co., Inc., Chatsworth, Ca.
8 Replies
Tom
Tom from SWISCO
Mar 30, 2011 8:51 am
SWISCO
EXPERT
Thanks for using SWISCO discussions!

I think this roller is part of an assembly. Is there a separate housing that this roller was attached to? If there is a separate housing, can you add a picture of it here?
Quick Learner from Mechanicsburg, OHIO
Apr 8, 2011 10:17 am
I have this very same roller. And yes it does have a metal outer housing that this part slides into. Just really need the rollor part though. Can you help!
Quick Learner from Mechanicsburg, Ohio
Apr 8, 2011 10:42 am
The Monarch Bypass Mirror Door K Series roller assembly looks like your part# 23-028. But like I said before we just need the inside roller part of the assembly. The part # for ordering part #'s was (Adjusting Screw and Braket #26086) and the (Wheel & housing #28504)(part we need) but...the phone # in Tupelo, MS is no longer in service.
Paul
Paul from SWISCO
Apr 8, 2011 11:55 am
SWISCO
EXPERT
The 23-028 roller can be used to replace Monarch mirror door rollers, so it should work as a replacement as long as the dimensions match up to your existing roller.

Currently the 23-028 is sold as an assembly. The inner roller is not available separately.

Please let me know if you need any more information or dimensions of the 23-028 roller assembly.
Home Owner from wv
Apr 24, 2011 10:46 pm
I need the same roller ut the replacement shown doesnt look as though it will fit correctly. has anyone tried and will it fit?
Home Owner from Provo, Ut
Jun 12, 2011 12:36 am
The rollers on our doors are okay, but we need a new 'pan' that they roll on on the floor. I'm sure that is NOT what it is called, but it is the metal part. We thought we could just bend it back to the right shape, but it is worn through in some places.
Handy Person from minneota , minnesota
Mar 30, 2012 10:59 am

Dear Experts

We have a closet door that needs four new rollers that are in the attachmnet. Would you please tell us if we can get them and the cost of the rollers.
Closet roller for Monarch door
A quick learner from Arlington VA says:
March 29, 2011
Monarch mirror bi pass doors
Wheel diameter 1.5"
Bracket 1.75" wide x .5" thick
Overall length top of bracket to bottom of wheel 3"

Thanks

Jerry

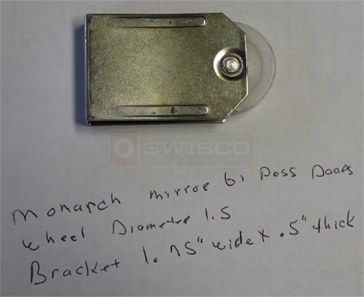

A customer submitted photo of a closet door roller.
Tom
Tom from SWISCO
Mar 30, 2012 11:12 am
SWISCO
EXPERT
Thanks for posting, Jerry. Like the pictures in the original post, your sample may be part of a larger assembly. Is there a separate housing in the closet door that this roller may have been attached to? If so, please take a look at our 23-028 and compare it to the complete assembly. Do you think that would work for you?
