Closing mechanism

Home Owner from Minneapolis
Sep 22, 2024 1:21 pm

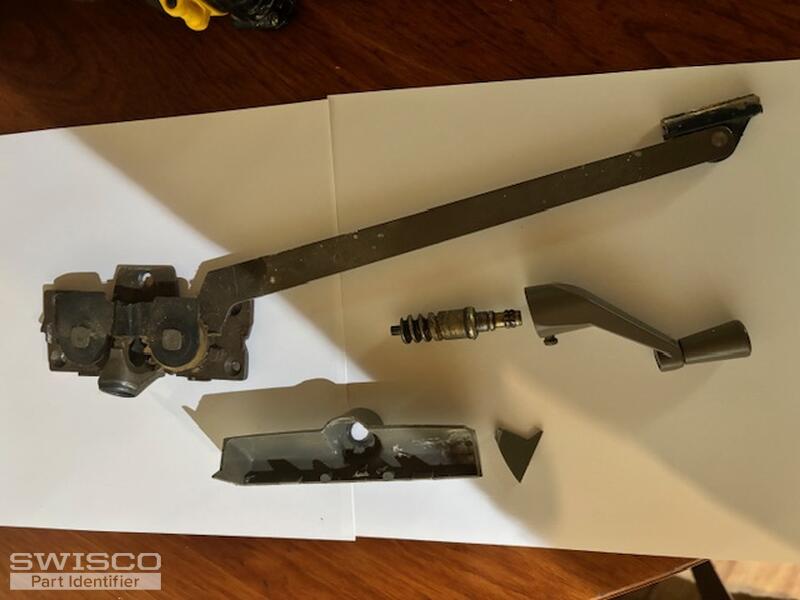

The markings on this window are, a triangle with AW inside of it, on the left is the letter M on the right is something that looks like parentheses {} right underneath it is E6,at the bottom of the triangle is a V circled with 4 quarter round lines.

Also the corner of the cover is broken, this may be why the mechanism does not shut the window, or maybe wear and tear as it does not bite the wheel.

AW1 AW2 AW3 AW4
4 user uploaded images
2 Replies
Casey
Casey from SWISCO
Sep 25, 2024 3:02 pm
SWISCO
EXPERT

Hello,

Your operator resembles the 39-151 or 39-095 depending on the length of the arm that moves the sash. These operators are used with the 39-286 handle. Thanks for posting!

Dimensions for 39-151
Dimensions for 39-151

Dimensions for 39-095
Dimensions for 39-095

Home Owner from Minneapolis
Sep 26, 2024 4:26 pm
Great, Thnk you very much for your help,
