Clutch

A quick learner from California says:
February 27, 2023

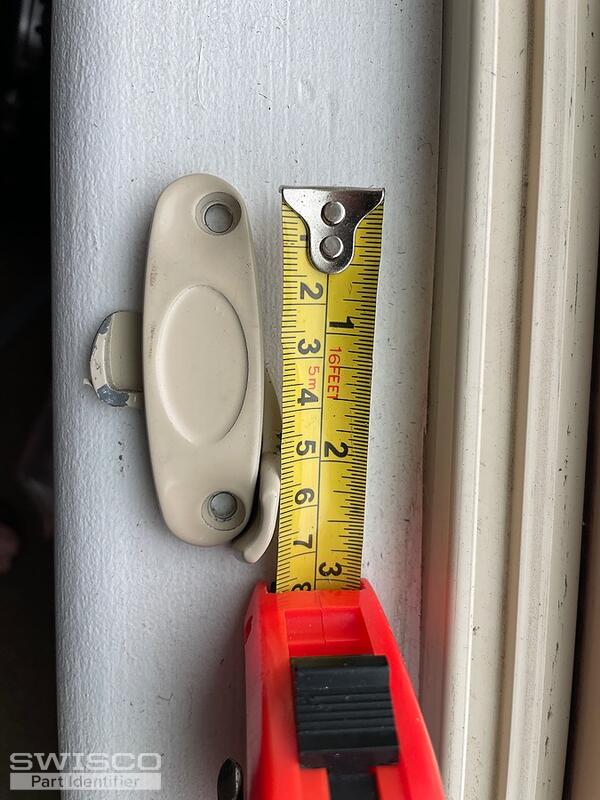

Need replacement for broken clutch.
Thumbnail of the uploaded file named 6B31CF77-18BC-4598-8E65-2A1BA3DE6C8C.jpeg
Thumbnail of the uploaded file named 05844A77-8776-4102-8A18-C1B9D258E272.jpeg
Thumbnail of the uploaded file named 145F4A0E-98EE-44E9-8288-24A80A3FBF9E.jpeg
Thumbnail of the uploaded file named 8A821F8B-6508-4537-A3E2-56FF8FC70F26.jpeg
Profile picture of Casey
Casey from SWISCO responded:
February 28, 2023

Hello,

Unfortunately, we do not carry an exact match for the sash lock shown in your photos. The 90-313 may work in a similar way to your part but you would need to compare the dimensions and, even then, we can't guarantee that it would work as a replacement. Take a look and see what you think.

Dimensions for 90-313
Dimensions for 90-313
A quick learner from California says:
February 28, 2023
That piece I think would work. Except where is the clutch? That is actually the piece which broke. Wouldn't I need both pieces ?
Profile picture of Casey
Casey from SWISCO responded:
March 1, 2023

Could you clarify what you mean by clutch? If you're referring to the keeper that the lock engages with, we would need to see a photo of an undamaged keeper removed from one of your windows, as well as confirm the overall length and hole spacing, to compare to our inventory.
A quick learner from California says:
March 1, 2023
Yes the clutch.

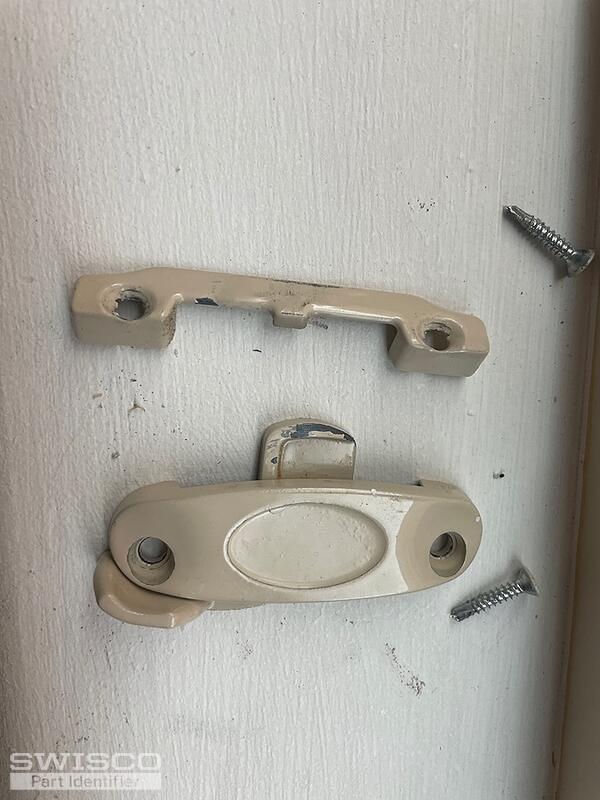

Here is the intact components from another window.
Thumbnail of the uploaded file named 69673876-EEDF-4217-9FA2-E463C0FC8EBD.jpeg
Profile picture of Casey
Casey from SWISCO responded:
March 1, 2023

Great, if the keeper is the only broken part, take a look and compare the specifications of the 90-282 to see if you could use this with your original lock. Thank you.

Dimensions for 90-282
Dimensions for 90-282

Alternate view of 90-282
Alternate view of 90-282
A quick learner from California says:
March 1, 2023
I think that might work and it's worth a shot.
Profile picture of Casey
Casey from SWISCO responded:
March 2, 2023

Great, you are welcome to place an order directly on our website. You can also find our return policy here in case you run into any problems.
A quick learner from California says:
March 2, 2023
done.
Recessed Keeper
Recessed Keeper
90-282
$1.75
Deep-set Sash Lock, 2-1/4"
Deep-set Sash Lock, 2-1/4"
90-313
$6.70
