Coil

A home owner from New York says:
February 1, 2017

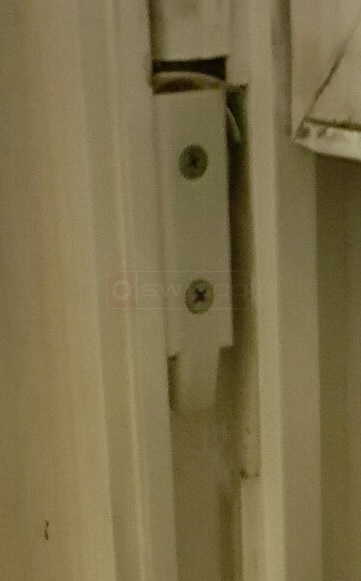

I need the coil that goes behind the plastic piece shown in the picture.
Coil spring
Profile picture of Paul
Paul from SWISCO responded:
February 7, 2017
Please see our Series 190 coil balance, I think this may be what you need. You will need the stamp on the old spring to determine the best option.
A home owner from New York says:
February 7, 2017
Thank you. I can't seem to locate the stamp. The coil is very tightly wound and I'm not sure where on the coil it'd be located.
Profile picture of Paul
Paul from SWISCO responded:
February 8, 2017
It is usually right near the screw hole. There shouldn't be any reason to unwind it or anything. It should be in open view.
