Coil Balance

A home owner from Carneys Point NJ says:
August 3, 2018

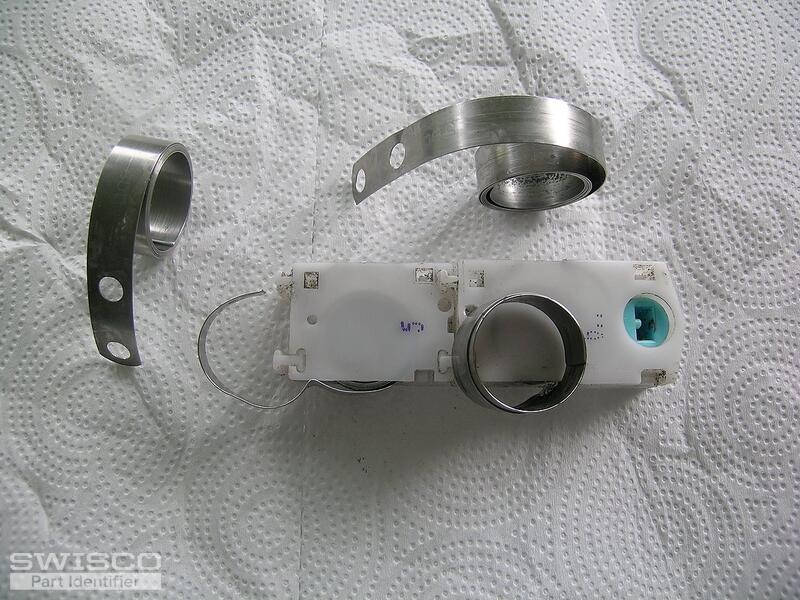

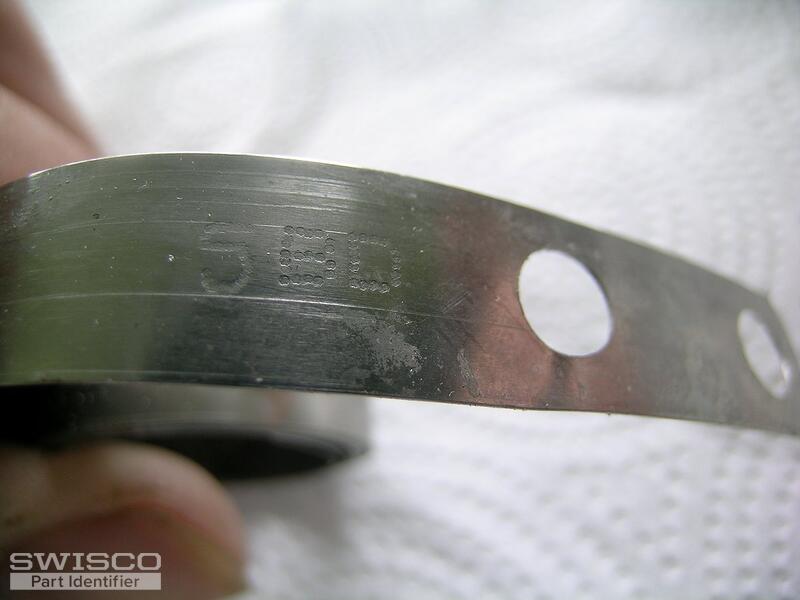

Had 2 coil balances break on an Anderson window today.It looks like the coils are stamped 5 BD or DD and they measure 15/16" wide.The sash weighs 20 pounds 8 ounces.They look like your series 180 coil balances.Would the 5 pound be the correct one?Would the 15-086 tandem coil housing and the 15-087 coil housing pivot be the correct parts to replace the ones I have in the pictures?

Upon closer inspection,the coilks are stamped 5 and 6.

Thank you

Dan

Profile picture of Tom
Tom from SWISCO responded:
August 7, 2018

Hi there- thanks for posting!

You are correct in your assessments. You do have our 15-087 housing with pivot and our 15-086 tandem housing. The coil springs will be S180-5 & S180-6 for your sash. If you have any more questions please don't hesitate to get back to us.
5 lbs Series 180 Coil Balance
5 lbs Series 180 Coil Balance
S180-05
$4.37
6 lbs Series 180 Coil Balance
6 lbs Series 180 Coil Balance
S180-06
$4.45
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Mounting Bracket
Mounting Bracket
16-024
$0.66
