Coil Balance

A handy person from New Jersey says:

January 3, 2023

Please confirm the replacement coil balance and housing assembly needed for this replacement.

Thank you,

Karen

Thumbnail of the uploaded file named IMG_2415.jpeg

Thumbnail of the uploaded file named IMG_2416.jpeg

Lauren from SWISCO responded:

January 5, 2023

Hi Karen, thank you for posting,

To further review, are you able to provide pictures of the pivot shoe that these coils attach to? Seeing the pivot shoe will help us determine the series. Thank you!

A handy person from New Jersey says:

January 7, 2023

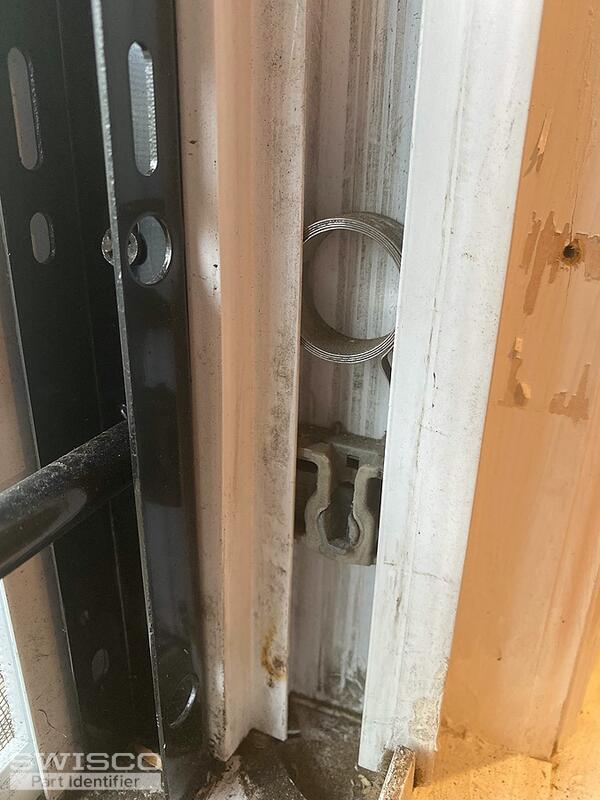

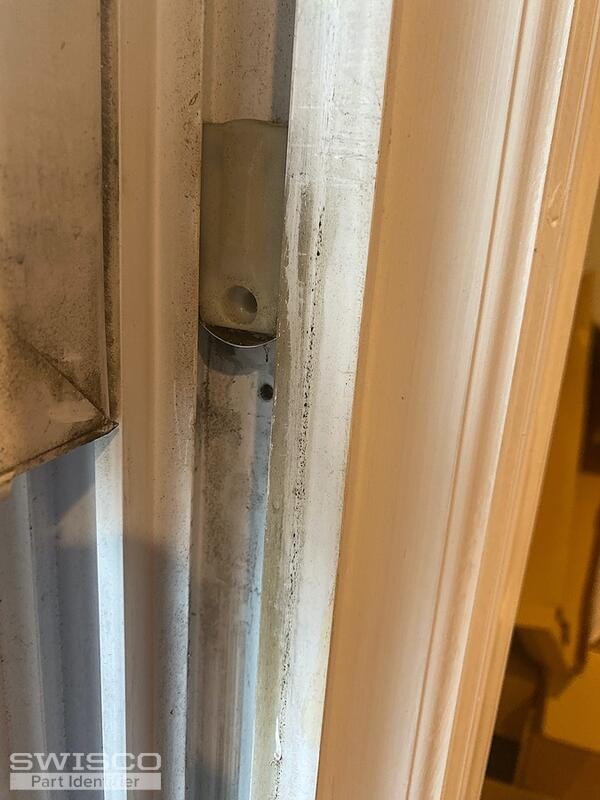

Hello Lauren - hopefully these photos will be of help.

Thank you,
Karen

Thumbnail of the uploaded file named 69445029536__DA23513A-D087-4CC4-8296-F7C893BEDD35-

Thumbnail of the uploaded file named 69445065972__04611B08-6F13-4896-A148-8EA163B51B36-

Lauren from SWISCO responded:

January 9, 2023

Thank you for the additional pictures,

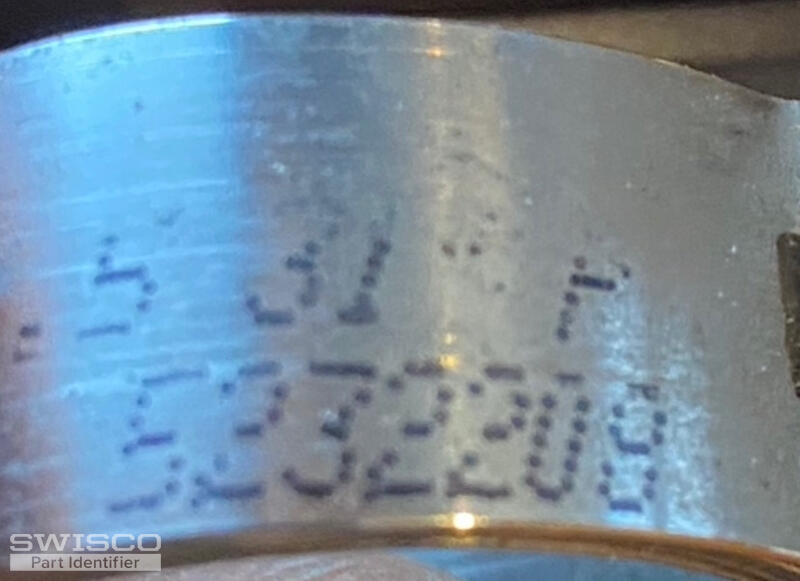

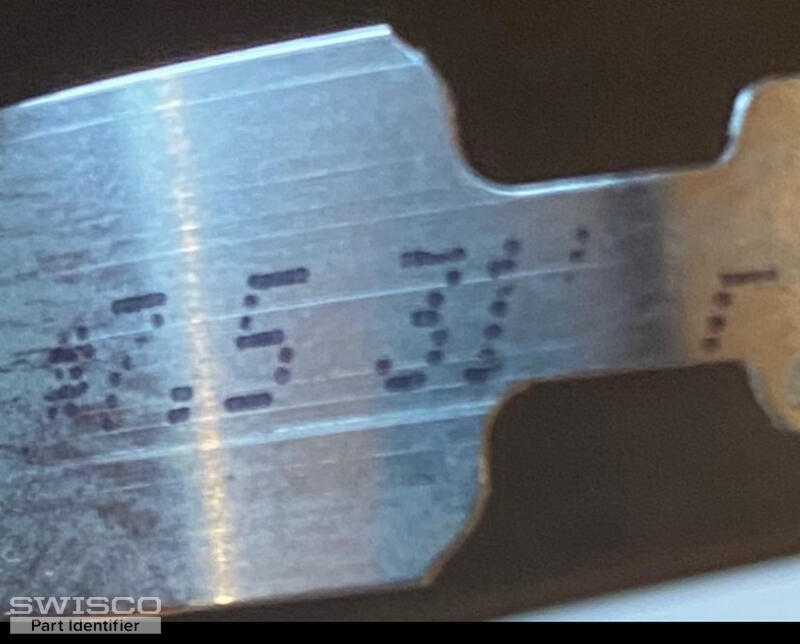

Your pivot shoe resembles the 15-111 that is compatible with the Series 160 coil springs. It appears your original spring is stamped with 7.5, take a look at the S160-7. One of these coils on each side of the window can support a 15 pound window sash. We recommend weighing your sash to confirm a good fit. Review all dimensions and let us know if have any additional questions!

Alternate image for 15-111

A handy person from New Jersey says:

January 12, 2023

Thank you Lauren - I will go ahead and order the recommended parts. My handyman will advise if all goes well once received.

Best regards,
Karen

Lauren from SWISCO responded:

January 13, 2023

Awesome, thank you so much for the order! Please let us know if we can be of any help in the future.

1/2" Coil Single Support

15-150S

$1.10

Pivot Shoe, 1/2" Thick

15-111

$2.44

7.5 lbs Series 160 Coil Balance

S160-07

$5.04
