Coil Balance Assembly

A home owner from Canada says:
May 4, 2020

Hi, I am looking for a Coil Balance assembly. The only information that I have is a number 7 stamped on the coil.The coil and assembly are 1/2 inch wide. It's from a single hung bathroom window and both coils are broken. I have attached pictures of the assembly. Thanks!

Bob

Thumbnail of the uploaded file named B06737B5-C594-4740-8EEE-FC77790DABEA.jpeg
Thumbnail of the uploaded file named E7DFF1C2-61B6-40AB-A624-42FED7DC5E15.jpeg
Thumbnail of the uploaded file named DA2559B6-035B-499F-B748-E6DE4C18D437.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 6, 2020

Hello,

I'm not familiar with your coil balance system, specifically your pivot shoe, but I know someone who might be. We'll need to do a bit more research and we will reach out to you as soon as more information is available. Thank you!
A home owner from Canada says:
May 6, 2020

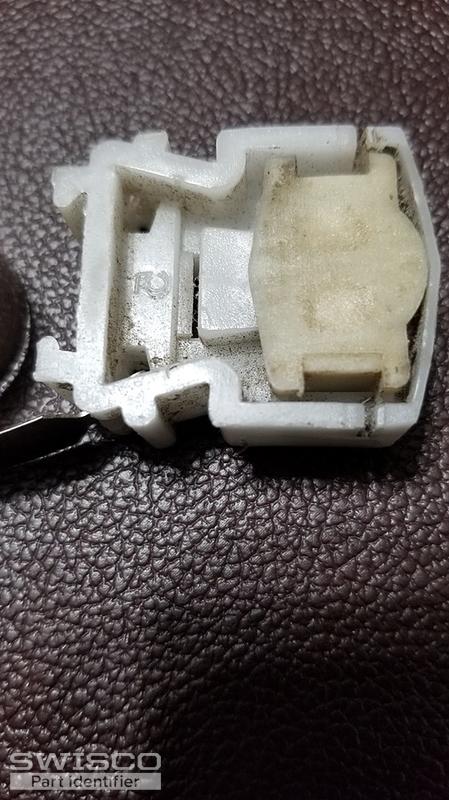

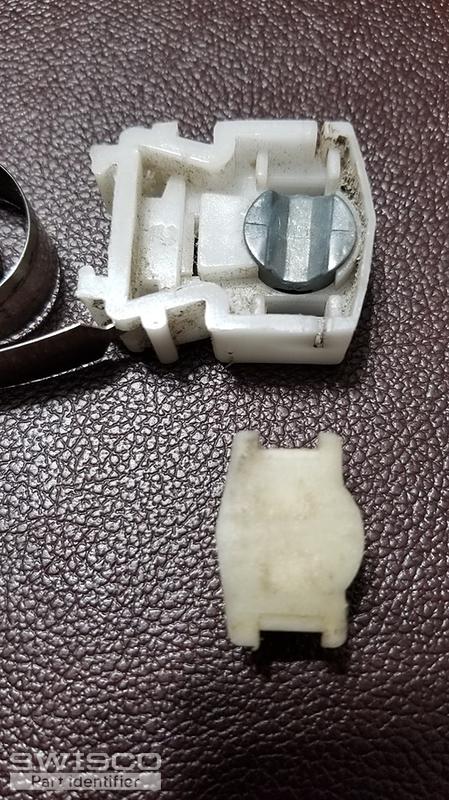

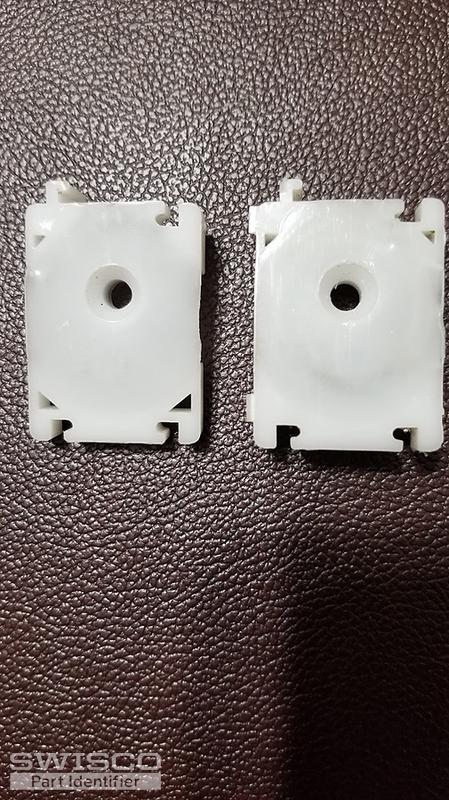

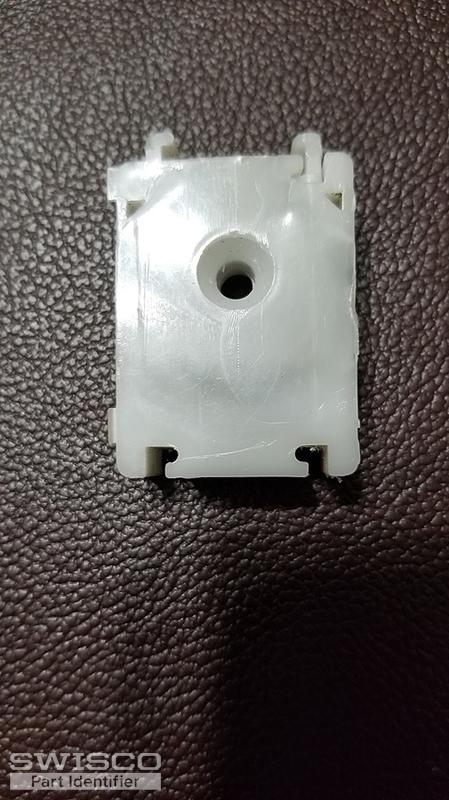

I have attached pictures of the pivot shoe both sides. Assembled and disassembled. Hope this helps. Thank you!
Thumbnail of the uploaded file named 0CAA662A-32BF-4E91-BE4C-C8ADE00A6E2B.jpeg
Thumbnail of the uploaded file named 5CAF75E0-F079-49A0-8DF8-FD37E3FB26E0.jpeg
Thumbnail of the uploaded file named E2040027-5591-4EBB-B65F-8FDC78EF649E.jpeg
A home owner from Canada says:
May 6, 2020

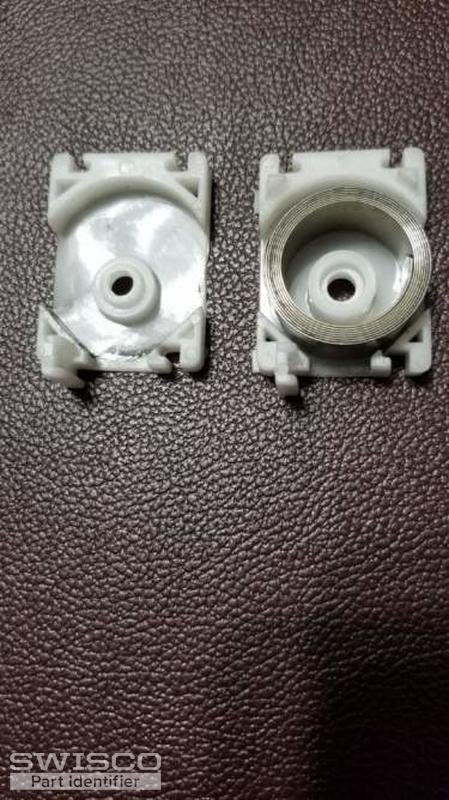

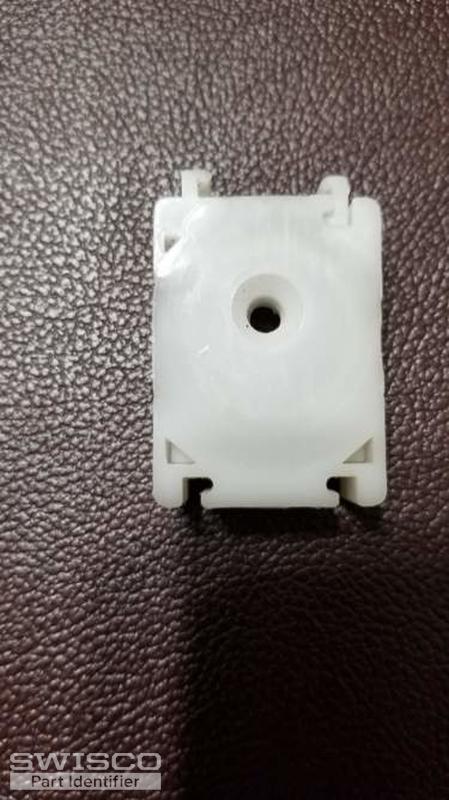

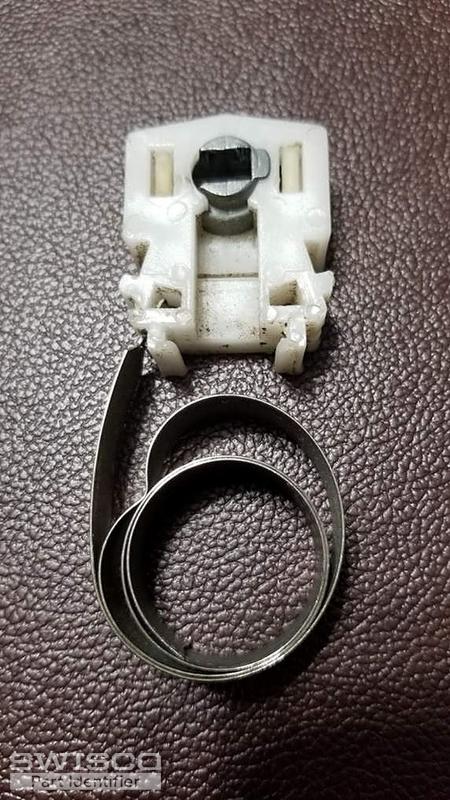

Here are more pictures of the coil assembly.
Disassembled and assembled. Thank you again for your help!
Thumbnail of the uploaded file named CBD8ABD9-B779-4A3E-8DC4-E7BB6103A193.jpeg
Thumbnail of the uploaded file named FC873001-B12C-4BB2-A16D-32E5F97DF012.jpeg
Thumbnail of the uploaded file named B1ADB795-5F03-406D-8B0E-C6E3F4167D6B.jpeg
Thumbnail of the uploaded file named 07F5B2C3-EBBE-46A9-BE30-CC303EAE94AB.jpeg
Profile picture of Paul
Paul from SWISCO responded:
May 7, 2020

I believe you have the prototype coil balance system that is now our S140-7. It is 1-1/4" wide by 9/16" thick. May I see your pivot bar to see if it will fit in the center metal cam to confirm? Thanks!
A home owner from Canada says:
May 7, 2020

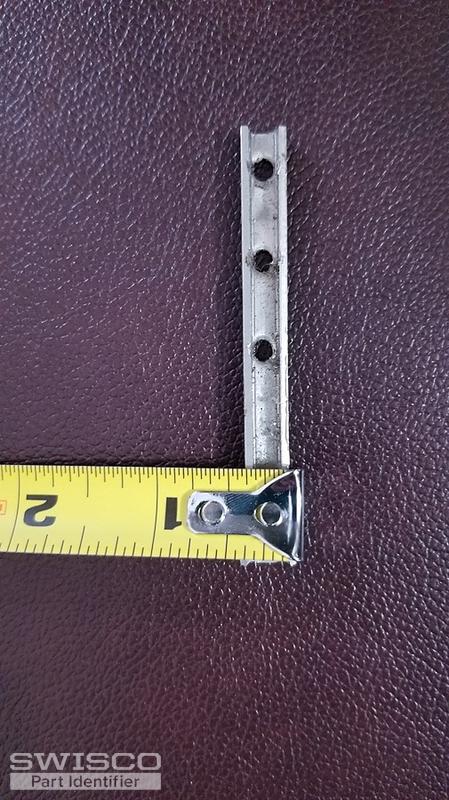

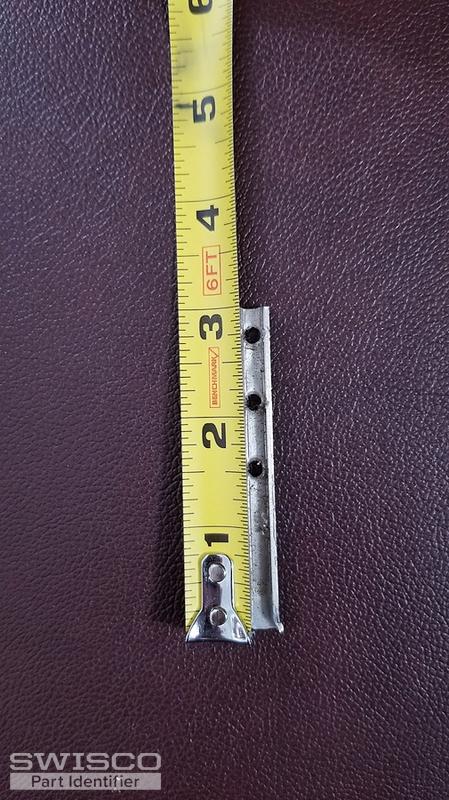

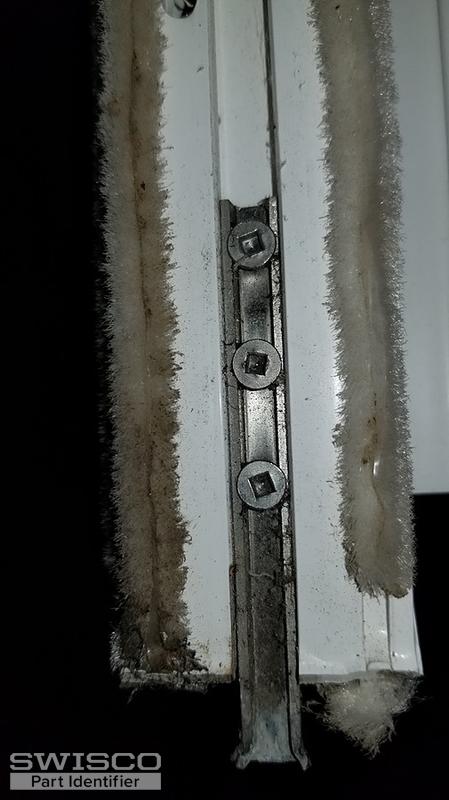

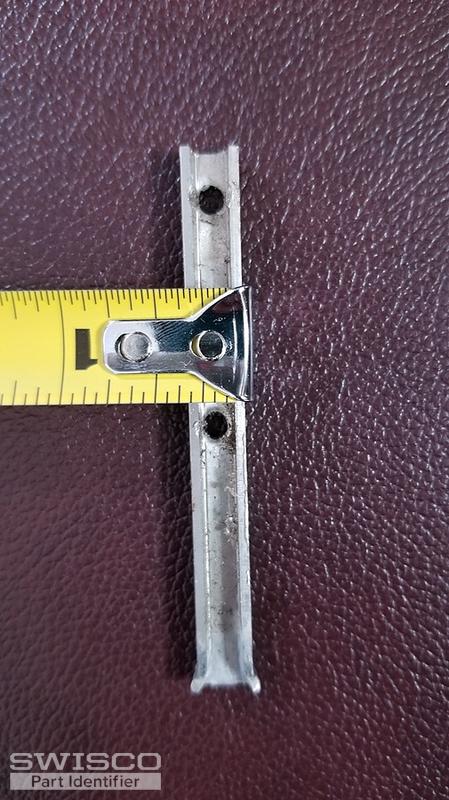

I measured again and you are correct on the measurements. Sorry my mistake. I am attaching some photos of pivot bar. Thanks!
Thumbnail of the uploaded file named 3CC0C9C7-A43D-4138-A83F-9430669279F9.jpeg
Thumbnail of the uploaded file named CBD6D590-82BB-4FB4-AA9E-49018F41F945.jpeg
Thumbnail of the uploaded file named 1967429A-1088-4BBE-BB63-D3C5CAF2767C.jpeg
Thumbnail of the uploaded file named 95DF9AC9-A356-4E55-B6A0-05378160C879.jpeg
Profile picture of Paul
Paul from SWISCO responded:
May 11, 2020

Perfect. It looks like you should be able to use your old flared pivot bar with our S140-7 Quick-tilt coil balance assembly. Please let us know if you have any other questions.
A home owner from Canada says:
May 11, 2020
Thank you very much Paul! I will now put my order in.
