Coil Balance Assembly

A landlord from Leominster MA says:
November 8, 2021

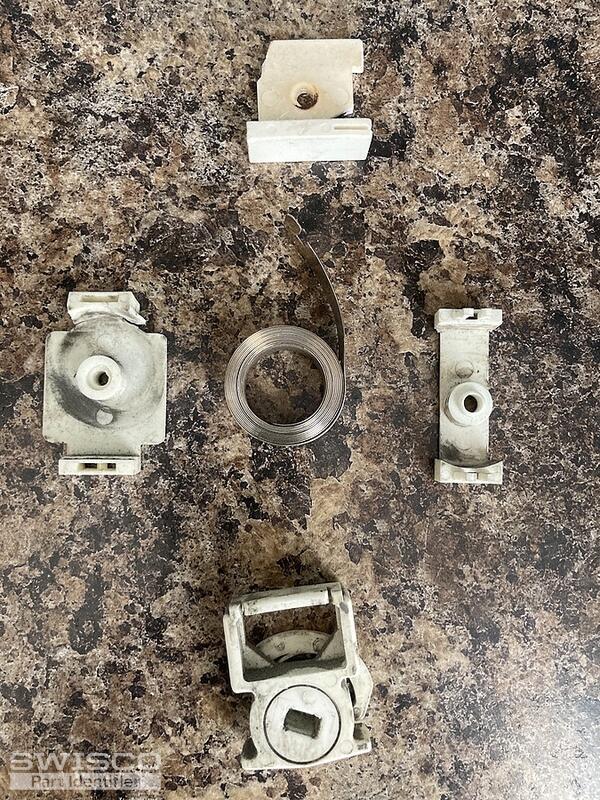

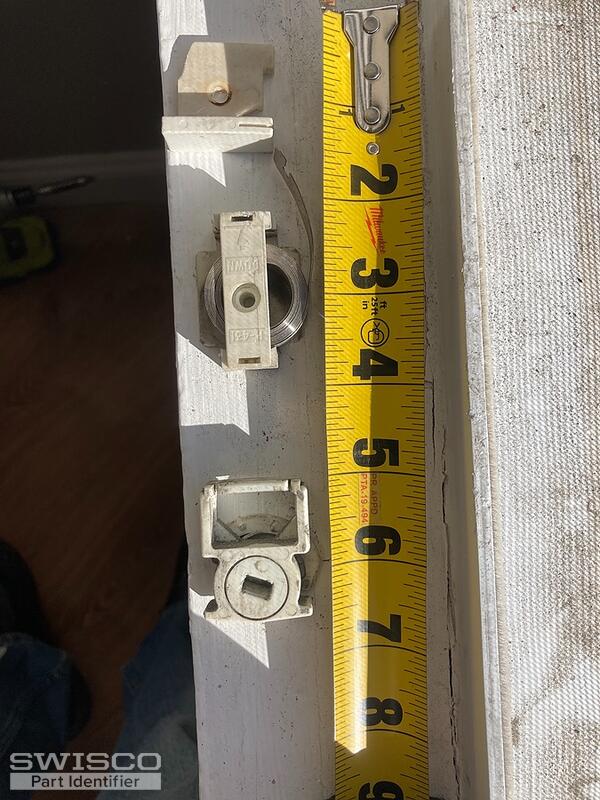

Can you identify and give me part numbers for the five items attached? Thanks
Thumbnail of the uploaded file named 345E9207-53A7-4DB3-9922-78C6D29EFFCA.jpeg
Thumbnail of the uploaded file named 33237974-489B-46C4-BB77-B7C1ADAA586E.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
November 10, 2021

Hello, thank you for posting!

Please review our 15-140 pivot shoe which is compatible with the Series 150 coil spring. For new coil housing, please refer to our 15-143 coil bushing and 15-144 bushing cap.  To know what weights to select for the coil springs, look for stamp codes on the springs themselves. If there are none or you are unsure, give us the exact weight of the window sash(es), and we can work it out for you. Please let me know if you have any questions.
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Balance Shoe
Coil Balance Shoe
15-140
$3.07
