Coil Balance Assembly

Home Owner

Mar 26, 2025 1:19 pm

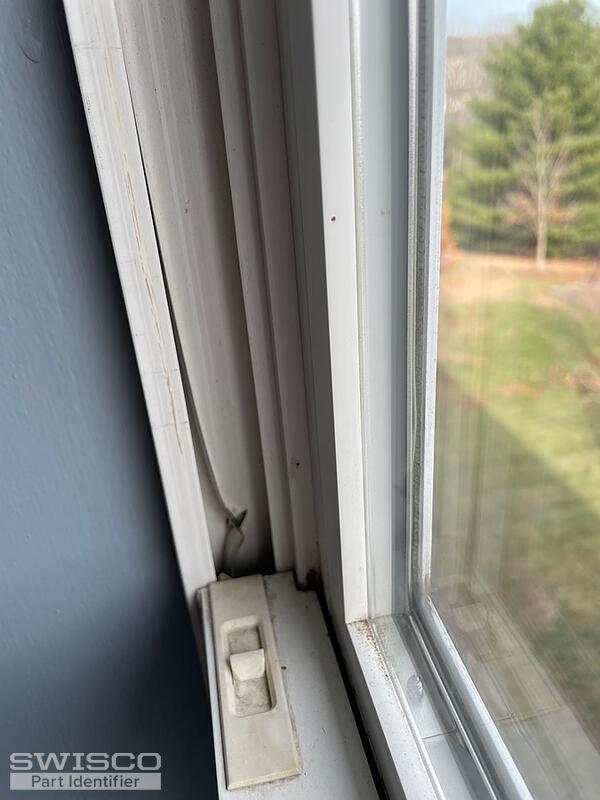

I need some help on how to determine what parts I need to replace my coil balancer as well as the sash clips that keep the window in the track located at the top of each window.

5 user uploaded images

4 Replies

Emily from SWISCO

Mar 28, 2025 11:06 am

Hi there!

Start by taking a look at the 26-243 and 26-244 tilt latches. Review their specifications and see if they match what you need.

We're happy to ID the coil balances, but we must first ID the pivot shoe to determine the compatible coils. Can you show us a photo of yours?

Home Owner

Mar 29, 2025 12:19 pm

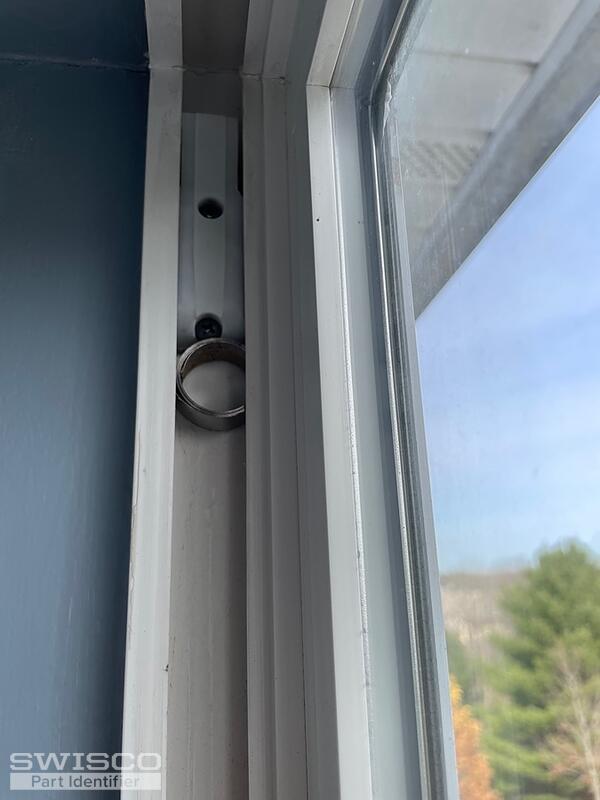

Here is a picture of the coil balancer.

2 user uploaded images

Emily from SWISCO

Mar 31, 2025 8:34 am

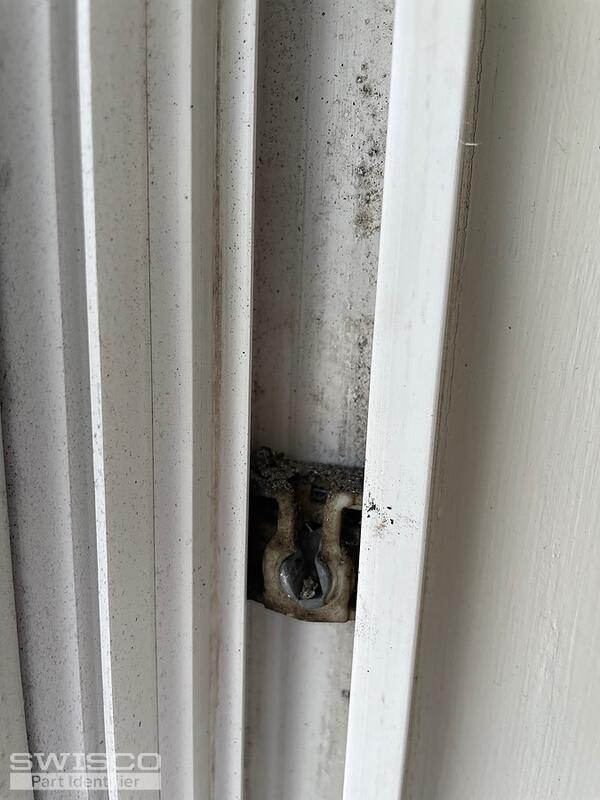

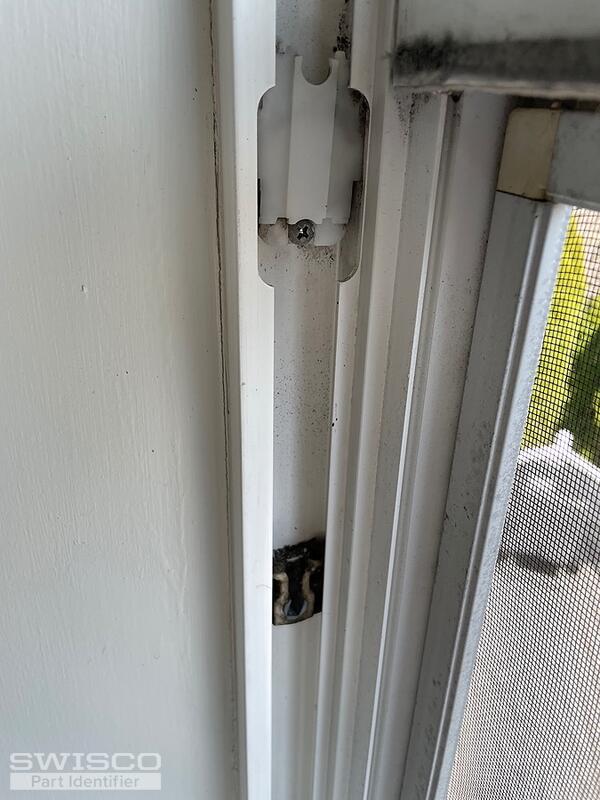

Thank you! Your pivot shoe looks like the 15-111. This uses the 1/2" thick Series 160 coil balances. You'll have to check the coil's tongue for a stamped weight code.

Please let us know if you have any questions!
