Coil Balance Assembly

Home Owner from Christiana, TN

Oct 6, 2025 2:59 pm

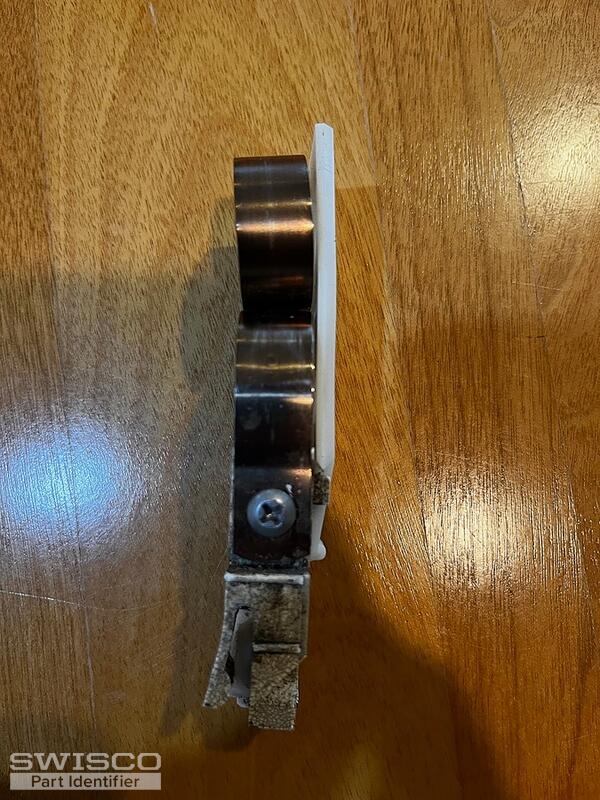

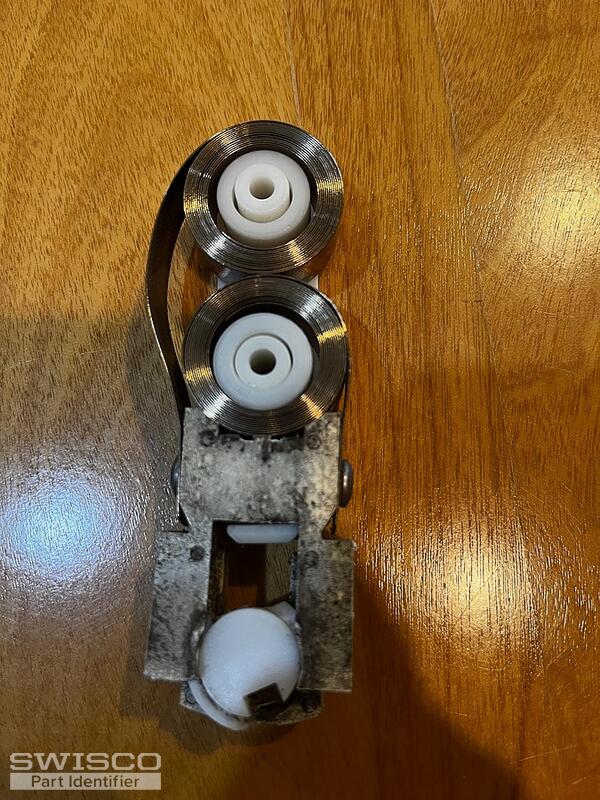

I have 5 windows that have these assemblies, but they are broken and will not stay up when the lower sash is lifted. I hope you're able to identify the assembly with the photos of the assembly and the ID tag that was on the window.

5 user uploaded images

10 Replies

Casey from SWISCO

Oct 13, 2025 10:16 am

Hello,

Your photos resemble the 15-180 Pivot Shoe, which works with Series 190 Coil Balance springs. See the 15-181 support and 15-182 bushing used with this assembly. Thanks for posting!

Alternate image for 15-180

Home Owner from Christiana, TN

Oct 13, 2025 2:20 pm

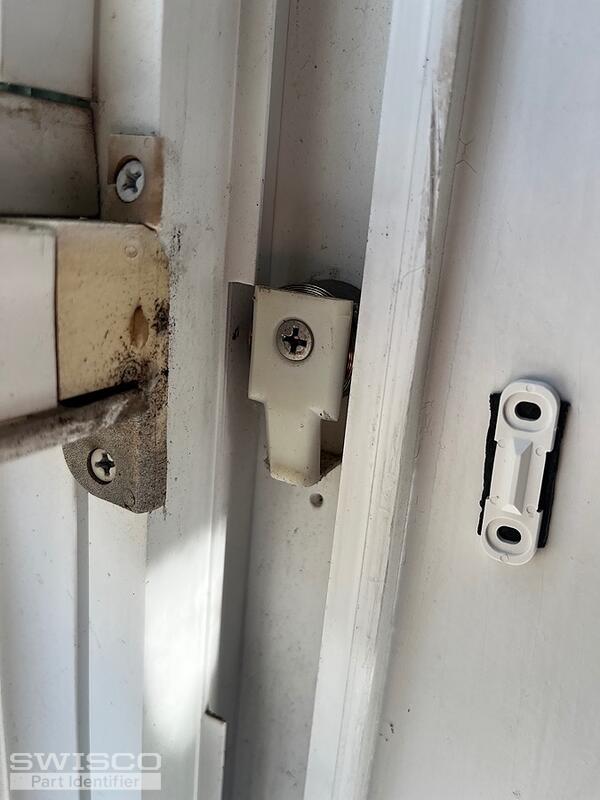

Thx. I do need 3 of the items that you show in the picture. I also need 4 assemblies of the picture shown. It is from a narrower window. Can you tell me what this is off of?

1 user uploaded image

Casey from SWISCO

Oct 13, 2025 2:34 pm

We'd be happy to look into this as well, but we'll need to see the pivot shoe and coil spring uninstalled as well to determine which support would be compatible. If it's the same type of coil balance shown in your original photos, except it only uses one coil spring on each side, see the 15-186 single support clip.

Home Owner from Christiana, TN

Oct 14, 2025 5:11 pm

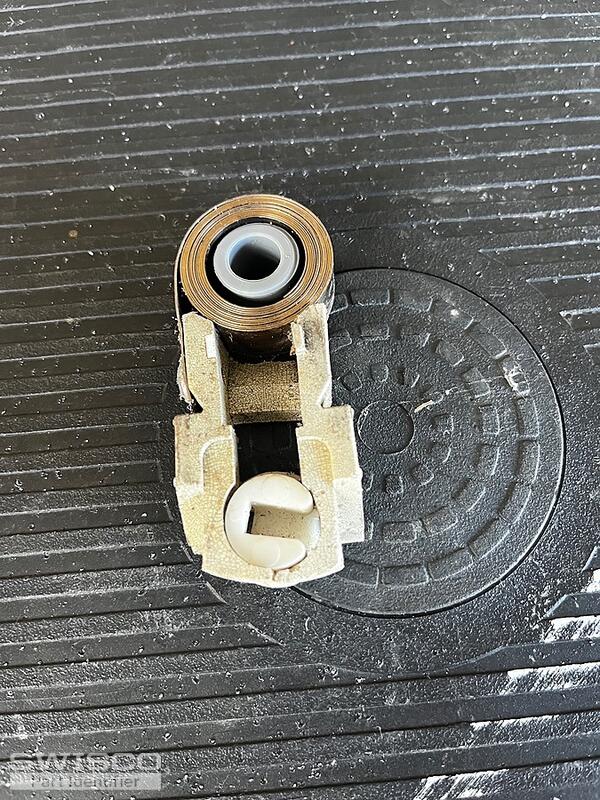

Here is the assembly., But the piece that screws in is broken. However, on the one that is working, it looks like what I'm showing in the previous picture. This is a of the 15–1 86.

2 user uploaded images

Casey from SWISCO

Oct 15, 2025 8:08 am

In that case, you would use the 15-186 single clip, which is also used with the 15-180 shoe and 15-182 bushing.

Home Owner from Christiana, TN

Oct 23, 2025 10:36 am

Hi Casey,
I want a replacement a spring as shown in the last photo. It is one spring only for a smaller window. The number on the spring appears to be an "8" but I don't see this as an option for the Series 190 coil balance springs. Can you tell me which of the options works with this "8" stamp?
Thanks,
Kerry

Casey from SWISCO

Oct 23, 2025 10:49 am

An 8 stamp would correspond to the S190-840, which supports 8 pounds each. One on each side would support a 16-pound sash.

Home Owner from Christiana, TN

Oct 23, 2025 11:17 am

Awesome! Thanks, Casey!

Casey from SWISCO

Oct 23, 2025 11:42 am

We're happy to help and appreciate your business!
