Coil Balance ID

A handy person from New Jersey says:
October 13, 2019
I need too replace the balance in my tilt window
Thumbnail of the uploaded file named 20191013_134830.jpg
Thumbnail of the uploaded file named 20191013_133849.jpg
Thumbnail of the uploaded file named 20191013_141511.jpg
Thumbnail of the uploaded file named 20191013_141519.jpg
Profile picture of Bob
Bob from SWISCO responded:
October 18, 2019

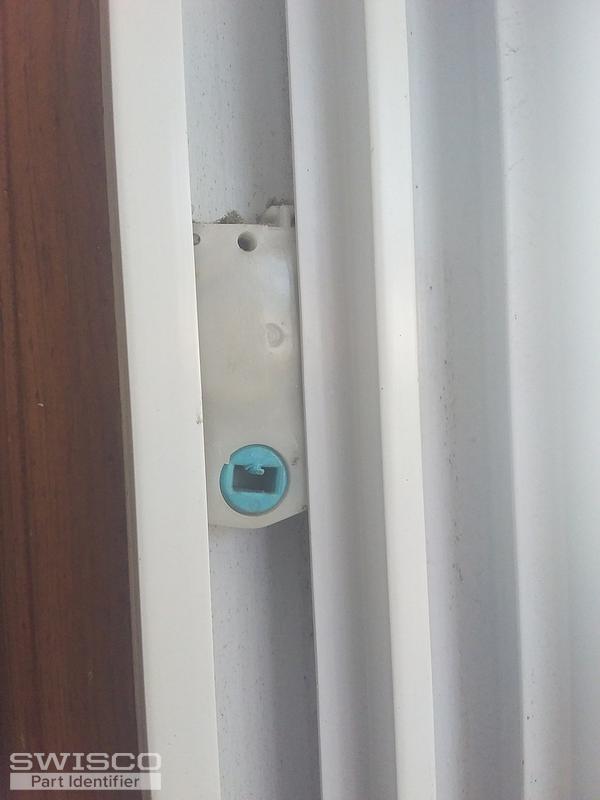

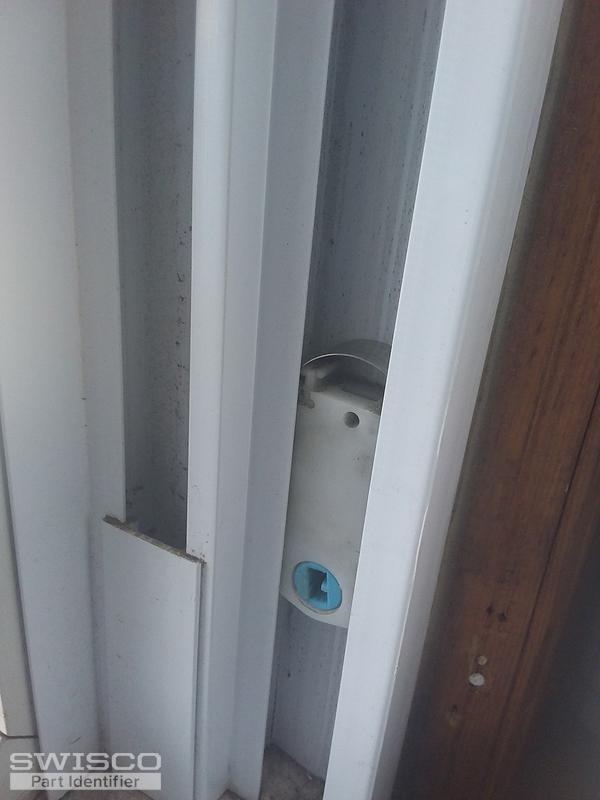

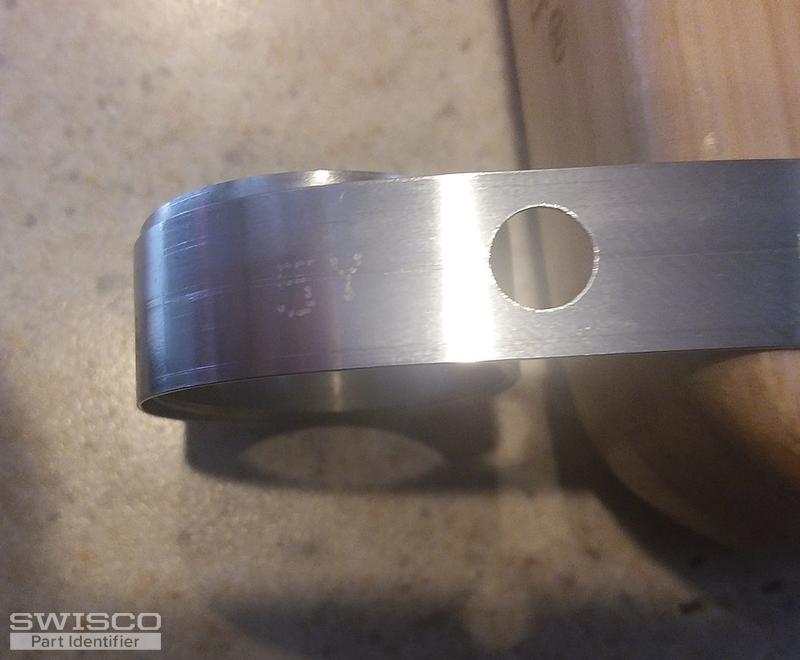

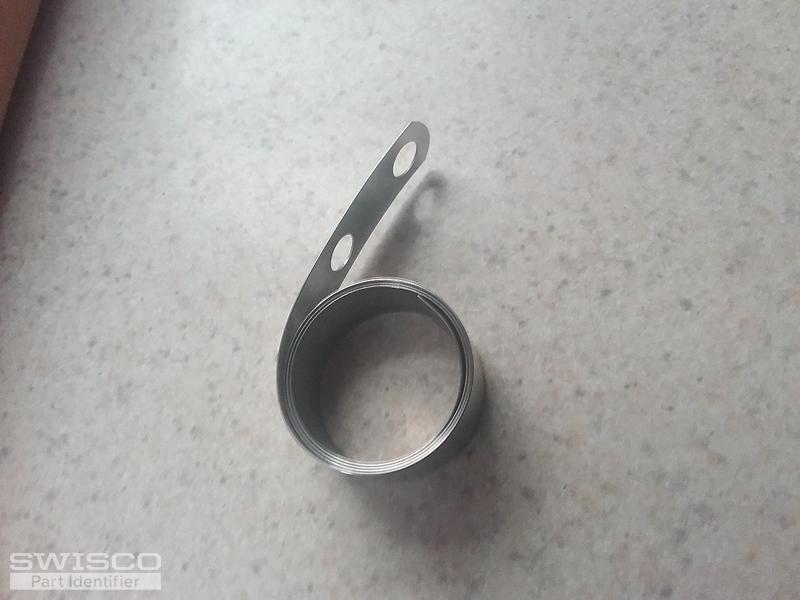

Thanks for writing in. This looks like our 15-087 Pivot Shoe. This shoe is compatible with our Series 180 Coil Balances. A spring stamped '5' indicates you need an S180-5 coil spring, which is meant to hold 5 lbs of weight individually. Let us know if you have any questions.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
5 lbs Series 180 Coil Balance
5 lbs Series 180 Coil Balance
S180-05
$4.37
