Coil Balance Replacement Parts

A contractor from Nanaimo BC says:
June 9, 2011
The Springs on these coil balances are a little different than your style These are set up in tandem but the coils have a different notch
If I changed them using your parts what exactly would I need. include the bottom pivot.
Thanks for your time Jeff

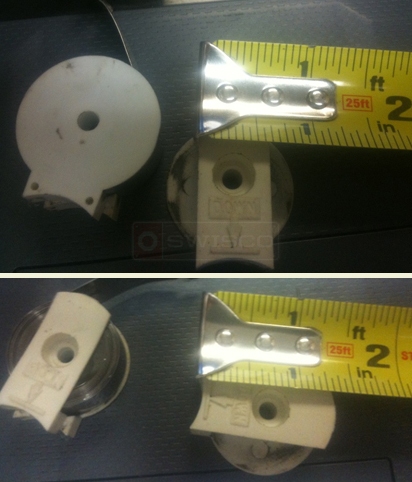

User submitted photo of coil balacnes.
Profile picture of Paul
Paul from SWISCO responded:
June 10, 2011
Thanks for submitting your photos.

Can you submit a few photos of the end of the coil balance and photos of the pivot shoe? This will help us with researching a possible replacement.
A quick learner from Nanaimo BC Canada says:
June 10, 2011

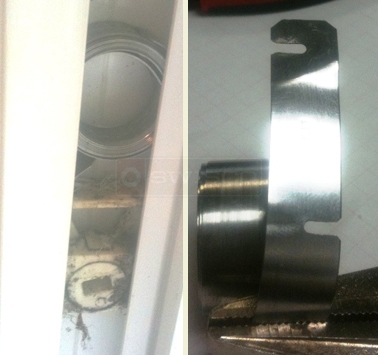

First pic is the pivot shoe
Next is is the end of the coil spring
User submitted photo of end of coil balance and coil and shoe in sill.
Profile picture of Paul
Paul from SWISCO responded:
June 13, 2011
Jeff, is there a number printed on the coil?
A quick learner from Nanaimo BC says:
June 14, 2011
Yes there is a number 5 stamped on the spring
The bright area of the photo blocks the view
Profile picture of Paul
Paul from SWISCO responded:
June 15, 2011
Thanks for getting back to us.

Unfortunately the manufacturer of these balances has discontinued this specific Series, the one you're replacing. They recommend us the Series 152 as a replacement. You will have to replace your spring with the S152-5 Coil Balance and the housing 15-158 Coil Balance Shoe. You should be able to use the rest of your original parts.
Coil Balance Shoe
Coil Balance Shoe
15-158
$2.85
5 lb Series 152 Coil Balance
5 lb Series 152 Coil Balance
S152-5
$4.80
