Coil Balance Shoe

Start a new Discussion

Contractor from Toms River, NJ

Nov 7, 2024 12:20 pm

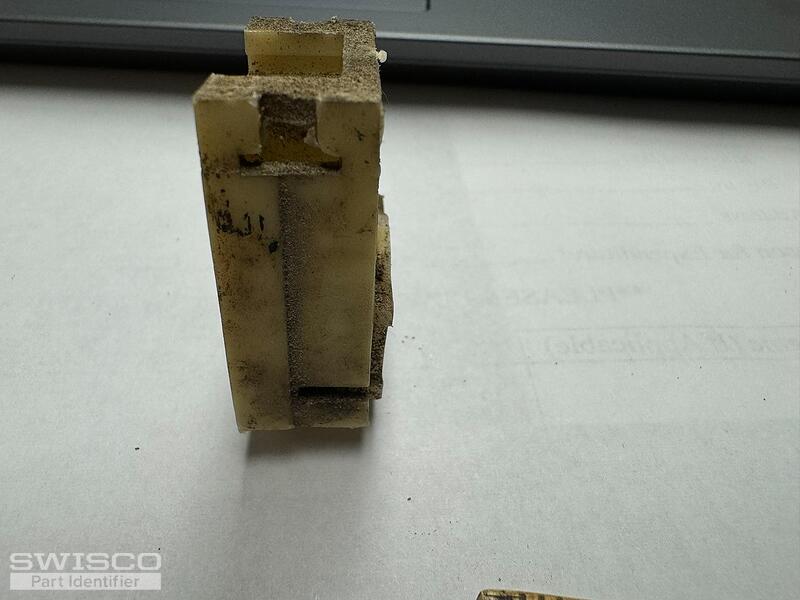

Hi, I would appreciate help identifying the following parts so that I may order 6 of each.

Thanks!

Bob

5 user uploaded images

5 Replies

Lauren from SWISCO

Nov 8, 2024 2:50 pm

Hi Bob, thank you for posting,

We do not carry this exact shoe, but may be able to assist with an alternative option. To further review, can you confirm the width of the shoe? I cannot get an exact read from the image.

Can we also see the coil spring that goes with this shoe and provide the thickness of it? Thank you!

Contractor from Toms River, NJ

Nov 12, 2024 12:46 pm

Hi.

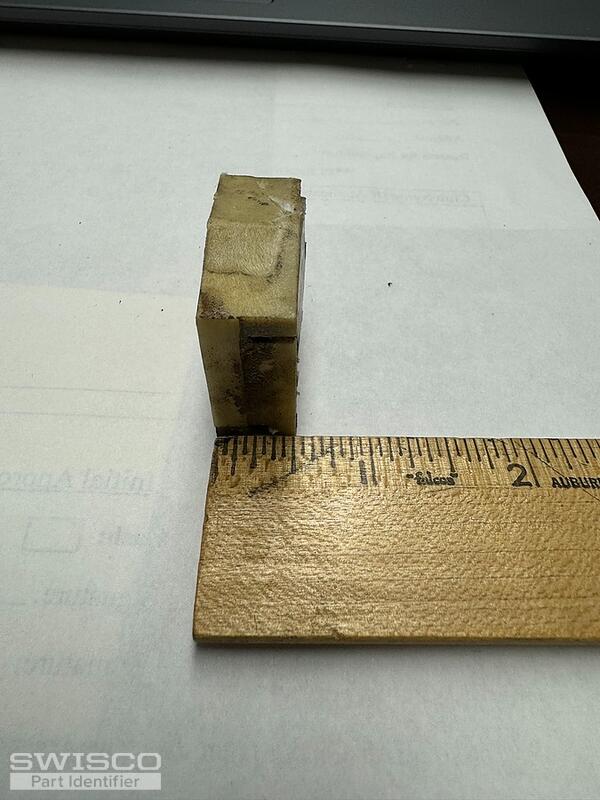

The depth as it fits in the channel is 0.66"
The height is 1.4"
The width as it fits in the channel is 1.33"
Thanks!
Bob

Lauren from SWISCO

Nov 13, 2024 12:20 pm

Thank you,

I am going to have one of our senior experts review to see if we can supply a suitable replacement option. We will be in contact as soon as more information is available. Thank you for your patience!

Paul from SWISCO

Nov 14, 2024 12:38 pm

Hello,

We do not carry an exact match based on the dimensions provided, but our closest option is the 15-228 pivot shoe that is compatible with the 1/2" thick Series 160 coil springs. We cannot guarantee a direct fit, but review below to see what you think!

Dimensions for 15-228

If you would like to move forward with this shoe, can you provide the weight of the window sash to confirm the correct weighted springs? Thank you!
