Hi Again..., Yesterday we discovered that our tenant damaged the vertical sliding mechanisms in two (identical) double hung window. We think she forced the upper sash down, breaking the balance shoe and the support clip.
I've looked thru your site and think I've figured out the components needed to make the repair, but would appreciate your input and confirmation.
The two components I've located on Swisco site:
#15-180 'Coil Balance Shoe'
#15-181 Double Support Detent Clip
I've attached pictures of what we have currently for your input. Thanks!! Brent

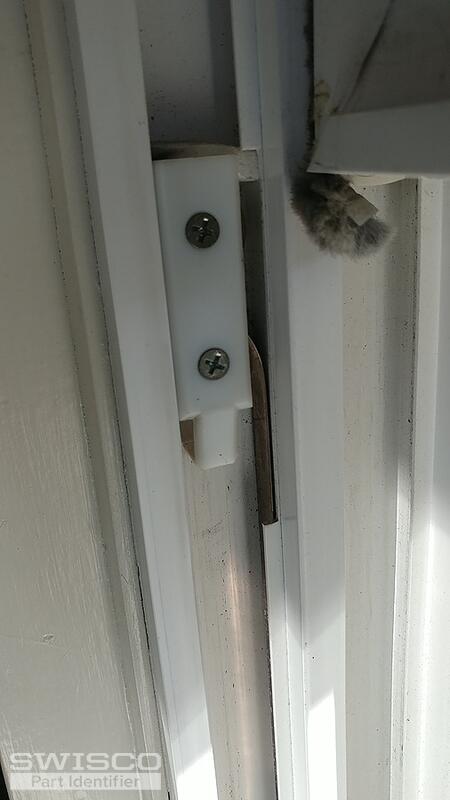

Coil Balance Shoe & Double Support Detent Clip
Quick Learner from Forestville, CA
Nov 19, 2022 9:13 am
3 user uploaded images
3 Replies
Quick Learner from Forestville, CA
Nov 20, 2022 1:42 pm
Hi, I took more pictures of the 'coil balance shoe' that I was inquiring about on your reference # D274405 inquiry from Sat (11/19) morning. These additional pictures are attached here.
Based on the measurements of that existing shoe in an identical window, we believe your Product Code (part) #15-180, will fit perfectly. Measuring the same part on another (not broken) window, the existing part measures width (1 1/4") depth (17/32") and height (2"); the same as the measurements as your #15-180.
Appreciate your input.
Brent
Based on the measurements of that existing shoe in an identical window, we believe your Product Code (part) #15-180, will fit perfectly. Measuring the same part on another (not broken) window, the existing part measures width (1 1/4") depth (17/32") and height (2"); the same as the measurements as your #15-180.
Appreciate your input.
Brent
1 user uploaded image
Casey from SWISCO
Nov 23, 2022 2:48 pm
Hi Brent,
Based on your photos, I agree that you would need to 15-180 pivot shoe, which uses S190 coil springs, 15-181 double support, and 15-182 bushing. There should be numbers stmaped on the base of your coil springs that you would use to choose the correspinding strength options. Thanks for posting!
