Coil Balance inquiry

Question

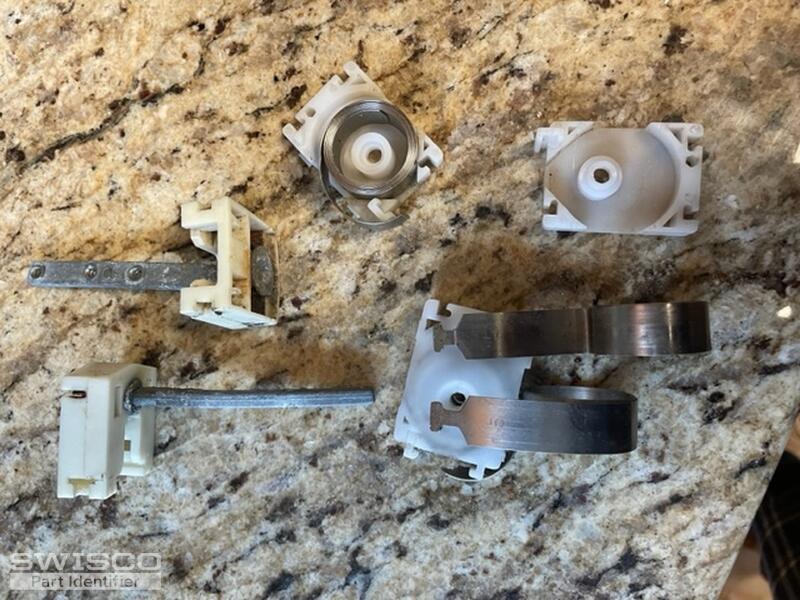

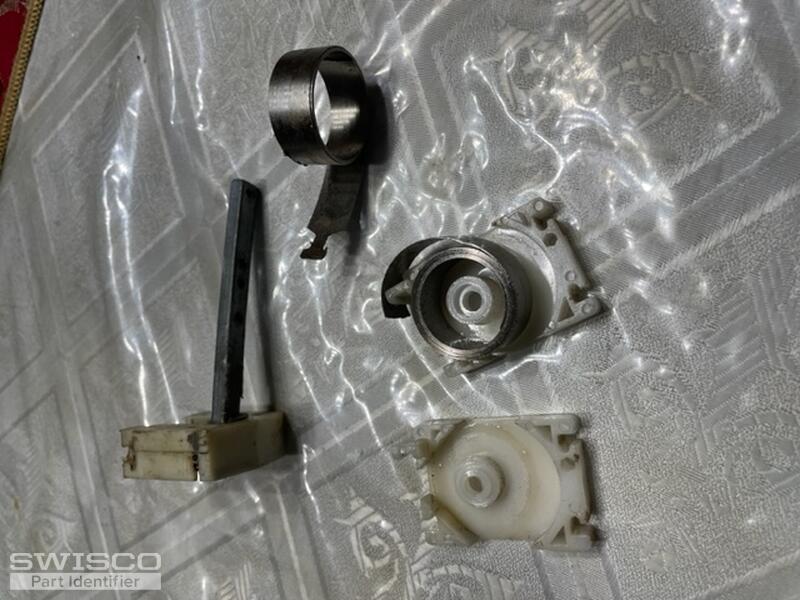

1. It's is only 1 window it ha springs broken on both sides.
2. Spring width is 1/2 inch. Window is 10 Lb.

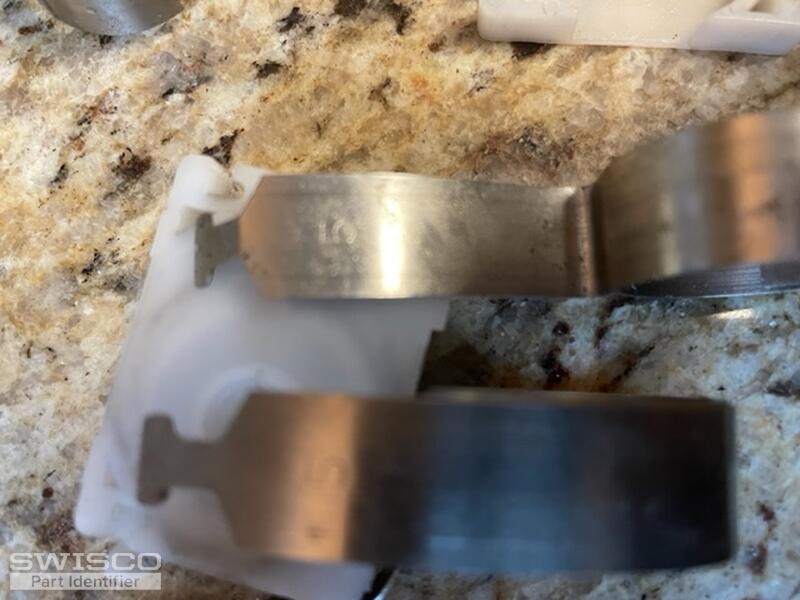

3. The stamp on spring is "5" so I suppose I need 2 x 5.5 Lb springs.

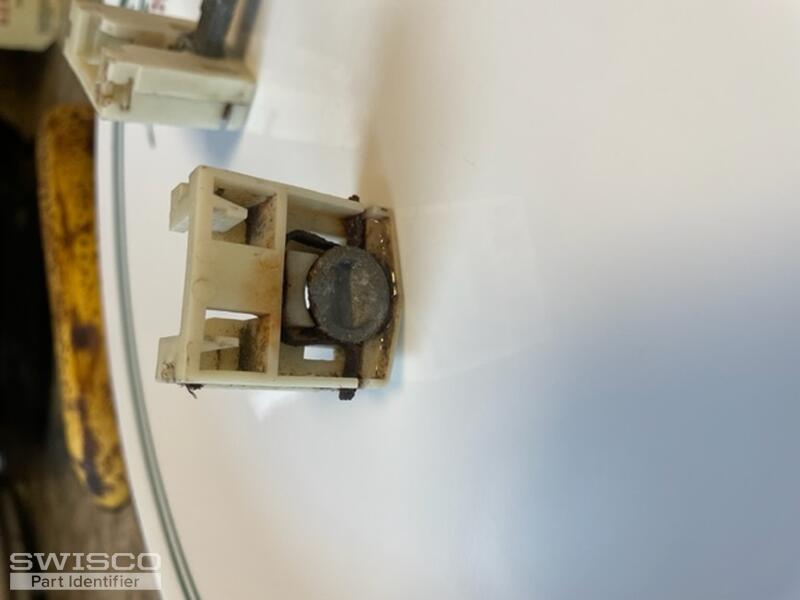

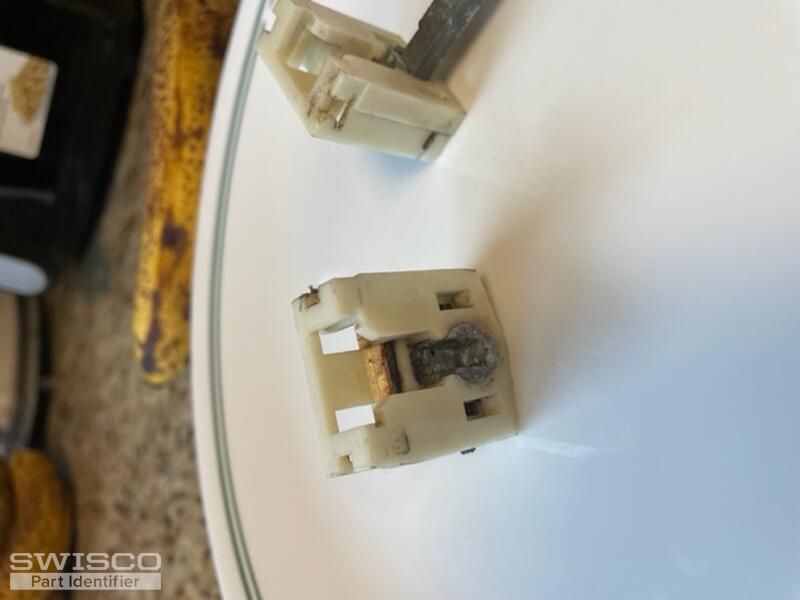

Do you have exact pivot shoes number in case I need them
I have ordered 2 x 5.5 Lb 1/2 inch wide spring coil balance.

Casey · Accepted Answer

Hello,

Take a look and compare the specifications of the 15-263 pivot shoe to yours. Unfortunately, we do not carry 5.5-pound springs for this assembly but you should be able to use one S195-4 coil on each side of the window to support your 10-pound sash. Take a look and see what you think.

Dimensions for 15-263
