Coil Balance inquiry

Quick Learner
May 17, 2024 9:22 am

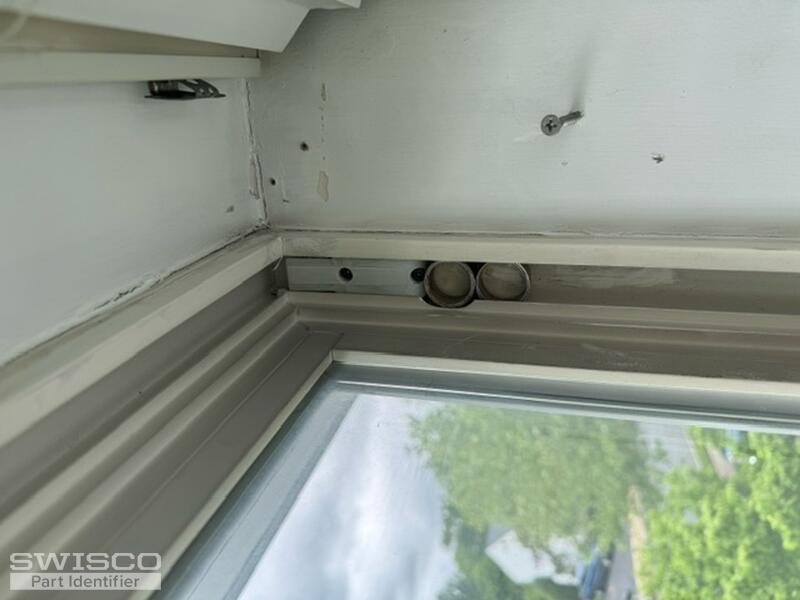

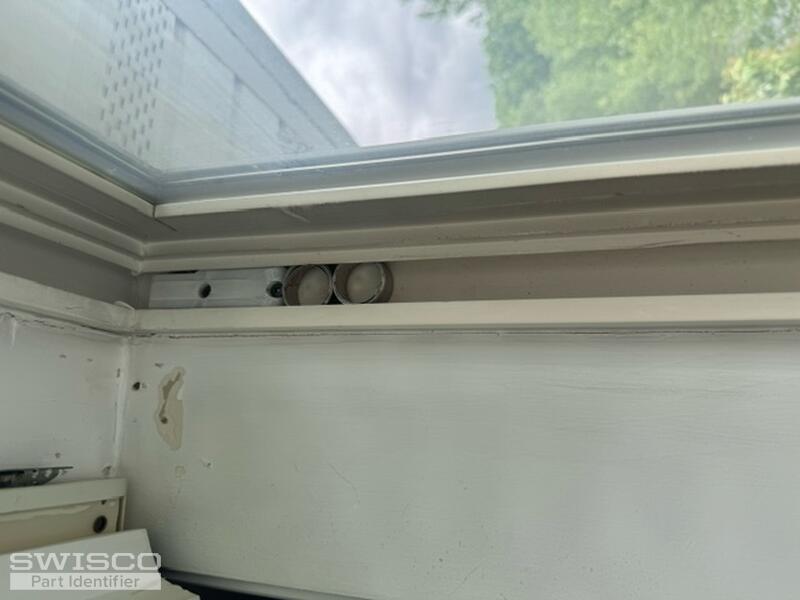

I have six windows that need the spring assembly's replaced please see attached picture and let me know if you have these parts.
pivot shoe image1 (3) image0 (1) image1 (5) image0 (2)
5 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
May 21, 2024 9:36 am
SWISCO
EXPERT

Hello!

Our 15-111 pivot shoe looks like a comparable match. This uses the 1/2" thick Series 160 coil springs or the 3/8" thick Series 165 coil springs. You'll have to measure the thickness of an old spring band to confirm the proper springs.

Let us know if you have any questions!
