Coil Balance and Pivot Bar

A quick learner from San Antonio says:
May 29, 2023

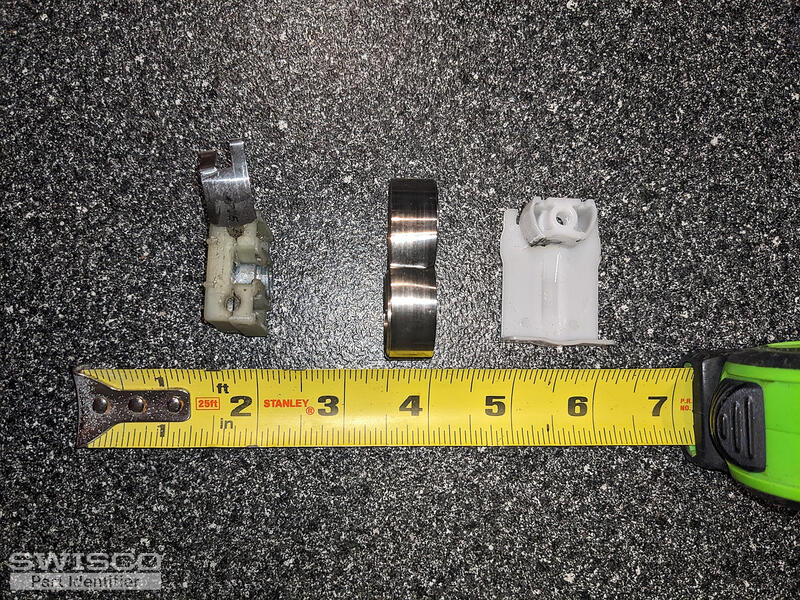

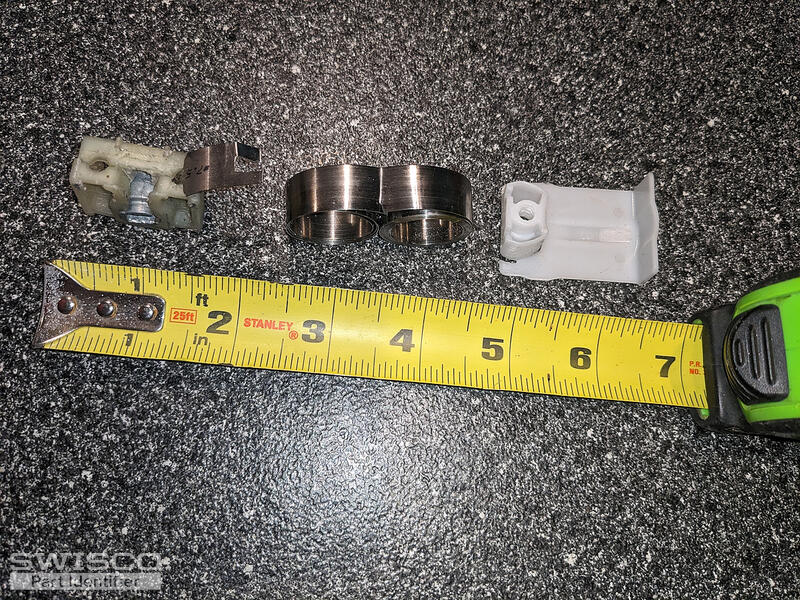

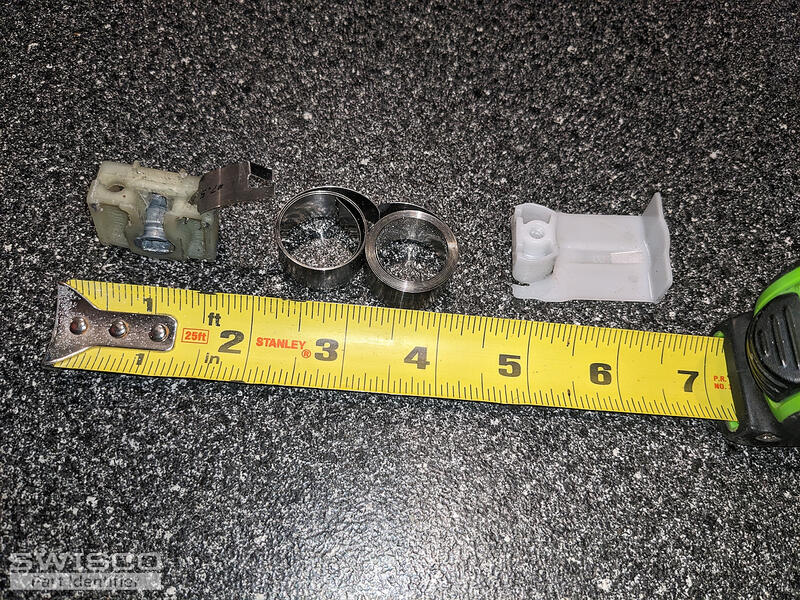

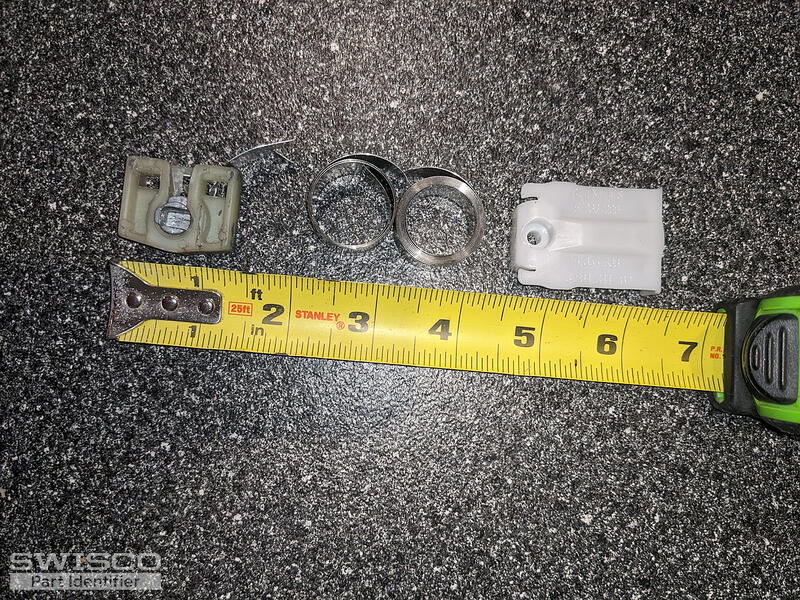

I am looking to replace this Coil Balance. The photos show the old one, and the Pivot Bar that we just replaced that fit the window. Can you tell me which parts (Coil Balance and Pivot Bar) would work?

Thanks
Thumbnail of the uploaded file named PXL_20230529_151616925.jpg
Thumbnail of the uploaded file named PXL_20230529_151638290.jpg
Thumbnail of the uploaded file named PXL_20230529_151648872.jpg
Thumbnail of the uploaded file named PXL_20230529_151726290.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
June 1, 2023

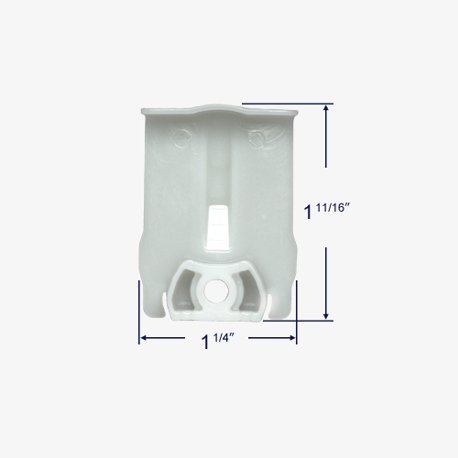

Hey there! Take a look at the 15-111 as a replacement for your pivot shoe. I am confident this is the replacement you'll need however, you'll want to confirm the dimensions shown on the diagram below.

Detail of 15-150S
Detail of 15-150S

The coil springs compatible with this shoe are the Series 160 coils. To determine which coil you'll need, check the metal coils for any stamps/markings that will indicate spring strength. If there are no stamps/markings you'll need to take the exact weight of your window and divide it by the total number of coils.

The compatible single cover is part 15-150S.

Thanks for writing in!
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
