Coil Balancer Assm - MI Capital Window

Landlord from Dennis, Ma

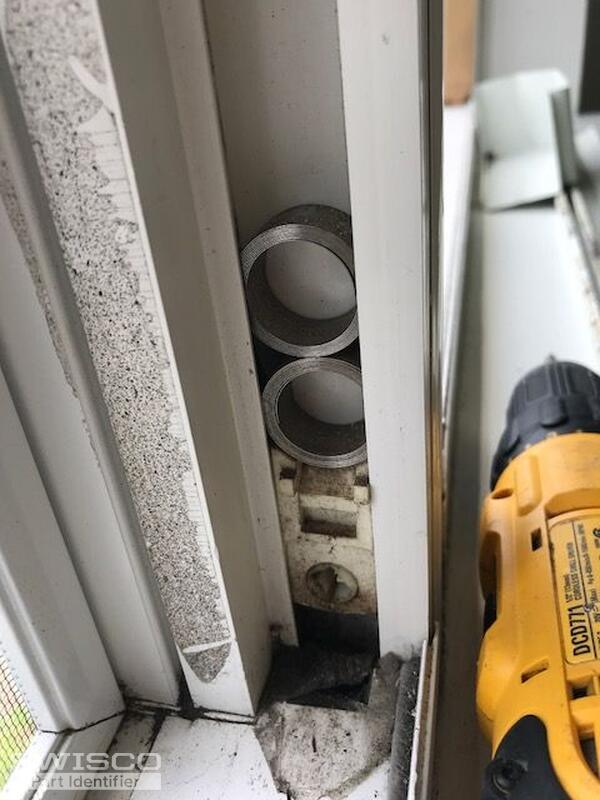

Hello, I am trying to locate the parts shown. The coil is 1/2 inch in width and fits an MI- Capital window 3050 SH. I will need both left and right assm. in a quantity of 10 EA

Thank you,

Mike

4 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hey, Mike. Based on your pictures, I recommend our 15-180 pivot shoe, Series 190 spring, 15-181 detent clip, and 15-182 bushing.
