Coil Spring Assembly, AW Windows

Start a new Discussion

Quick Learner from Chicago

May 21, 2019 12:29 am

Would like replacement parts for spring and two othe parts shown.

4 user uploaded images

4 Replies

Casey from SWISCO

May 22, 2019 9:40 am

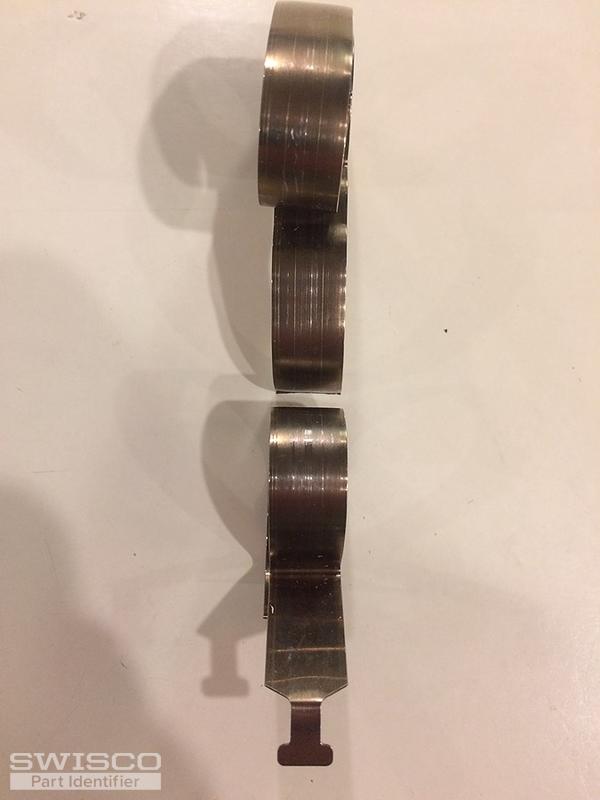

Hi there, we're happy to help with this. It appears you have a 1/2" wide coil like our Series 160. You'll need to check the tongue of the coil for a number to correspond with the weight. Do you have one or two coils on each side of the window?

As far as additional parts, would you mind specifying which ones you need?

Quick Learner from Chicago

May 22, 2019 10:10 pm

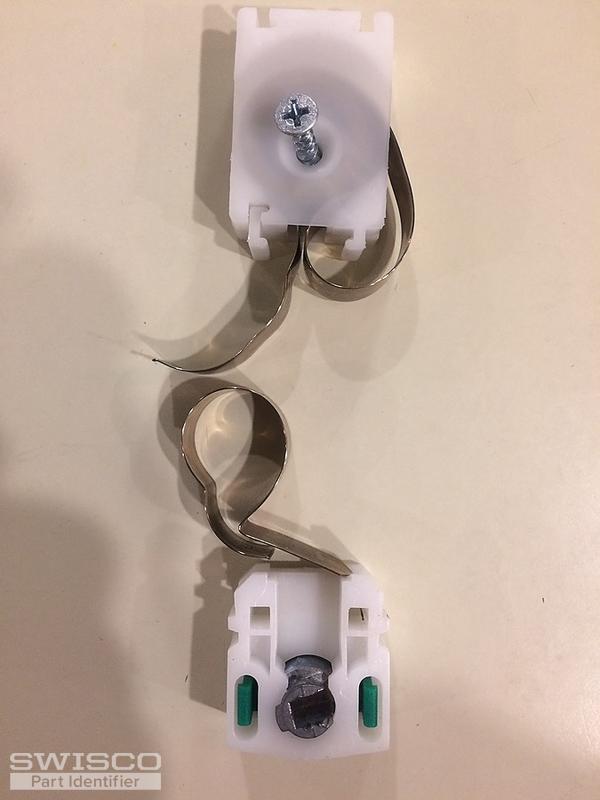

Three of the four pictures contain the pivot shoe and the coil holder. Would like replacement part numbers for these. And thank you ahead of time.

1 user uploaded image

Casey from SWISCO

May 23, 2019 11:02 am

Gotcha, so you're looking for the whole shebang. Your shoe and cover don't looked damaged so I wasn't sure if you were referring to these or not. I just wanted to confirm. In most cases the shoe and cover can be reused.

In that case, can you give me the width and thickness of the pivot shoe? That would be the bottom part with the rotating metal cam. Yours is different from anything we carry, so we'll probably have to go with a substitute. I'll need the size of yours to confirm the best option to this end.
