Coil balance

Quick Learner

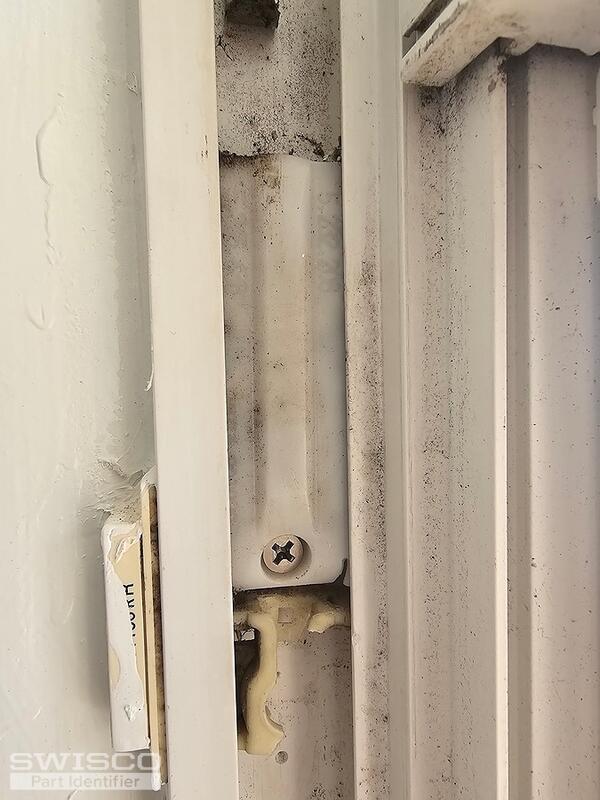

Please advice what coil balance need for these windows
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

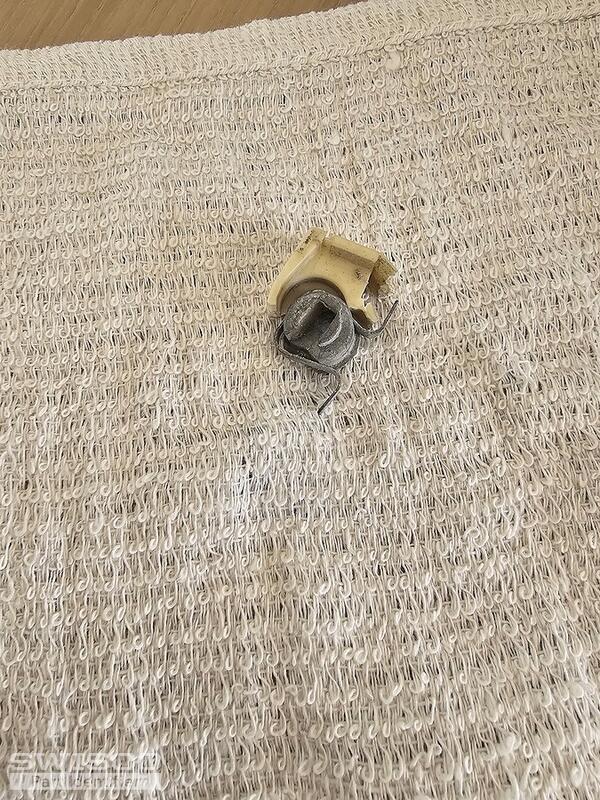

Hello there. This looks like a 15-111 Pivot Shoe. This shoe works with the 1/2" thick Series 160 Coil Balances, or the 3/8" thick Series 165 Coil springs. You'll need to remove your old assembly and measure the thickness of the coil springs to determine which Series you need. See the videos below. Let me know if you have further questions.

Reply to Thread
Current Photos:
