Coil balance

A handy person from Philadelphia says:
July 13, 2019
My window right side of coil balance was broken, and I need to replace it. Here is my window model info-
Silverline CPD# SIL-N-5
8501 double hung vinyl dua glazed
18892216*1*5*1.2

It was installed in 2011.
If you could help me to ID the replacement part, that will be great.
Thank you so much!!
XG
Profile picture of Casey
Casey from SWISCO responded:
July 18, 2019

Greetings! We can certainly help with this. It helps to know that this is for a Silverline window, but we'll still need to see a photo of your coil system to determine the right replacement. From there, we'll let you know exactly what you need!
A handy person from Philadelphia says:
July 20, 2019
Photo added
Thumbnail of the uploaded file named 8C2D6675-1AC5-46D2-8030-A830DEB47DBF.jpeg
Thumbnail of the uploaded file named CF18B5A5-A75B-4D08-AEA8-EC94A077D5A7.jpeg
Thumbnail of the uploaded file named AFBBBFF8-7878-48F2-8C14-9D055EB28891.jpeg

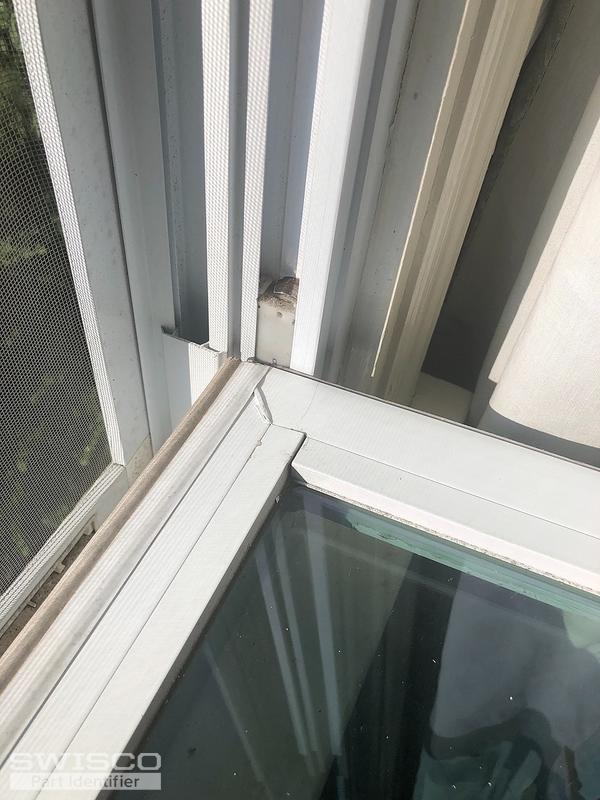

Thumbnail of the uploaded file named 9C5E2D16-0C19-42DF-B640-0058E346DB42.jpeg

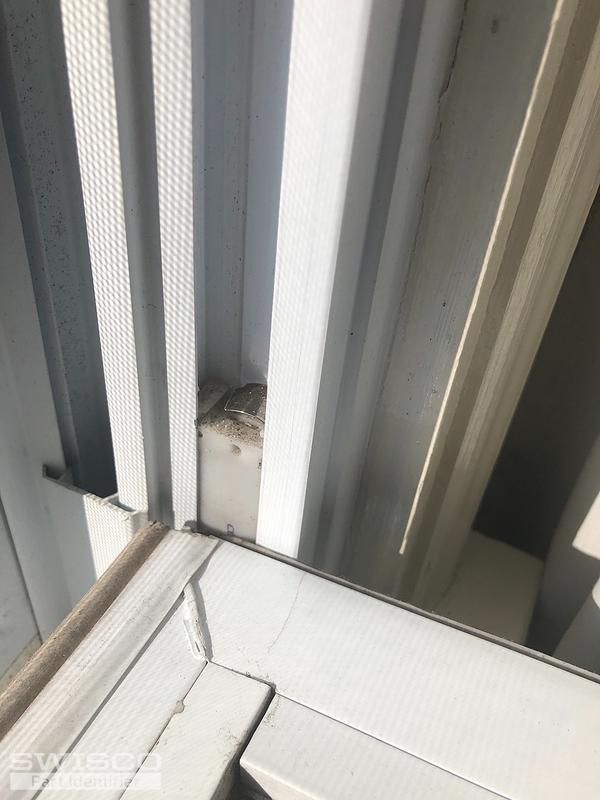

Thumbnail of the uploaded file named 2A9D0D82-B479-4C5F-8A18-B7EA6281111F.jpeg
Profile picture of Bob
Bob from SWISCO responded:
July 22, 2019

Thanks for getting back to us! I still can't quite see the pivot shoe in these photos, but I'm pretty sure you're working with the 15-087. This is compatible with our Series 180 Coil Springs. Let us know if you have any further questions!
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
Mounting Bracket
Mounting Bracket
16-024
$0.66
#8 x 3/8" SS Pan Head Philips Screw
#8 x 3/8" SS Pan Head Philips Screw
33-072
$0.30
