Coil balance

A home owner from Youngstown OH says:
I have a 3inch double pane vinyl window. I need to replace the coil balance but I do not know exactly what I need. The manufacturer was Weather Tite Windows in Youngstown OH who is out of business. Would you be able to help with the parts? Please let me know if you need additional information
Thumbnail of the uploaded file named Assembly Width.jpg
Thumbnail of the uploaded file named Gray part with numbers.jpg
Thumbnail of the uploaded file named Length.jpg

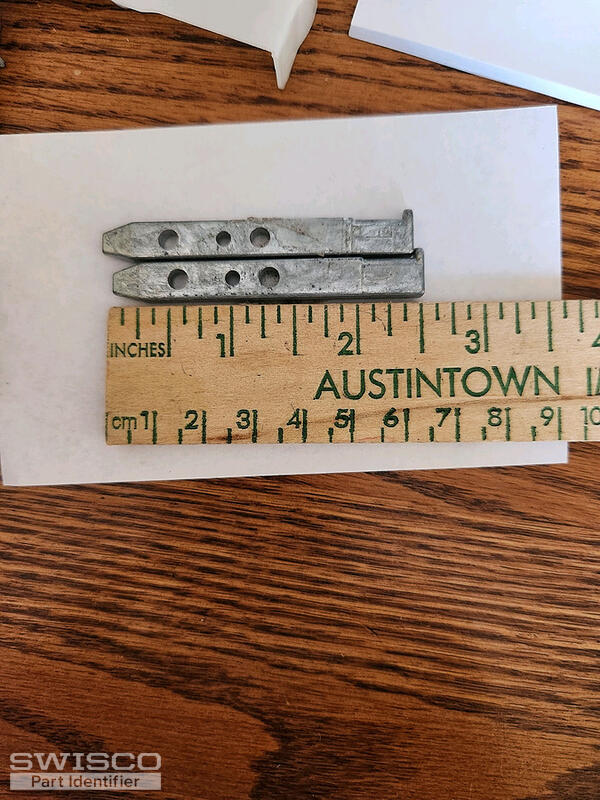

Thumbnail of the uploaded file named Tilt window sash pivot pin.jpg

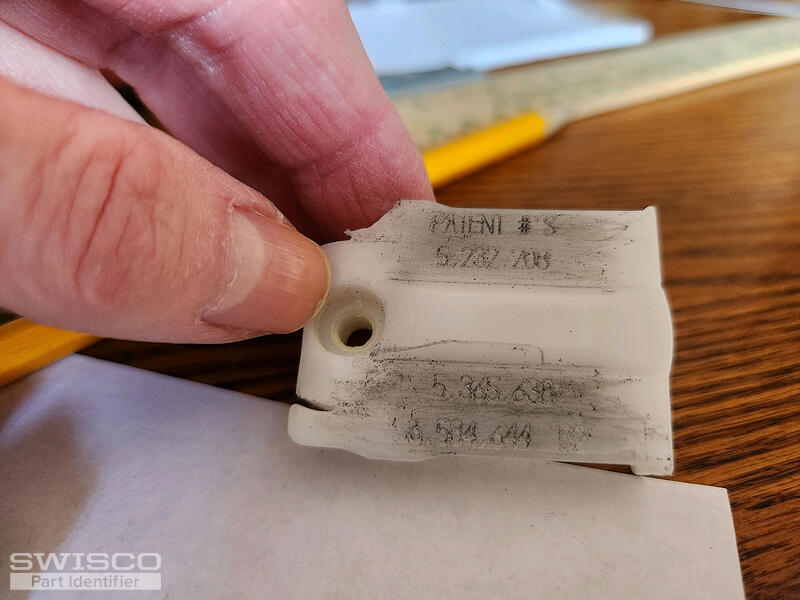

Thumbnail of the uploaded file named White part with numbers 2.jpg
A home owner from Youngstown OH says:

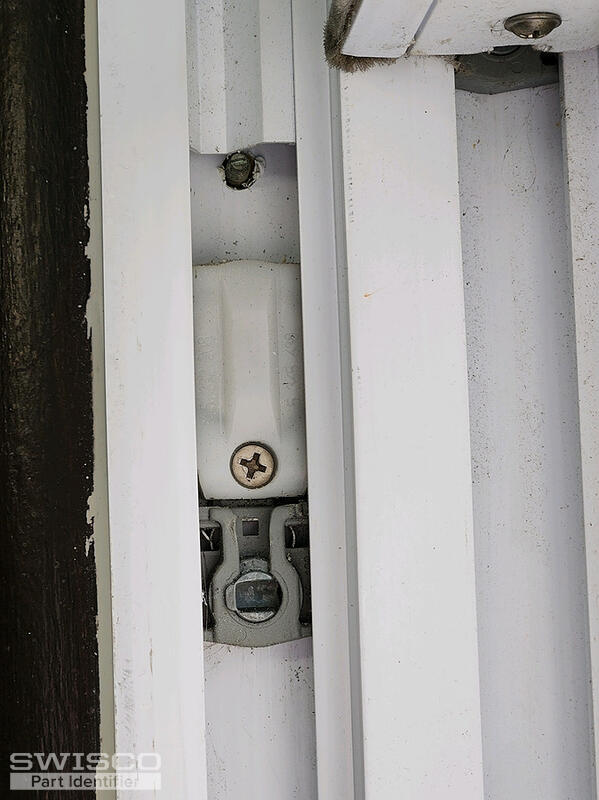

Here is the installed assembly

Thank you
Thumbnail of the uploaded file named Installed assembly.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Your photos resemble the 15-191 pivot shoe, which uses the Series 160 coil springs. Take a look and compare the specifications shown on our product pages to yours.

As for the pivot bar, take a look at the 26-444. Thanks for posting!

Alternate image for 15-191
Alternate image for 15-191

Alternate view of 26-444
Alternate view of 26-444

A home owner from Youngstown OH says:
I need the entire assembly with the coil. Can you suggest a part that would be compatible?
Thumbnail of the uploaded file named Installed assembly.jpg
Profile picture of Casey
Casey from SWISCO responded:

Sure. As we mentioned, your pivot shoe uses the S160 coil springs. You'll need to remove yours to confirm the stamp code printed on the coil base, which you'll use to choose the corresponding strength option. Also, see the 15-150S support.
