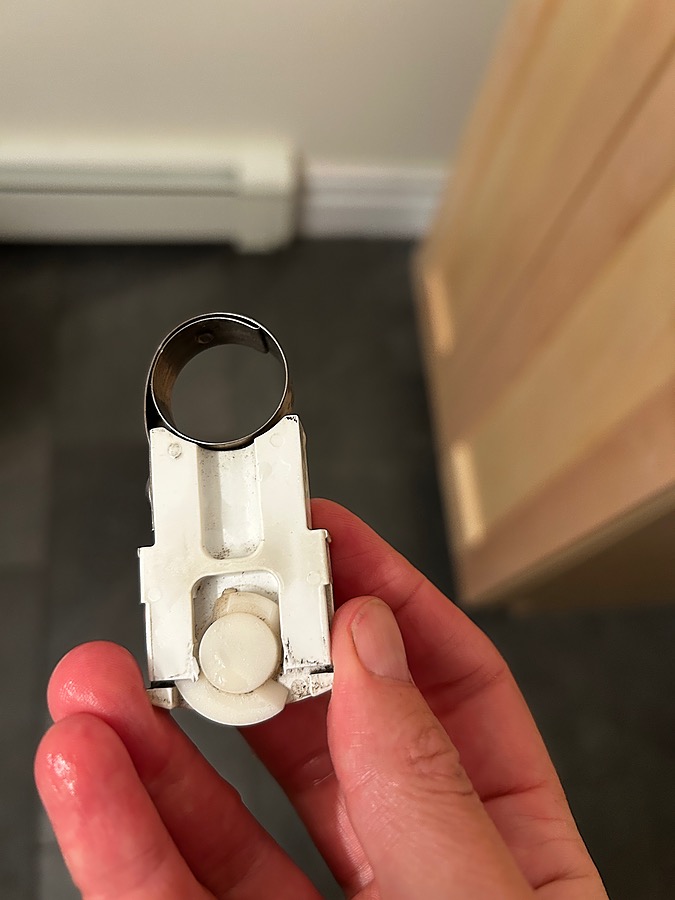

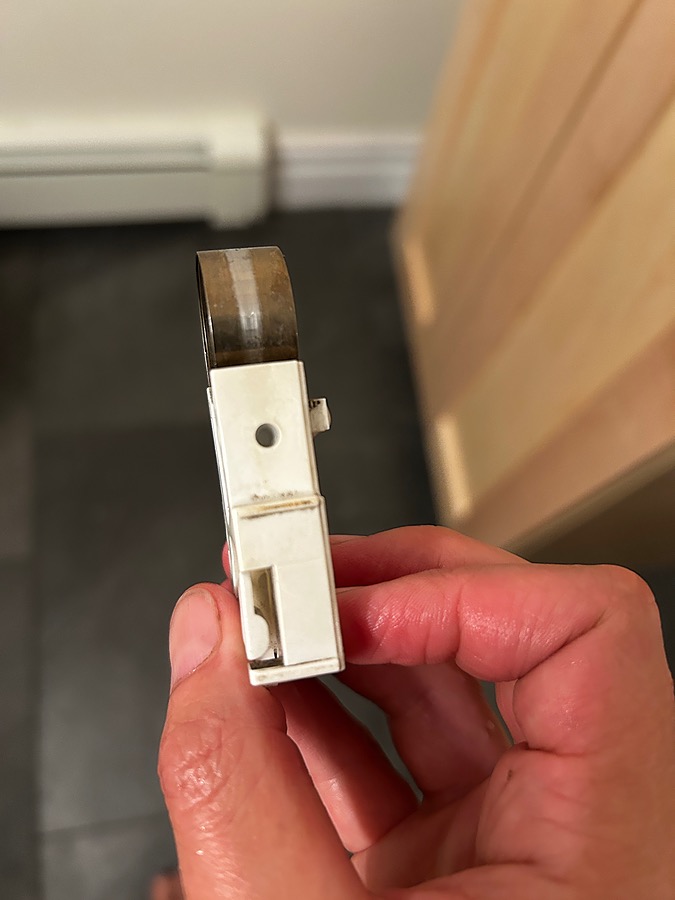

Coil balance

Hello,

We do not have your exact shoe but the 15-180 Coil Balance Shoe should work to replace it. To confirm, carefully look over the dimensions and compare them.

There is a chance you'll need to replace the pivot bar but I'll need to see the original to confirm and determine the best option.

Alternate image for 15-180

This shoe uses the Series 190 Coil Balance; attached using the 33-073 screw. They are anchored to the window jamb using the 15-186 Coil Balance Clip and 15-182 Coil Bushings

For instructions on selecting the correct coil weight option, take a look at the tutorial tagged below.
