Coil balance ID

Question

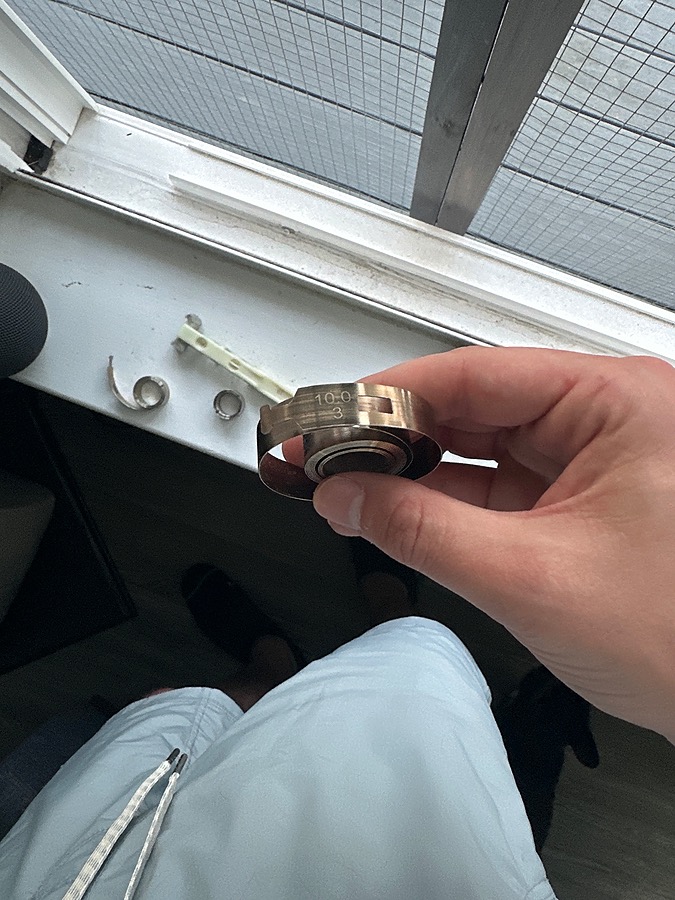

Unsure what happened to my right side assembly, one of the coils slipped out of the housing. One coil has "#90 35" " marked on it, another has "10.0" and "3" marked on it.

Jasmine · Accepted Answer

You'll need the 15-252 Inverted Universal Dual Support and Series 160 Coil Balances to replace the assembly you have. Since your coils are marked with a 9 and a 10 (and the assembly has a 19 on it), you'll need the S160-09 and S160-10 to complete the assemblies.

The bracket can be replaced with the 16-032 Mounting Clip.

Detail of 15-252

The bracket can be replaced with the 16-032 Mounting Clip.

Detail of 15-252
