Coil balance System

A home owner from Illinois says:
October 15, 2022

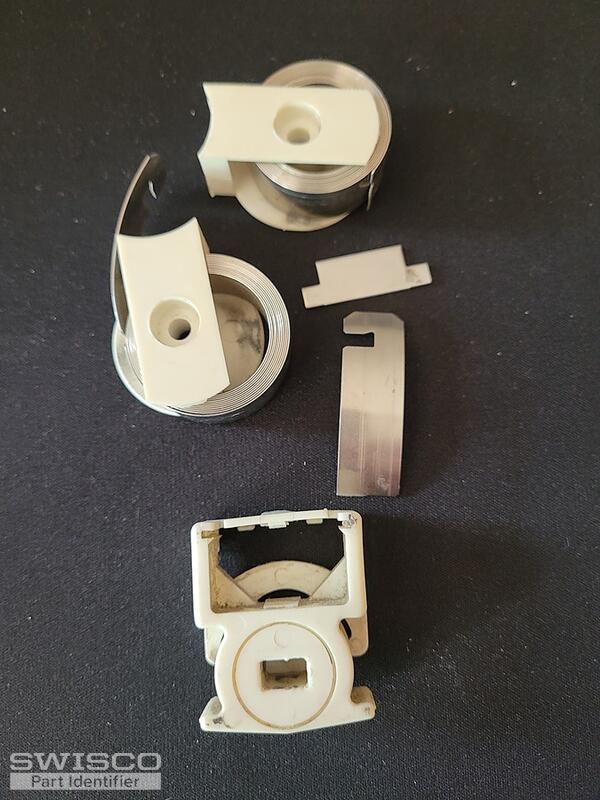

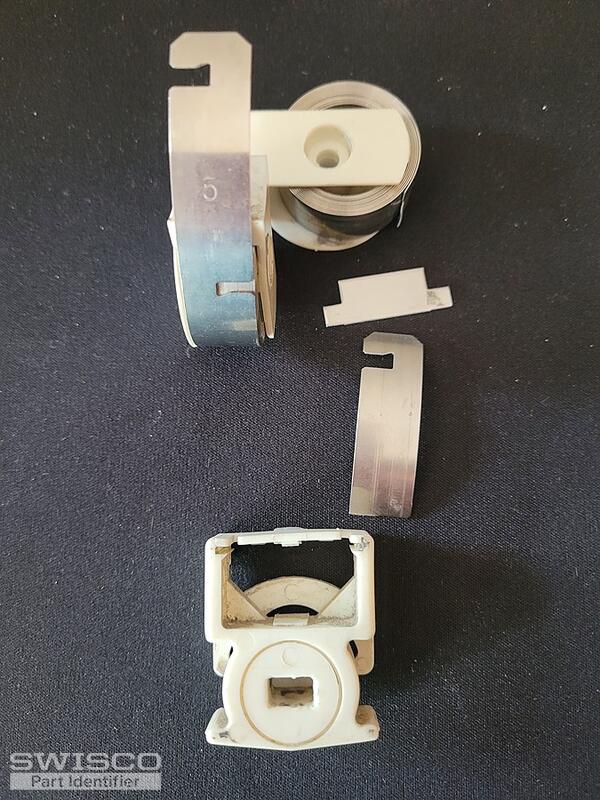

Hi I am looking to replace the window balance systems in 10 windows in my house. My house was built in 1996. I currently have double coil window balances, one coil is #5, I can't see a stamp on the other coil. The windows are single hung vinyl windows, can't tell the manufacturer. The pivot block is 1-1/4" x 1-1/2" x 1/2". The window sash weighs 18 lbs. Do you have a replacement coil part that would work? Can I replace the window balance with a single coil system, or do I need to use a double-coil system?
Thumbnail of the uploaded file named 20221010_134236.jpg
Thumbnail of the uploaded file named 20221010_134244.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 20, 2022

Your balance system has been discontinued by the manufacturer and has been replaced with the 15-140 balance shoe and Series 150 coil spring.

We also sell the 15-144 bushing cap, 15-143 bushing, and 15-145 barrel.
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Balance Shoe
Coil Balance Shoe
15-140
$3.07
