Coil balance broken green shoe

A quick learner from Illinois, USA says:
August 23, 2022
Window will not stay up. The plastic cam housings and pivot lock shoes have cracked under pressure and broken off. I believe part of what I need may be #15-087 balance coil. Not completely positive that this is correct.
The window pane measures 16.5"X31.25".
When I opened and tilted window pane to clean the housing completely cracked and broke into several pieces. The shoe has a green brake pad.

I believe the number on the coil is 6. The coil is actually good on this side of window. It is the plastic pieces I need replaced on both sides of window. Unless comes in a kit.
Two pieces of coil housing
Two pieces of cam lock
One coil #6.
Thumbnail of the uploaded file named Cruick1 5.jpg
Thumbnail of the uploaded file named Cruick1 4.jpg
Thumbnail of the uploaded file named Cruick1 1.jpeg

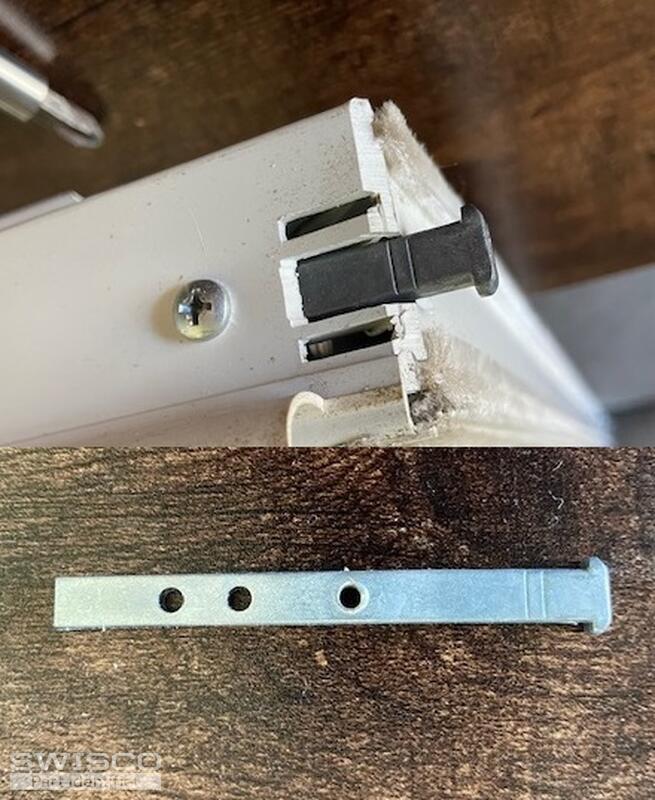

Thumbnail of the uploaded file named Cruick1 3.jpg

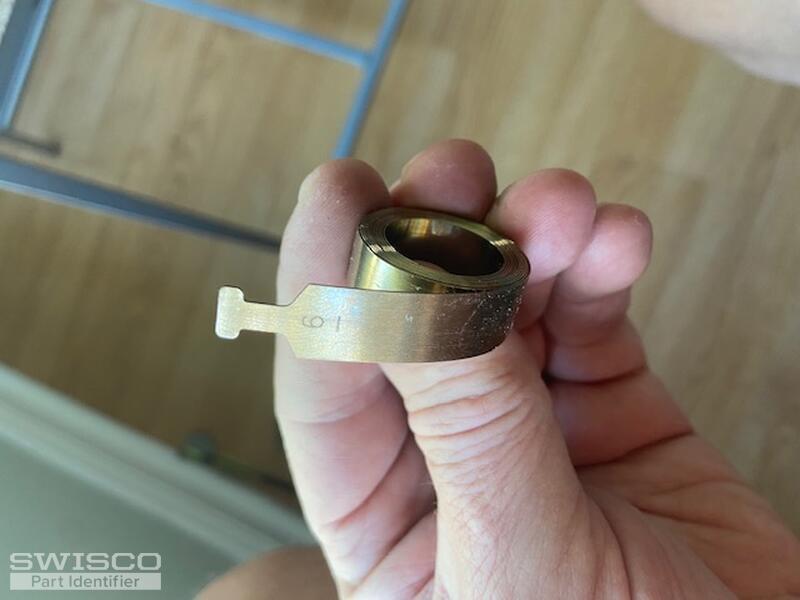

Thumbnail of the uploaded file named Cruick1 6.jpg
Profile picture of Paul
Paul from SWISCO responded:
August 25, 2022

Hey there, thanks for reaching out to us. I don't think the 15-087 will work in this case. It's just a bit too different to be compatible with your existing spring. We have a different balance system that might be a little closer to the original.

Basically, if the pivot bar and coil spring are fine, then I recommend the 15-228 pivot shoe and 15-150S coil spring support. You will lay the coil spring above the bumper and behind the cover of 15-150S and hook the coil spring to the pivot shoe.

The 15-228 shoe is designed to be used with the 1/2" Series 160 spring, but like you said you can likely just reuse your originals.
A quick learner from Illinois, USA says:
August 25, 2022
Thank you for helping me identify the parts I need. I will go ahead and order the parts suggested online. I appreciate your help in getting my window back in service. Have a great day!
Profile picture of Paul
Paul from SWISCO responded:
August 26, 2022

You're very welcome! We appreciate your business.

Please let us know if you had any other questions, we're always here to help.
