Coil balance for a conerstone window

Thanks for reaching out to us! I'm afraid I cannot identify your coil balance assembly using the information provided. I'll need to see a photo of the existing assembly to determine if we can supply the replacements and provide you with an accurate recommendation.

Please don't hesitate to reach out with any questions you might have in the meantime.

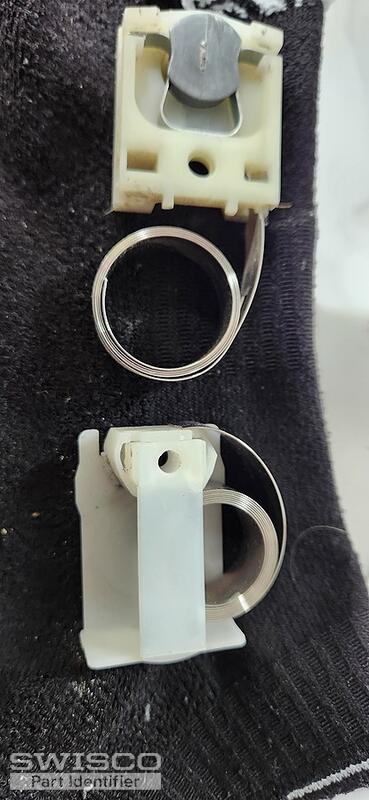

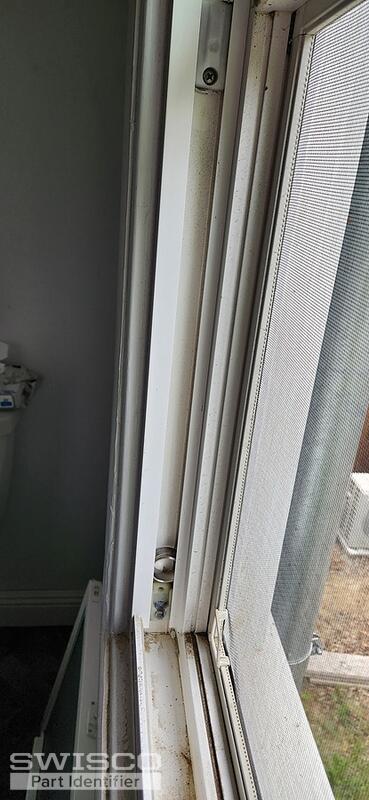

Thanks for the photos. Although, the window track obstructs the view of the balance assembly, so it is difficult to make an accurate recommendation. I'll need to see it removed from the window track to see its design. You'll also need to have it remove to review and compare its dimensions.

Take a look at the video tutorials below if you have any questions about the removal/installation process. Feel free to reach out with any additional questions.

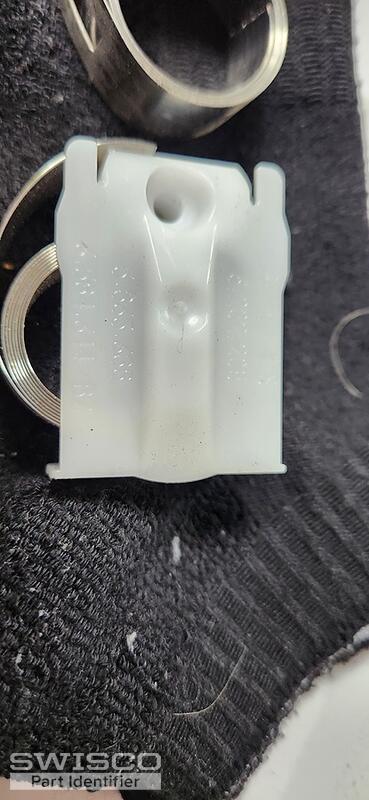

The pivot shoe you have is the 15-228 Pivot Shoe. While I am confident this shoe is an exact match, be sure to look over the dimensions and compare them.

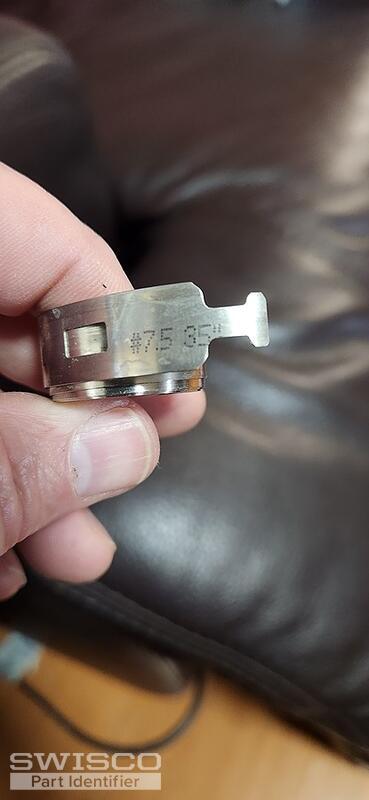

The compatible coil balance spring is the 1/2" thick Series 160. Since yours are stamped with a #7.5, you'll need the S160-07. The cover can be replaced with the 15-150S.

Dimensions for 15-228
