Coil balance id

Contractor from Rhode Island

Hi,

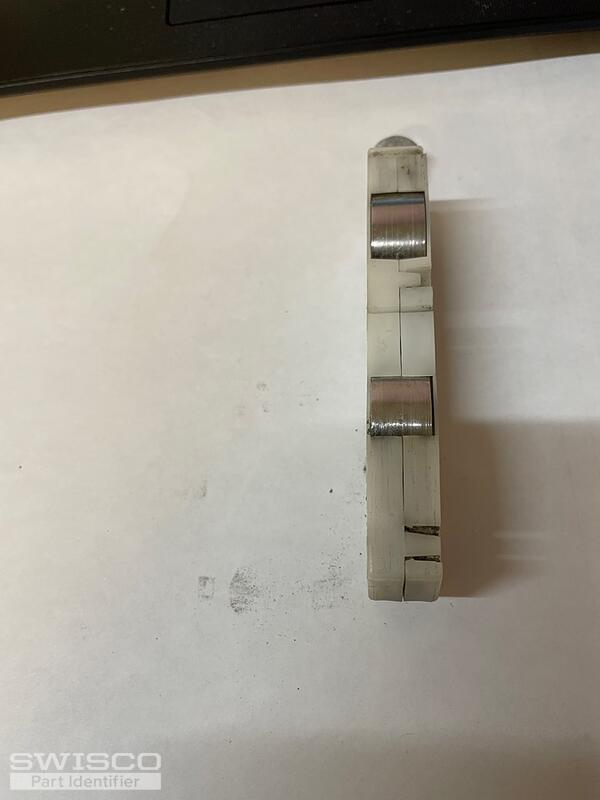

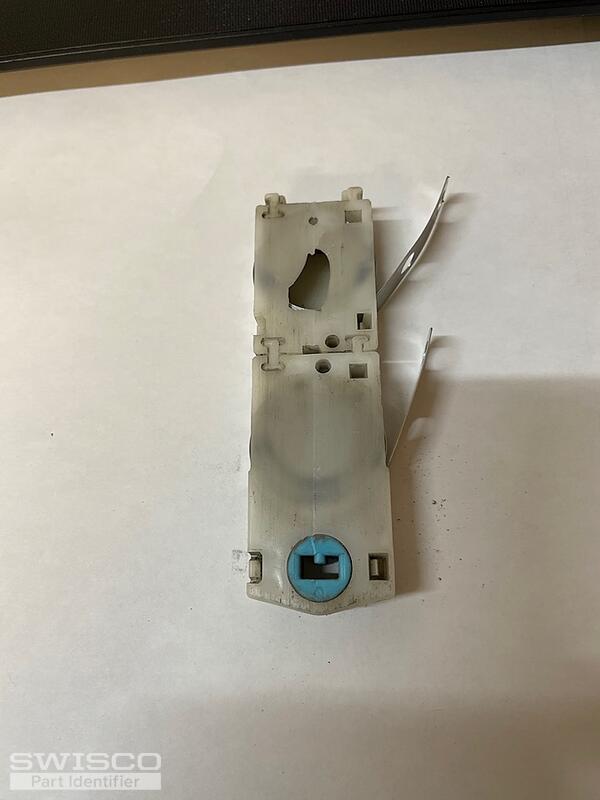

I am looking to match these coil balance/cam assembly. I will need (10) total or (5) pairs.

The window manufacturer is unknown. They are vinyl double hung replacement windows approx. 5-10 years old.

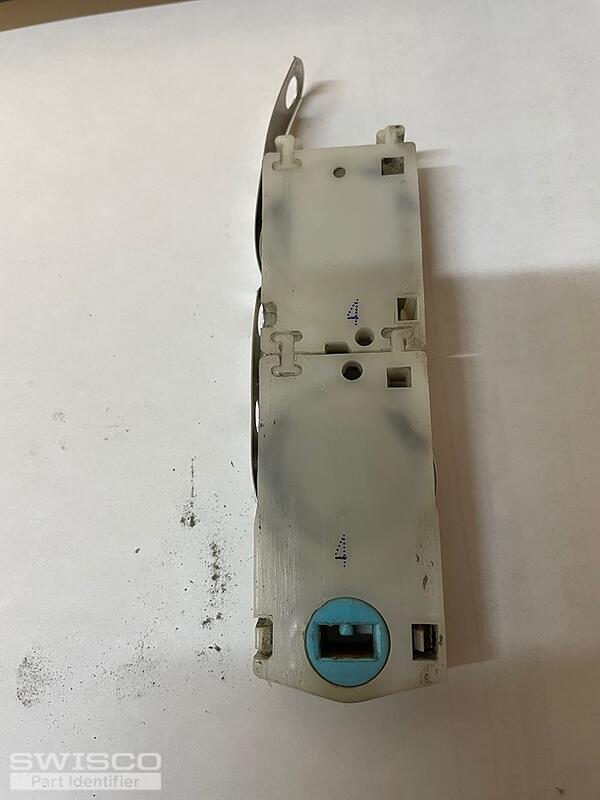

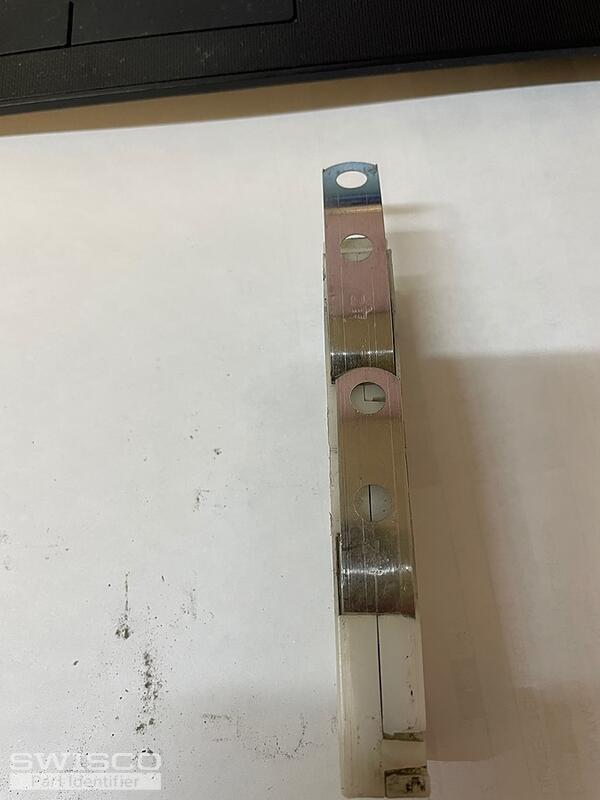

Dual stacked coils that are stamped 4 on each so I'm assuming 4lbs each. Please help me identify and let me know which item to purchase.

Thanks,

John

4 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi, John.

Take a look at our 15-087 shoe, which uses Series 180 coil springs, along with the 15-086 coil housing and S180-4 4 pound coil spring to see if these match up to your original hardware.
